SEMISHARE
SEMISHARE is a wafer prober manufacturer.
NineScrolls provides US & Canada procurement, import, and support for SEMISHARE wafer probe stations.
Product lines
Specifications below are limited to values stated in the manufacturer's official product documentation, and are confirmed with the OEM for the exact configuration before quoting.

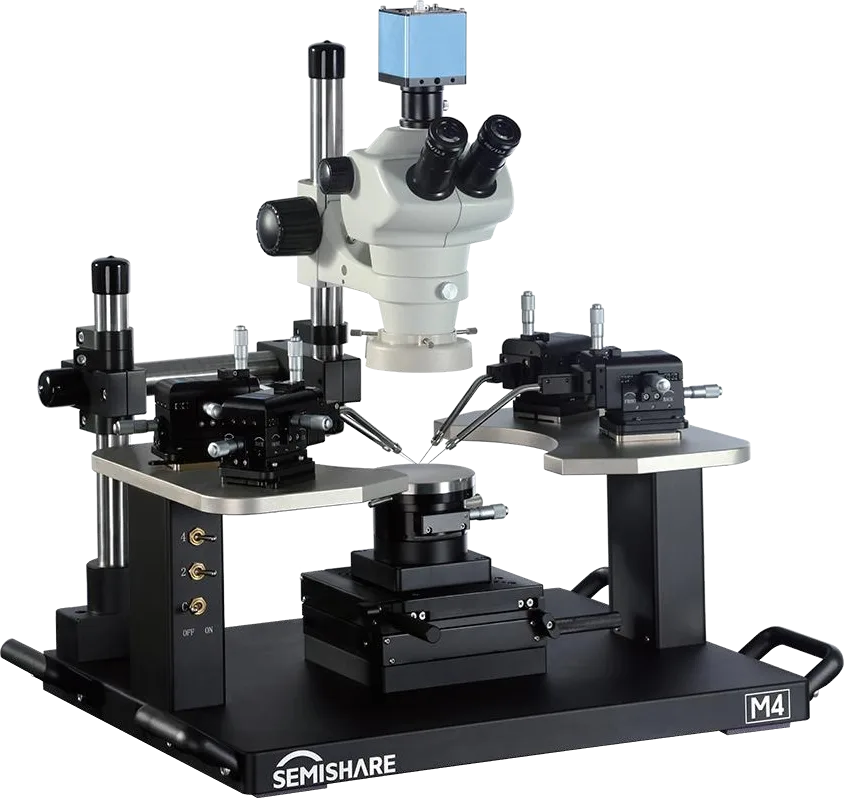

Manual probe stations in M4/M6, E4/E6/E8/E12, and H6/H8/H12 configurations.
| Specification | Value |
|---|---|
| Confirmed models | M4 / M6; E4 / E6 / E8 / E12; H6 / H8 / H12 |
Specifications from official manufacturer brochures; subject to OEM confirmation.

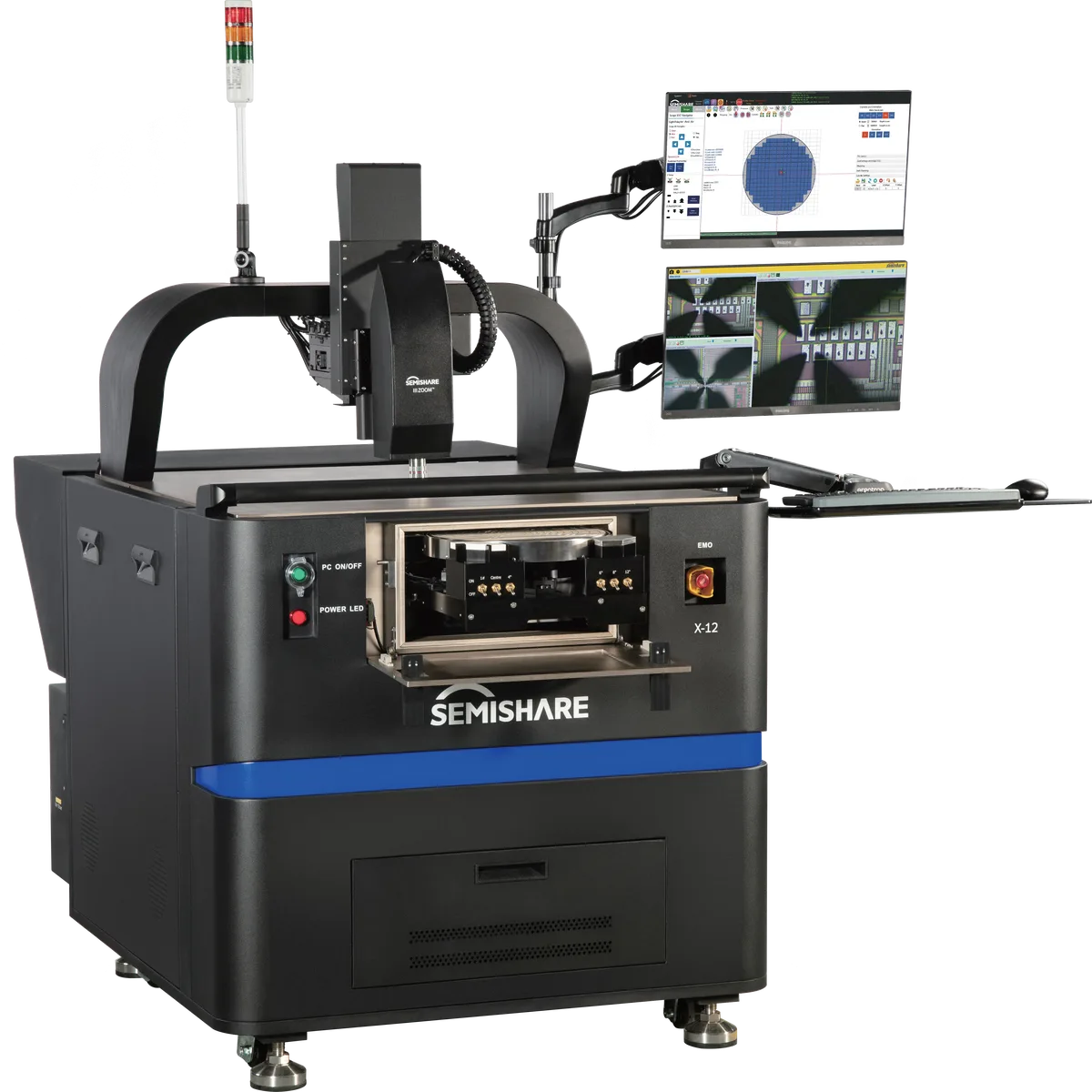

Semi-automatic probe stations integrating electrical, optical, and microwave test functions.
| Specification | Value |
|---|---|
| Models | X6 / X8 / X12 |
| Temperature range | -60°C to 300°C |
| Probe-holder contact accuracy | 0.6μm |
| Probe-holder capacity | Up to 12 |
Specifications from official manufacturer brochures; subject to OEM confirmation.

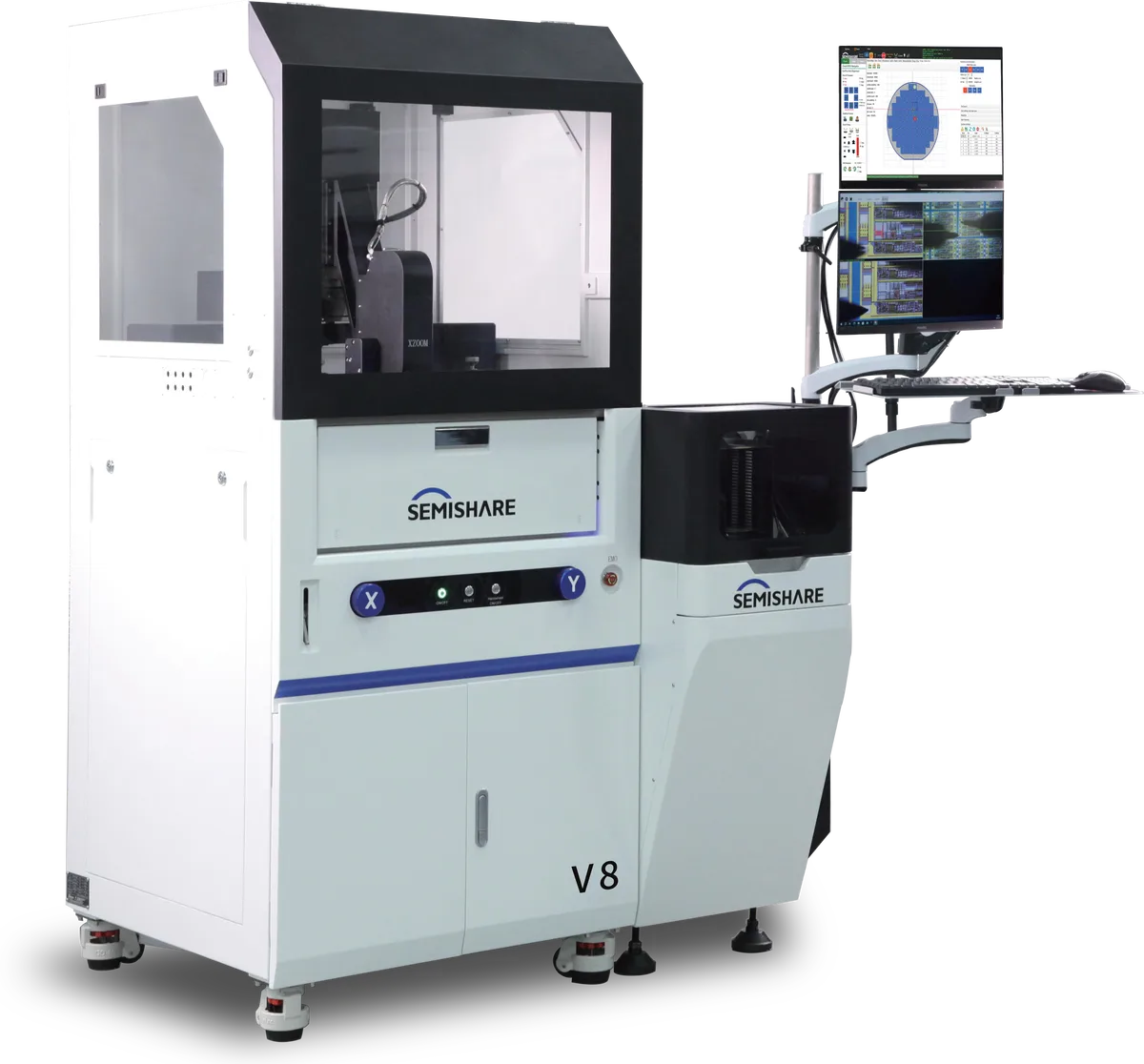

V8 and V12 automatic probe stations.
| Specification | Value |
|---|---|
| Models | V8 / V12 |
| XY repeatability | ±1μm |
| XY absolute accuracy | ±2μm |
| XY resolution | 0.1μm |
| XY maximum speed | 100mm/s |
Specifications from official manufacturer brochures; subject to OEM confirmation.

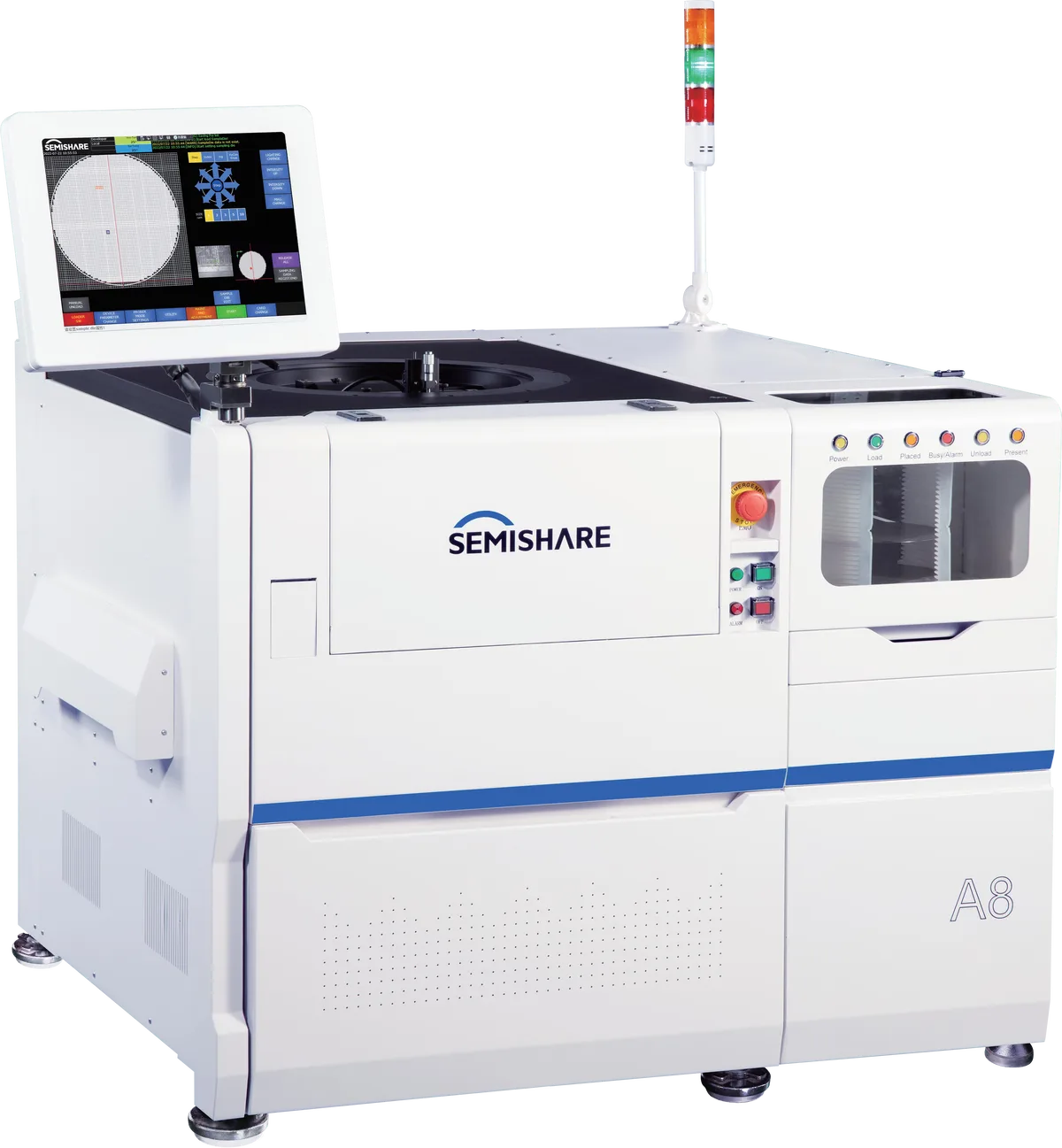

A8, A12, and A12S fully automatic mass production probe stations.
| Specification | Value |
|---|---|
| A8 wafer size | 6-inch / 8-inch |
| A8 XY repeatability | ±1μm |
| A8 XY absolute accuracy | ±2μm |
| A8 weight | 1200kg |
| A12 wafer size | 8-inch / 12-inch |
| A12 XY repeatability | ±1μm |
| A12 XY absolute accuracy | ±2μm |
| A12 weight | 2000kg |
| A12S wafer size | 8-inch / 12-inch |
| A12S XY repeatability | ±0.5μm |
| A12S XY absolute accuracy | ±1μm |
| A12S weight | 2000kg |
Specifications from official manufacturer brochures; subject to OEM confirmation.

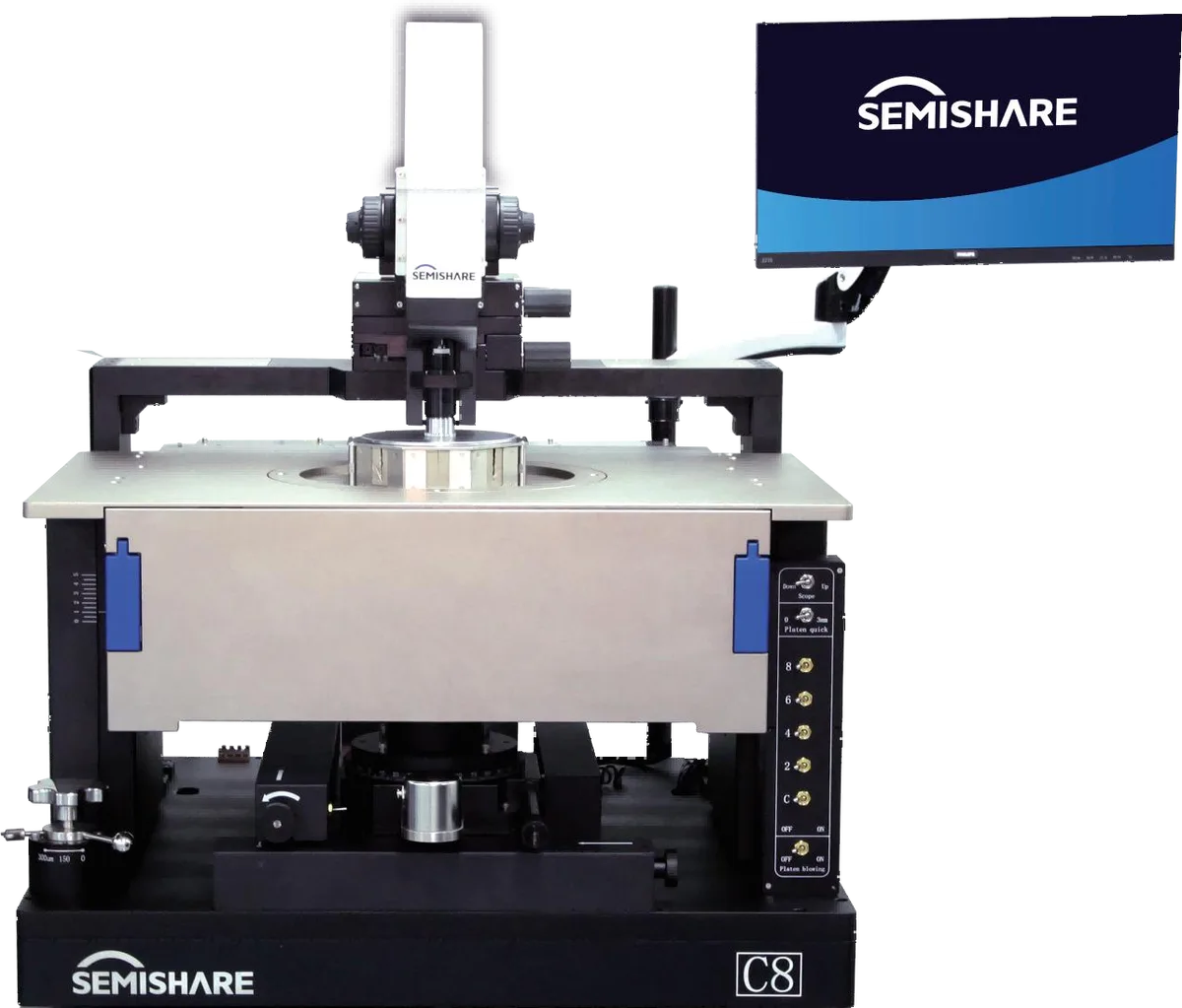

C6/C8/C12 probe stations with high and low temperature control.
| Specification | Value |
|---|---|
| Models | C6 / C8 / C12 |
| EMI shielding | Included |
| Temperature range | -60°C to 300°C |
| Temperature resolution | 0.01°C |
| Cooling method | Liquid nitrogen / air |
Specifications from official manufacturer brochures; subject to OEM confirmation.

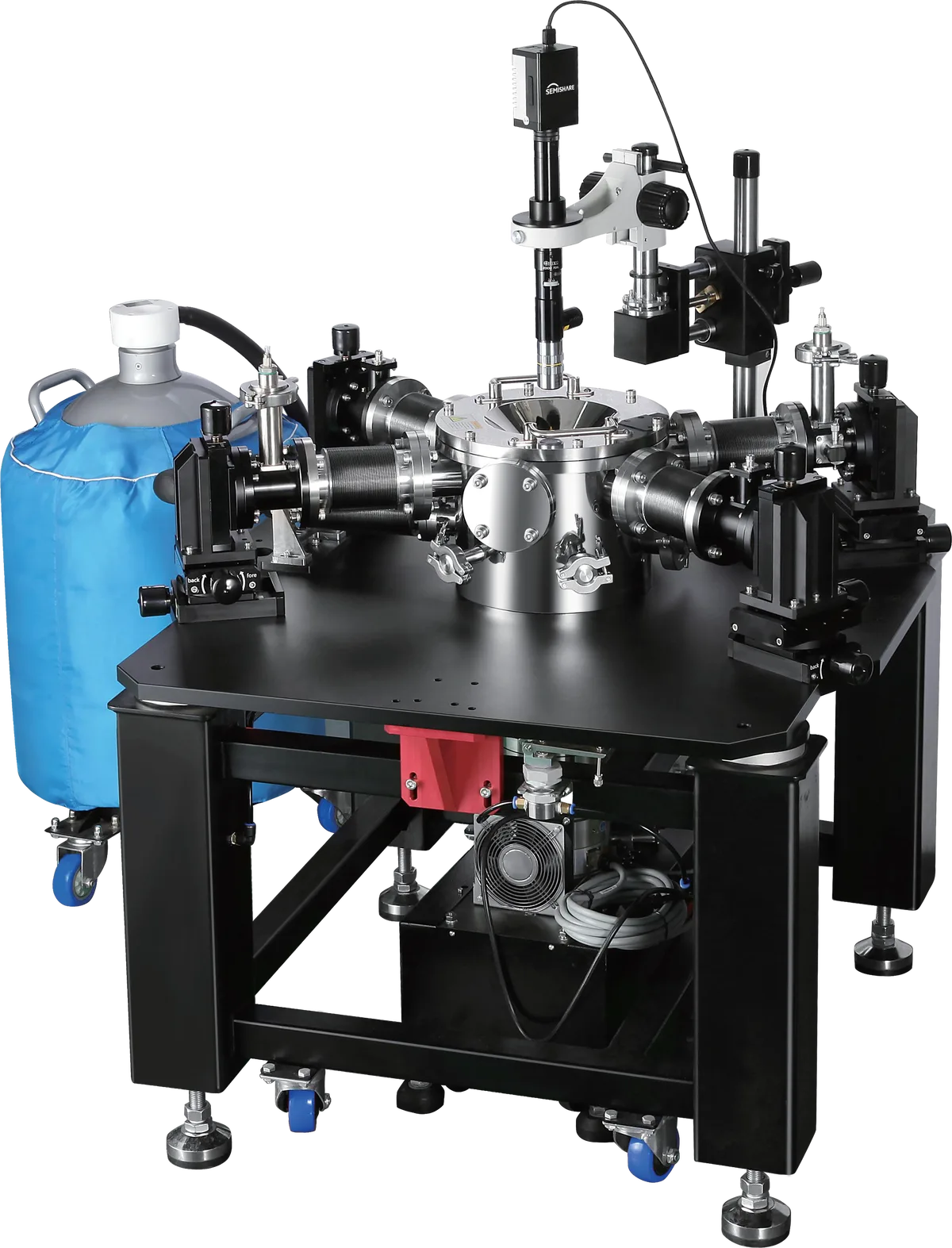

CG-O-2, CG-O-4, and CG-C-2 high and low temperature vacuum probe stations.
| Specification | Value |
|---|---|
| Models | CG-O-2 / CG-O-4 / CG-C-2 |
| CG-O-2 / CG-O-4 temperature range | 77K to 473K (liquid nitrogen) / 4.2K to 473K (liquid helium) |
| Temperature resolution | 0.001K |
| Probe capacity | Up to 6 probes |
| Probe landing accuracy | 2μm |
| Interfaces | Triaxial / SMA / K / Fiber |
Specifications from official manufacturer brochures; subject to OEM confirmation.

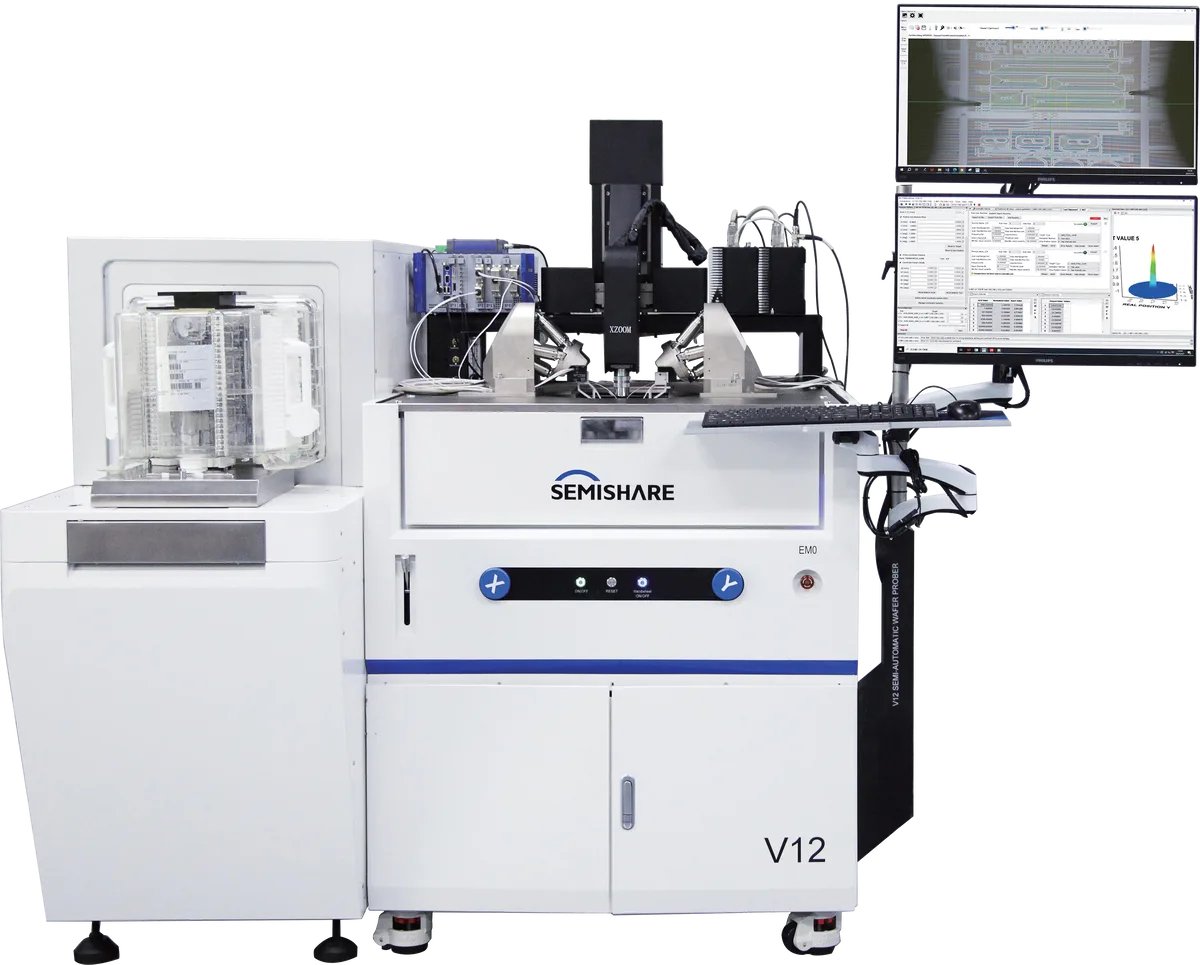

A wafer-level silicon photonics test system built on semi-automatic and fully automatic probe stations.
Detailed specifications on request — contact us and we will confirm the exact configuration for your application with the manufacturer.

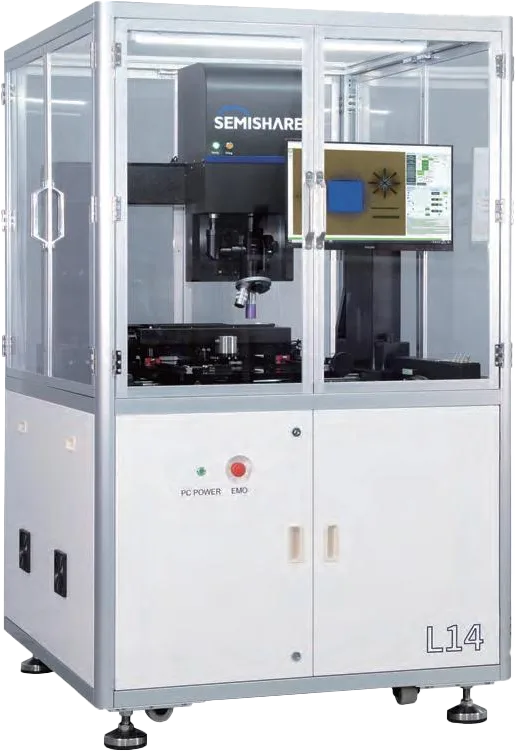

Mask laser cutting and repair equipment for photomask defects.
| Specification | Value |
|---|---|
| Stage XY travel | 14 × 14 inches |
| Z-axis travel | 50mm |
| Objective lenses | 5X / 10X / 20X / 50X optional / 100X optional |
| Optional wavelengths | 1064 / 532 / 355 / 266nm |
| Laser energy | 20mJ @ 1064nm / 6mJ @ 532nm / 8mJ @ 355nm |
| Minimum processing accuracy | 1 × 1μm with 100X objective |
Specifications from official manufacturer brochures; subject to OEM confirmation.
