Cleaning
Remove organic residue before bonding, coating, or analysis.
Oxygen plasmaLow-volume samples
Compact Plasma Cleaner
HY-4L Plasma Cleaner
A compact 4L plasma cleaner for research labs, teaching labs, and low-volume sample preparation.
Configuration
$7,999
RF (13.56 MHz) configuration
Mid-Frequency (40 kHz) $6,499 · RF (13.56 MHz) $7,999
Chamber
4 L
Power
150 / 300 W
Options
RF / MF
Lead Time
3-4 weeks
Surface Preparation
Compact plasma treatment for small-lab workflows.
HY-4L supports cleaning, activation, and sample preparation without the footprint of a full-size plasma system.
Activation
Improve surface energy for adhesion and wetting.
PolymersGlassMetals
Education
A compact platform for teaching and prototyping labs.
4 L chamberBench format
Use Cases
Built for compact lab plasma workflows.
Sample Cleaning
Prepare small substrates and samples before downstream processing.
Surface Activation
Increase surface energy before bonding, coating, or printing.
Teaching Labs
Support hands-on plasma processing education with a compact system.
Specifications
HY-4L configuration window
Representative HY-4L options. Confirm process-specific configuration during quote review.
- Chamber Volume
- 4 L
- Chamber Size
- φ148 mm x 266 mm deep
- RF Frequency
- 13.56 MHz
- MF Frequency
- 40 kHz
- Power
- 150 W RF / 300 W MF
- Gas Channels
- 2
- Control
- PLC + touchscreen
- Process Gases
- O2 / N2 / Ar
- Usable Load
- 220 x 110 x 90 mm
- Pump Speed
- 2.2 L/s
- Footprint
- 630 x 500 mm, 480 mm high
- Electrical
- 208–240 VAC, single-phase, 60 Hz
Applications
Where HY-4L fits
Surface cleaning
Surface activation
Bonding preparation
Teaching labs
Small sample preparation
Research prototyping
Research evidence
Peer-reviewed research

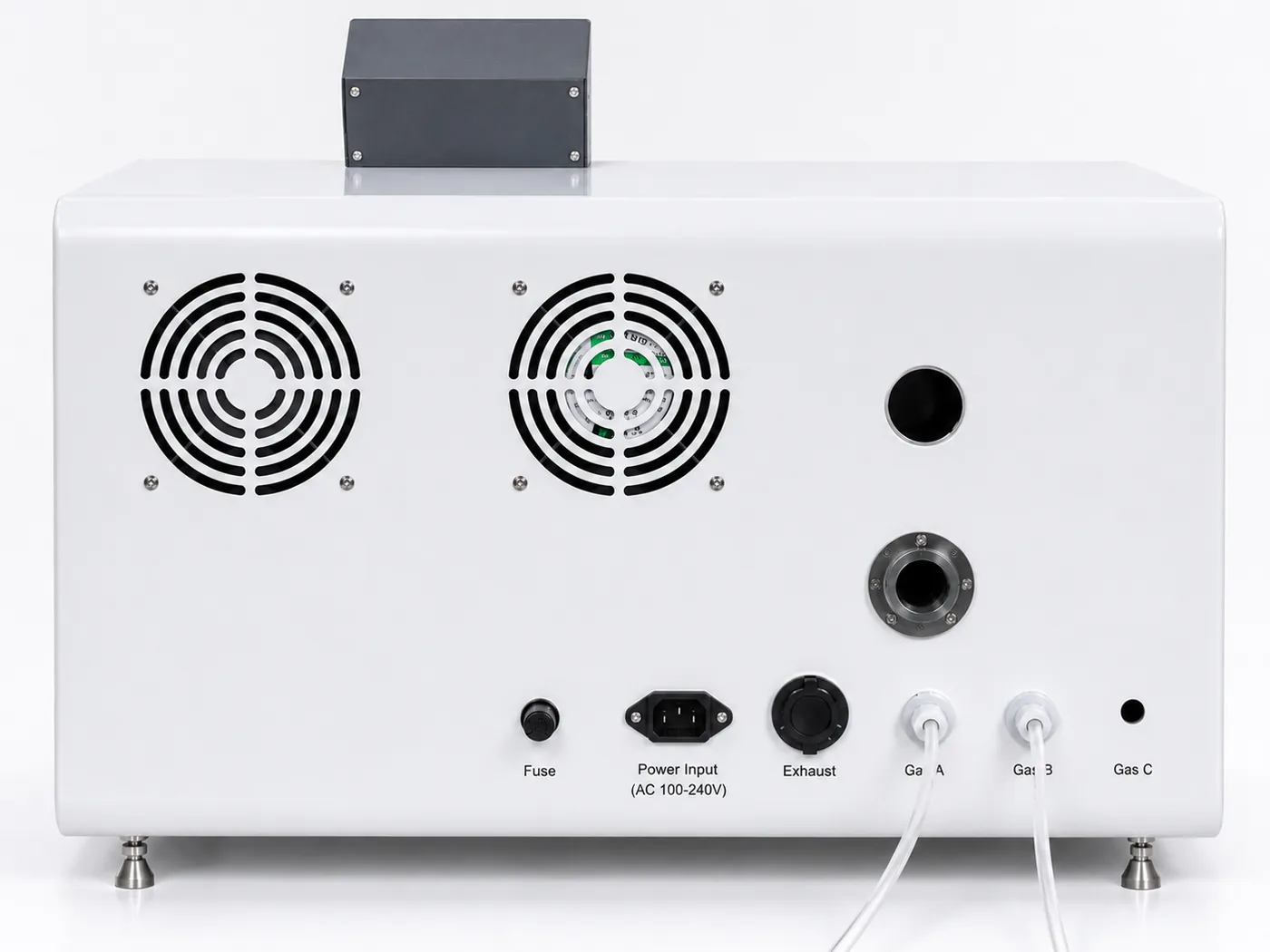

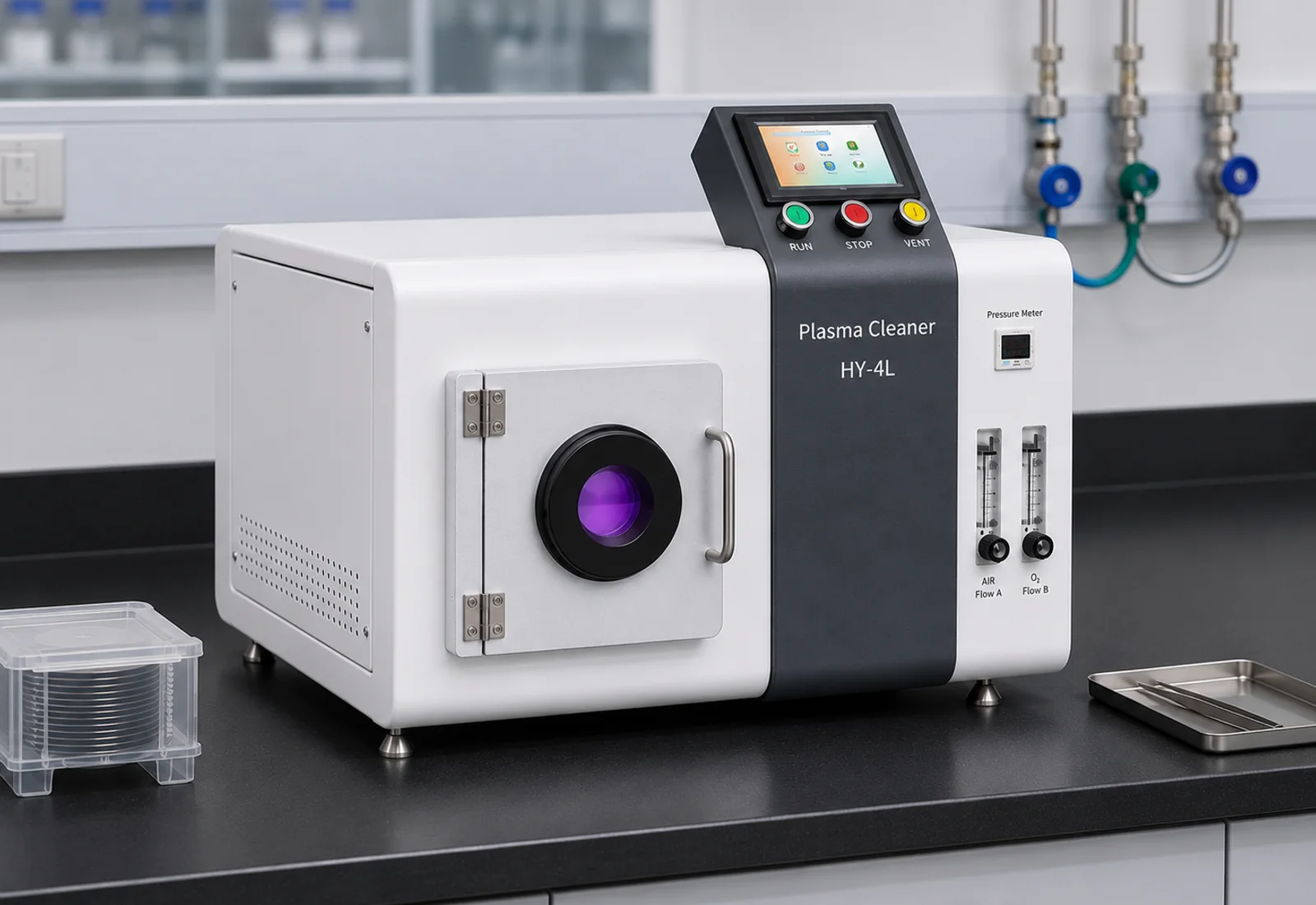

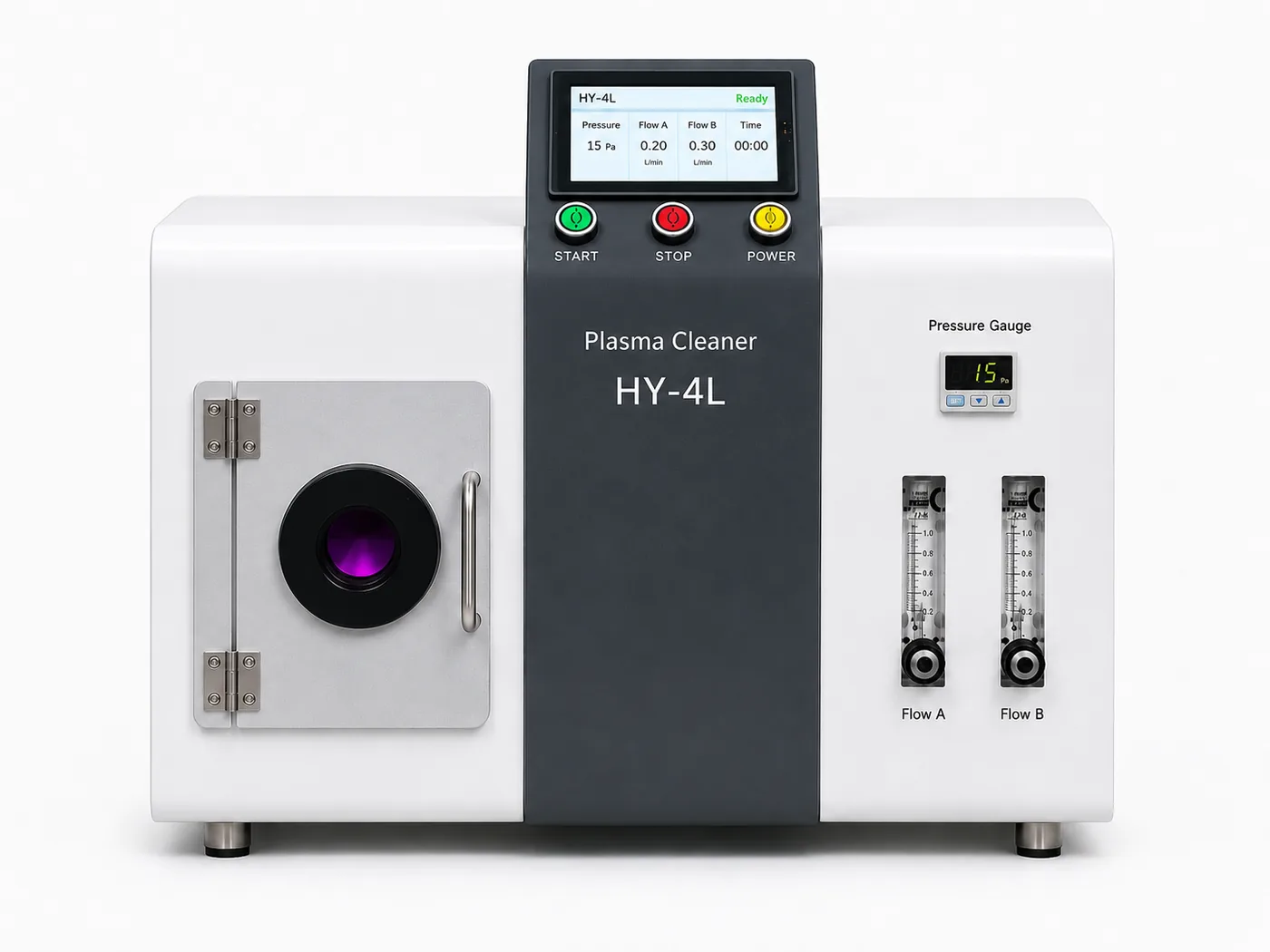

System Views
System Views
Use these actual system photos to review the compact enclosure, service-side access, chamber placement, and bench integration before configuration review.
FAQ
Frequently Asked Questions
Which HY-4L frequency should I choose?
RF is the default for research plasma cleaning and surface activation. Mid-frequency is a lower-cost option for routine sample preparation.
Can HY-4L be purchased directly?
Yes. HY-4L can be ordered directly by configuration, and institutional buyers can also request a budgetary quote for PO-based purchasing.
Ready to Configure
Choose the HY-4L configuration for your lab.
Order directly or request a budgetary quote for institutional purchasing.
