High-Purity E-Beam Films
Localized e-beam heating supports refractory metals, oxides, fluorides, and IR-active materials while keeping the crucible water-cooled.
Equipment Platform
Multi-source e-beam and thermal evaporation for infrared sensors, photonic crystals, optical multilayers, lift-off metallization, and research-grade PVD thin films.

Substrate
Φ6 in x1 flat
Crucible
6x17 cc
Uniformity
≤±5% @ Φ6 in
Vacuum
6.7×10⁻⁵ Pa
Process-first configuration
E-beam evaporator selection starts with source material volatility, melting point, target film purity, lift-off profile, QCM control requirements, substrate fixture, multilayer sequencing, and whether low-melting layers need thermal evaporation in the same chamber.
Localized e-beam heating supports refractory metals, oxides, fluorides, and IR-active materials while keeping the crucible water-cooled.
Integrated thermal-resistance evaporation supports low-melting metals and organic small molecules without moving to a second tool.
QCM endpoint control and multi-pocket sequencing support IR sensors, Ge/ZnS photonic crystals, AR coatings, and multilayer PVD stacks.
Core Process Windows
E-beam and thermal sources in one chamber let labs mix refractory, optical, low-melting, and organic materials in a single PVD workflow.
In-situ quartz-crystal monitoring supports rate and thickness control for optical stacks, sacrificial layers, and device metallization.
Line-of-sight evaporation is well suited to lift-off metallization, MEMS contacts, optoelectronic devices, and quantum hardware layers.
Technical Specifications
Review core platform capabilities for initial process planning. Our engineering team will confirm the final fixture, crucible, pump, monitor, and automation options during quote review.
Applications
Infrared image sensors
Ge/ZnS photonic crystals
UV down-conversion films
Optical AR coatings
Lift-off metallization
Quantum device thin films
Research evidence
Published work using the MEB-600 e-beam evaporation platform · 2 papers
Coronene Enhanced CMOS Image Sensor
Ultraviolet down-conversion coronene film thermally evaporated onto CMOS image sensors to extend their UV response.
Journal of Infrared and Millimeter Waves 2023
Dimension-Confined Growth of a Crack-Free PbS Microplate Array for Infrared Image Sensing
Crack-free PbS microplate arrays for infrared image sensing, with evaporation of PbS/MgO process layers.
ACS Applied Materials & Interfaces 2024
Related Resources
Resource
PVD technique selection across evaporation, thermal, and sputtering workflows
Resource
Mask materials, evaporation, deposition choices, and pattern-transfer integration
Resource
Thin-film deposition, lift-off, and quantum hardware process integration
FAQ
Choose e-beam evaporation for high-purity directional deposition, lift-off metallization, optical multilayers, and refractory or IR-active source materials. Choose sputtering when compound film stoichiometry, magnetic films, or broader step coverage are the primary drivers.

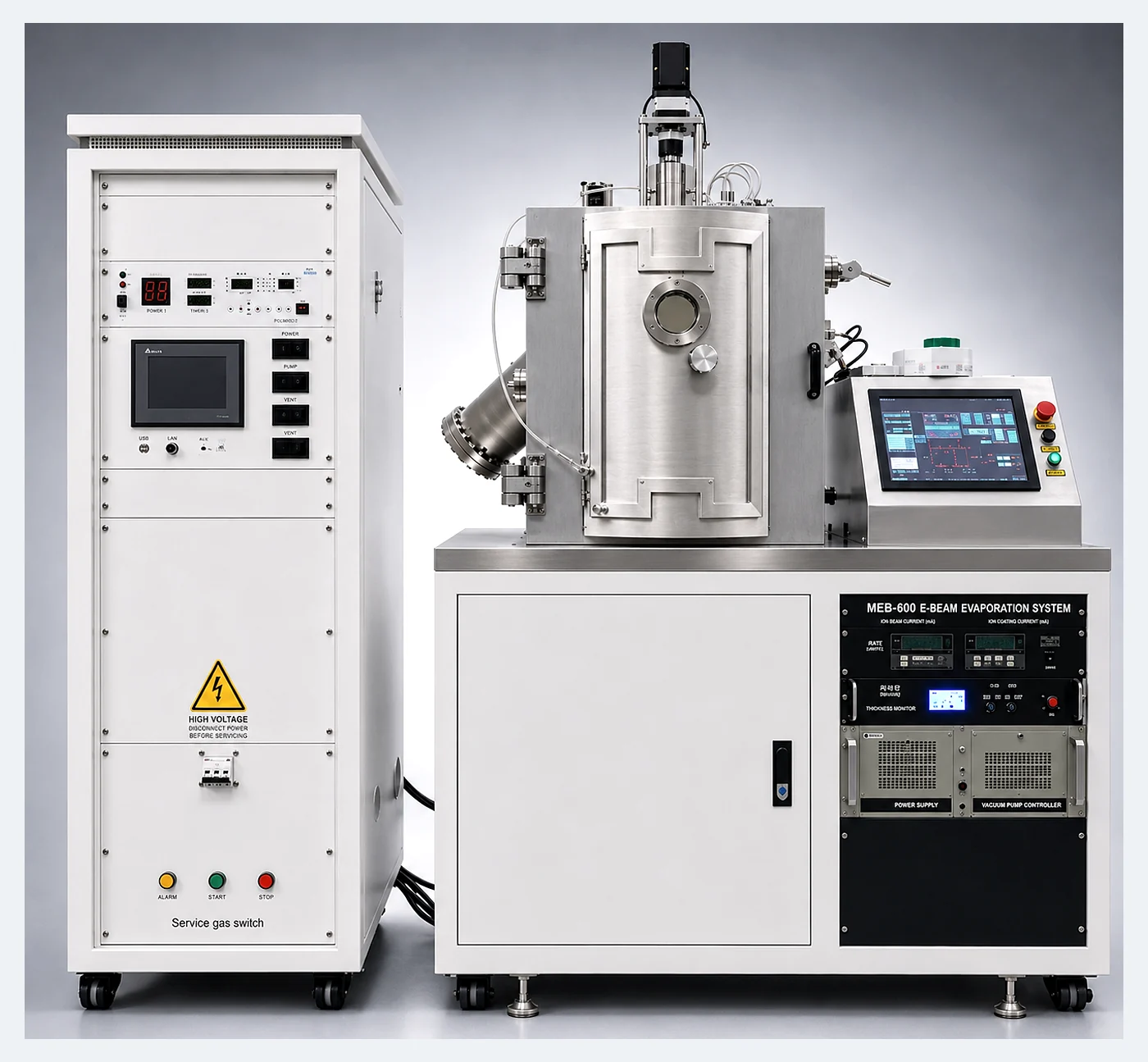

The MEB-600 combines e-beam evaporation and thermal-resistance evaporation in one high-vacuum chamber. The e-gun uses a 6-pocket, 17 cc-per-pocket crucible, allowing sequential materials without breaking vacuum.
The MEB-600 supports a Φ6 in x1 flat substrate holder, a 6-pocket 17 cc e-gun crucible, ~10 kW e-beam power, RT to 300 °C substrate heating, ≤±5% uniformity within Φ6 in, in-situ QCM endpoint detection, 6.7×10⁻⁵ Pa ultimate vacuum, and manual, semi-auto, or full-auto modes.
Request a quote
Share your source materials, substrate size, desired film thickness, QCM requirements, multilayer sequence, lift-off constraints, and timeline.
