Temporary Wafer Bonding and Debonding: Thin-Wafer Processing for Advanced Packaging

By NineScrolls Engineering · 2026-06-14 · 13 min read · Process Integration

Temporary wafer bonding is the rare process step that exists in order to be undone. A device wafer is deliberately glued to a carrier wafer — not to build a final product, but so it can be ground thin and carried through downstream steps it could never survive on its own. Once the fragile work is finished, the bond is released and the carrier walks away. How a permanent bond actually forms belongs to our wafer bonding technologies guide; the via itself and how its tip is revealed belong to our TSV guide. This page owns the part in between: what the carrier system is, the thin-wafer flow it makes possible, and — the genuinely hard part — how you get the carrier back off without wrecking what you just made.

1. What Is Temporary Wafer Bonding?

Temporary wafer bonding is a reversible three-part system, and every part serves the eventual reversal: a temporary adhesive holding the device wafer to its support, a carrier wafer that lends its rigidity to a wafer that has lost its own, and — the part the whole flow is built around — a debond method, the engineered way the assembly comes apart at the end. Leave any one unspecified and you do not have a temporary bond; you have a problem.

The system exists because of a hard physical limit. A device wafer thinned below roughly 100 µm can no longer be handled, vacuum-chucked, or thermally cycled the way a full-thickness wafer can. On its own it warps under its own stress, bows away from flat, and cracks at the slightest handling load. Bonding it to a carrier restores the stiffness it lost on the grinder, so automated tools, chucks, and process chambers can keep treating it as a normal wafer.

What sets a temporary bond apart from a permanent one — the kind surveyed in our wafer bonding hub — is intent. A temporary bond is sacrificial by design: engineered from the first coat of adhesive to be removed cleanly, on schedule, without a trace.

2. Why Thin Wafers Need a Carrier

Silicon is strong in bulk but unforgiving when thin. As back grinding takes a wafer down to tens of microns, the residual stress in the silicon and its surface films no longer has enough material to balance against: the wafer bows, warps into a potato-chip shape, and develops edge cracks that propagate inward. A disc that was flat and robust at full thickness becomes, in a single grinding step, something that fractures at the slightest mishandling.

Every downstream tool assumes what the thinned wafer can no longer honor — a rigid, full-thickness disc. Edge handlers count on the wafer not to flex; vacuum and electrostatic chucks will not seat a bowed wafer, or crack it forcing it flat; lithography needs the surface within depth of focus across the field; thermal steps distort a free-standing thin wafer. None of this equipment will be redesigned for fragile cargo — so the cargo has to be made robust again.

That is the carrier's entire job: to be a temporary stiffener that gives the thinned device wafer back the rigidity the process flow assumes it has. With a carrier bonded behind it, the thin wafer presents to every tool as a normal, flat, handleable wafer — because mechanically, for the duration of the flow, it is one.

But restoring rigidity introduces the contradiction that the rest of this article is built around. The adhesive holding the device wafer to its carrier must survive everything the flow throws at it — the mechanical stress of grinding, the temperatures of downstream processing, the solvents and chemistries of cleans and etches — and then, at the very end, it must let go cleanly, leaving the now-fragile device wafer intact. Hold too well and you cannot release; release too easily and the assembly fails mid-flow. That single tension — survive everything, then release perfectly — is the whole engineering problem of temporary bonding. How you resolve the “release cleanly” half of it is exactly the debonding-method decision this article builds toward.

3. The Thin-Wafer Processing Flow

Thin-wafer processing is a coupled system. Carrier selection, temporary bonding, wafer thinning, TSV reveal, and debonding must be engineered together rather than optimized independently.

With that principle in hand, walk the flow one step at a time — and watch the handling demands, stresses, and yield risks accumulate from start to finish.

Device Wafer. The flow begins with a full-thickness, fully patterned device wafer — robust, flat, easy to handle. This is the last point at which it can survive on its own.

Temporary Bond. The adhesive is applied and the device wafer is joined to its carrier. Bond quality is set here for the entire flow: voids, particles, or thickness non-uniformity become stress concentrators and focus errors later. A defect bonded in now is carried through every step that follows.

Carrier Wafer. The rigid partner that makes the rest of the flow possible. Its flatness, stiffness, and thermal behavior all transfer to the device wafer riding on it, so the carrier is a process variable, not an inert backing plate.

Back Grinding. The exposed back of the device wafer is ground down — commonly to well below ~100 µm. This is the highest-stress mechanical step in the flow: grinding loads, heat, and the sudden loss of bulk silicon all conspire to warp and crack the wafer. The carrier keeps it flat and whole while material is removed.

Stress Relief. Grinding leaves a damaged, stressed layer on the new back surface. A stress-relief step — typically a gentle etch or polish — removes that damage so the residual stress does not later express itself as warpage or cracking. Skip it and the yield cost surfaces downstream, where it is far more expensive.

TSV Reveal. With the wafer thinned, the buried vias are exposed; the reveal itself is covered in our TSV guide and is not re-derived here.

Downstream Integration. The thinned, revealed wafer goes through whatever the product requires — redistribution layers, bumping, onward assembly — with the carrier still presenting a handleable wafer to every tool.

Carrier Removal (Debond). Finally, the carrier is separated from the device wafer and the adhesive is cleaned off. The wafer that emerges is fully processed and more fragile than at any earlier point, which is why this step carries the highest yield risk of all — a separation that goes wrong here destroys a wafer that has absorbed the cost of every step before it.

One caution about reading this sequence: the last two steps are not a fixed cause-and-effect chain, and temporary and permanent bonding are not a sequential replace-pair. In some flows the carrier is removed before downstream or permanent integration, so the freed wafer is handed off thin; in others, integration completes first and the carrier comes off only afterward. The order varies by flow — the map below must not be read as “permanent bond, then debond.”

And notice what the flow quietly disguises. Carrier removal looks like a trivial last item — one box at the bottom of the diagram — yet it is the hardest step in the sequence: getting the carrier back off without destroying a wafer now more fragile than it has ever been. That step is where the next section begins — because the flow is not the decision. It shows what must happen; the real choice is how the carrier comes off, made in the debonding-method selection ahead.

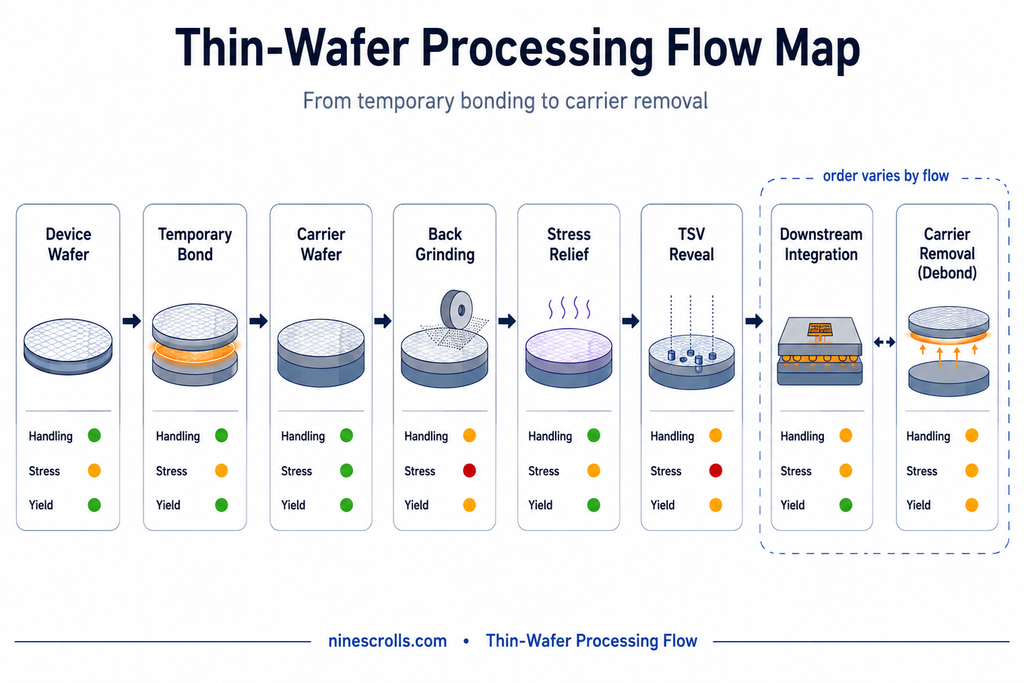

Thin-wafer processing flow: device wafer, temporary bond, carrier, back grinding, stress relief, TSV reveal, downstream integration, and carrier removal (debond), each step tagged with handling, stress, and yield risk
The thin-wafer processing flow — from temporary bond to carrier removal — with each step's handling, stress, and yield risk. The flow is a coupled system: the adhesive chosen at the start must survive every step and still release cleanly at the end.

4. Why Debonding Is the Hard Part

Bonding and debonding are not two equal halves of the same problem — they are wildly asymmetric, and almost all of the difficulty lives on one side. Bonding a full-thickness device wafer to a carrier is the easy half: at that moment the device wafer is still thick, flat, and robust, with bulk silicon to absorb whatever clamping, heat, or chemistry the bonding step applies. It can shrug off insults that would destroy it later. The hard half is releasing it afterward.

By the time debond arrives, everything that made the device wafer forgiving is gone. It has been ground thin and is now fragile; it commonly carries through-vias and backside structures that did not exist at bond time; and it can no longer take the stress, heat, or contamination that bonding could absorb without a second thought. The very same adhesive that had to survive grinding loads and downstream thermal excursions must now let go on command — without cracking the device, without leaving residue, and without imposing stress the thinned wafer can no longer carry.

That inversion is the entire engineering tension. The adhesive is asked for maximum hold during processing and clean release at the end, and those two demands point in opposite directions. Hold harder and release becomes harder; make release easy and the bond risks failing mid-flow. Because the release side is where the wafer is most fragile and the constraints are tightest, it is the debond step — not the bond step — that decides the whole temporary-bonding strategy. The method you pick to resolve that release is the real decision, and it is the one the next section is built to make.

5. Debonding Method Selection

Four debonding methods dominate practice, and the temptation is to treat them as a menu of interchangeable options. They are not. Each one exists to answer a different first question about the thinned device — one dominant constraint that, more than anything else, decides whether that method even belongs in the conversation. Read each of the four below for the constraint it leads with, and the apparent overlap between them disappears.

Laser Debonding

The first question laser debonding answers is mechanical and thermal sensitivity: how little stress and heat can the device tolerate? Laser exists to release a fragile device at room temperature with near-zero applied force. A release layer absorbs laser energy delivered through a transparent carrier, and the bond lets go where the beam has passed — the device itself is never pushed, slid, or baked. Reach for it first when the thinned stack can tolerate neither heat nor mechanical load, because it is among the gentlest release approaches available. What you pay for that gentleness is structural: the carrier must be transparent to the laser wavelength, you need the laser tool itself (capital cost, plus throughput limited by scanning the beam across each wafer), and the absorbed release layer typically leaves residue that has to be cleaned off afterward. The gentleness is real, and so is its price.

Thermal-Slide Debonding

The first question here is thermal budget: how much heat does the device still have left to give? Thermal-slide debonding heats the assembly until the adhesive softens, then slides the carrier off laterally while the stack is still warm. It is mechanically simple, runs at high throughput, and asks for comparatively little tool cost — in pure economics it is often the most attractive option on the table. But it spends thermal budget to work, and it applies shear as the carrier slides. Choose it first when the device can still tolerate elevated temperature with margin to spare. The moment the remaining thermal budget is gone — consumed by earlier steps or by temperature-sensitive structures already on the wafer — it is ruled out, no matter how good its throughput and cost look on paper. Attractiveness does not buy back a thermal budget that has already been spent.

Mechanical (Peel) Debonding

The first question is force tolerance: how much peel load can the stack physically survive? Mechanical debonding separates carrier from device with a room-temperature peel or lift — no heat applied at all, the fastest and most tool-light option of the four, with essentially zero thermal cost. That makes it tempting whenever thermal budget is tight. But it is also the most mechanically aggressive method, because the separation force is delivered straight into the thinned wafer and its films. The entire decision reduces to one question: can the device and its layers take the peel force without cracking or delaminating? Choose it first when the stack is mechanically robust enough to absorb that load — and rule it out the instant the wafer or its films are too fragile to survive being pulled apart, however fast and cheap the method would otherwise be.

Chemical (Solvent) Debonding

The first question is time and material compatibility: can a solvent reach the adhesive, and will it leave the device alone while it works? Chemical debonding uses a solvent to dissolve or release the adhesive, commonly reaching it through a perforated carrier or an edge-accessible path. It is gentle on both fronts at once — little heat, little force — which makes it the natural fallback when neither thermal nor mechanical budget remains to spend. That is its defining position: chemical debonding exists for the case where you can spend neither heat nor force, and must buy gentleness with time instead. The cost moves elsewhere. First to time: solvent access is diffusion-limited, so the release is typically slow. Second to compatibility: the solvent must not attack any material the device exposes, and the edge or perforation geometry must actually let the chemistry reach the adhesive in reasonable time. Choose it first when gentleness is non-negotiable and you can afford the clock — provided the chemistry and the device's exposed materials can coexist.

Step back and the four first-constraints collapse into just two axes. How much thermal budget remains decides between the heat-spending and heat-free methods; how much mechanical stress the device can take decides between the force-applying and force-free ones. Laser answers “neither heat nor force,” thermal-slide answers “heat is fine,” mechanical answers “force is fine,” and chemical answers “neither, and time is available.” That is exactly what the matrix below maps: not a catalog of methods, but a placement of each one in the region where its dominant constraint is the binding one.

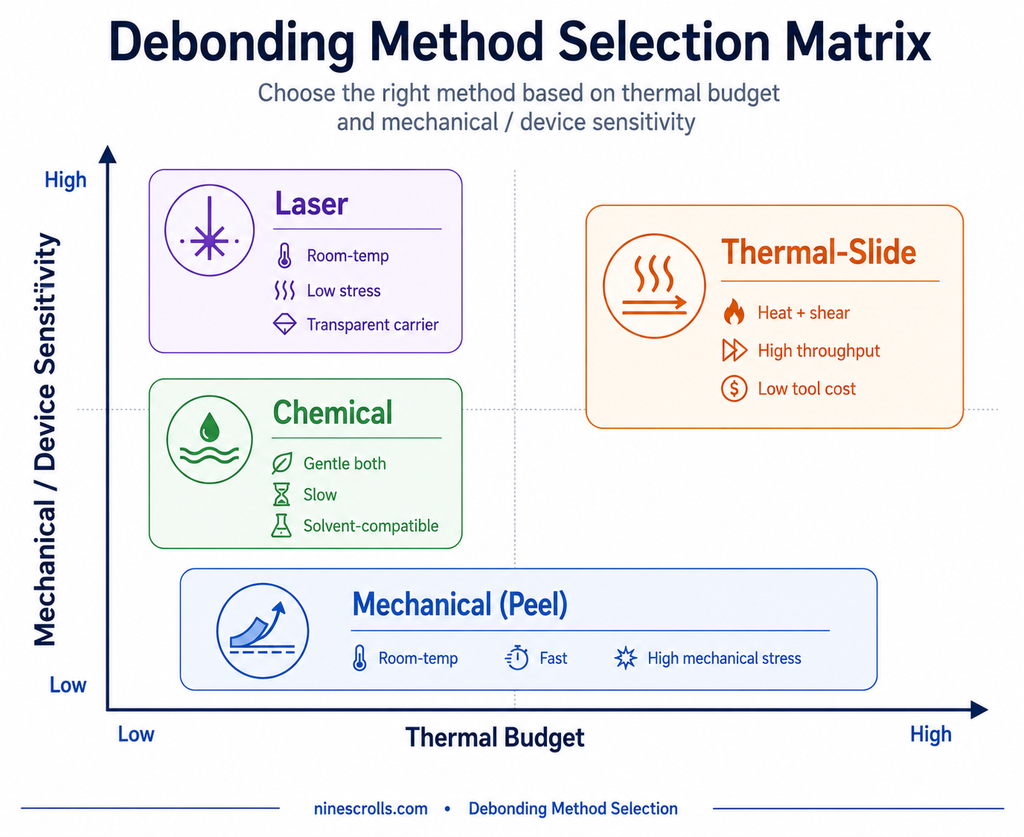

Debonding method selection matrix: laser, thermal-slide, mechanical, and chemical debonding placed by thermal budget and mechanical sensitivity
The debonding method selection matrix: laser, thermal-slide, mechanical, and chemical debonding mapped by thermal budget and device sensitivity. The method follows the two constraints the thinned device imposes.

Read it by locating your device on the two axes first — how much thermal budget it has left and how much mechanical stress it can take — and the method whose region you land in is the one whose first constraint your device already satisfies.

6. Where Thin-Wafer Handling Shows Up

The same carrier-and-debond system surfaces wherever a wafer must be thinner than it can survive on its own. Three device families lean on it most visibly, and the pattern is identical in each: the thinning is the point, and the carrier made it possible.

TSV-Enabled 3D Stacks

Stacking die vertically depends on thinning each wafer far enough that its through-vias can be reached from the back. That degree of thinning is typically impossible to handle without support, so the wafer rides a temporary carrier through grinding and the steps that follow. The carrier is what lets the wafer be taken thin enough for the vias to be revealed at all, then shepherds the fragile result through the rest of the flow. How the vias are formed and exposed is covered in our TSV guide. Without the carrier, the thinning that 3D stacking assumes could not be done.

High-Bandwidth Memory

High-bandwidth memory builds its performance by stacking DRAM dies commonly thinned aggressively so many fit within a tight vertical envelope. Reaching those thicknesses, and keeping the wafers handleable while it happens, is part of what thin-wafer carrier handling provides. The thermal and materials pressures of tall memory stacks are explored in our piece on 16-Hi HBM challenges. The carrier is what made each thinned layer survivable on its way into the stack.

Power and Compound-Semiconductor Devices

GaN and SiC power devices are commonly thinned to improve thermal dissipation and lower electrical resistance through the substrate, and those substrates are often fragile once thin. A temporary carrier makes that thinning survivable, holding the device wafer rigid through grinding and backside processing it could not otherwise tolerate. The benefit is the same seen in 3D and memory stacks: the carrier made the thinning possible.

7. The Enablement Layer

It helps to see advanced packaging as built in layers of function, each answering a different question about how a finished package comes together. Three layers sit close together, and keeping them distinct clarifies where temporary bonding belongs. Through-silicon vias are the vertical-interconnect layer — the conductive path up through a stack. Hybrid bonding is the connection layer — the means by which two surfaces are permanently joined. Temporary bonding is neither: it is the enablement layer, the function that makes the other steps physically possible without ever becoming part of the finished device.

That distinction is worth stating plainly. Temporary bonding rarely appears in the final package, yet it enables many of the manufacturing steps that make advanced packaging possible. The carrier is scaffolding — present for the build, absent from the result.

Seen this way, temporary bonding sits inside a wider flow. The thinned wafers it produces feed a format decision — whether integration proceeds at the wafer or die level, a choice laid out in our wafer-to-wafer vs die-to-wafer comparison. And the surfaces those wafers present must be ready for whatever joins them next, a readiness question explored in surface preparation for bonding.

8. Key Takeaways

Frequently Asked Questions

What is temporary wafer bonding?

Temporary wafer bonding is a reversible process that attaches a device wafer to a carrier wafer with an engineered adhesive, so the device wafer can be thinned and processed without breaking. Unlike a permanent bond, it is designed from the start to be released cleanly once the fragile work is done. The carrier is scaffolding, not part of the finished device.

What is wafer debonding?

Wafer debonding is the release step at the end of the temporary-bonding flow, where the carrier is separated from the now-thinned device wafer and the adhesive is cleaned off. Four method families dominate practice: laser, thermal-slide, mechanical (peel), and chemical (solvent) debonding. Each leads with a different constraint, and the right one depends on what the thinned device can still tolerate.

Why use a carrier wafer?

A device wafer thinned to tens of microns can no longer be handled, chucked, or thermally cycled like a full-thickness wafer — it bows, warps, and cracks. A carrier wafer bonded behind it restores the rigidity it lost on the grinder, so standard tools keep treating it as a normal, handleable wafer for the rest of the flow.

What is the difference between laser and thermal-slide debonding?

Laser debonding releases the bond at room temperature with near-zero applied force by passing laser energy through a transparent carrier into a release layer — gentle, but it needs a transparent carrier and a dedicated laser tool. Thermal-slide debonding instead heats the assembly until the adhesive softens, then slides the carrier off under shear; it is simpler and offers higher throughput, but it spends thermal budget the device may not have to give.

Can temporary bonding be used with hybrid bonding?

Yes. Temporary bonding is commonly used to support thin wafers before downstream bonding operations. The two are frequently sequenced together — and often confused — because both involve joining wafers, even though they serve opposite purposes. The bonding mechanism itself — how the permanent interface forms — is outside this article's scope; see our hybrid bonding comparison and the wafer bonding hub.
