Wafer-to-Wafer vs Die-to-Wafer: When Does Each Integration Strategy Win?

By NineScrolls Engineering · 2026-06-12 · 11 min read · Process Integration

By the time an advanced package reaches this decision, most of its architecture is already fixed. You have chosen the interconnect — copper-to-copper pads or micro-bumps — and you have chosen when in the flow the vias get made. The mechanics of how surfaces actually join belong to our wafer bonding technologies guide; this article takes them as solved. One decision remains, and it is the last one standing: bond complete wafers face-to-face, or place known-good dies one at a time onto a target wafer? The question this page exists to answer is sharper than a pros-and-cons list: when do you lose the choice of format, and when do you keep it?

1. The Quick Answer: W2W or D2W?

If you need the verdict before the framework, here it is in three lines.

The rest of this article turns those verdicts into a framework you can apply in order — starting with the constraint that decides before you do.

2. The Selection Framework

Wafer-to-wafer is not the default. It is a privilege earned by matched geometry and high yield. When either condition breaks, the industry falls back to die-to-wafer.

That principle unpacks into four gates, applied in order. The order matters: the early gates are hard constraints that no business case can override, while the later ones are economics that a business case can argue. Most products never reach the later gates — they exit at the first or second and land on die-to-wafer before cost modeling even begins.

Gate A — Geometry

Wafer-to-wafer bonds two complete wafers face-to-face, which means the two designs must tile identically: the same die size, the same stepping across the wafer, layouts mirrored so that every die on the top wafer lands precisely on its partner below. There is no mechanism for adjustment — the wafer is bonded as a whole, and every die pair inherits whatever the full-wafer layout dictates.

This is why a geometry mismatch is not a disadvantage to be weighed against W2W's benefits. It is a physical disqualification. If the dies differ in size, or the reticle layouts cannot be made to coincide, there is no degree of yield improvement or cost concession that reopens the option — which is exactly why this gate runs first. Heterogeneous products — dies of different sizes, built on different process nodes, often sourced from different vendors — exit here, before yield or throughput is ever discussed. A logic die and a memory die that were never designed to the same footprint cannot be wafer-bonded to each other, full stop.

In practice, this single gate decides more real products than the other three combined.

Gate B — Yield Economics

Survive Gate A and the question becomes statistical. Wafer-to-wafer bonding is blind: every die on wafer A bonds to whatever sits opposite it on wafer B, functional or not. The stack yield compounds across both wafers, so one wafer's defects consume good dies from the other side — and every good die consumed by a bad partner is the direct, unavoidable cost of whole-wafer parallelism.

Die-to-wafer restores choice. Dies are tested before assembly, and only known-good dies are placed — the same known-good-die logic that governs the interconnect decision, surfacing here at the format layer. The question this page asks is the format version of it: is die yield high enough, and are the dies cheap enough, that blind pairing destroys less value than per-die test and handling adds? For high-yield, small, uniform dies — the image-sensor profile — the answer is commonly yes: the occasional sacrificed die costs less than testing and placing millions individually. For large, expensive, or yield-immature dies, the arithmetic inverts decisively. One scrapped good die on a leading-edge logic wafer can outweigh an entire wafer's worth of handling cost, and the product exits to die-to-wafer here.

Gate C — Throughput

Gate C asks whether the parallelism wafer-to-wafer preserves is actually worth what Gates A and B demanded to keep it. A single aligned wafer bond joins every die pair on the wafer simultaneously: one alignment, one bond, thousands of stacks. Die-to-wafer replaces that single act with thousands of pick-and-place operations, each adding serial time, each a particle-exposure event, and each carrying its own alignment step with its own error budget.

At image-sensor-like volumes — hundreds of millions of units of one design — whole-wafer parallelism is decisive economics, and a product that has already survived Gates A and B will typically take it. At chiplet volumes, with high-value dies assembled in smaller quantities, the calculus reverses: serialization is simply the price of the selectivity that Gate B bought, and it is usually a price worth paying. Note what this gate is not: it is not a tiebreaker that rescues a product that failed earlier. Throughput only votes among survivors.

Gate D — Maximum Density (the bonus gate)

The fourth gate is explicitly not an entry criterion — it is the prize. Wafer-to-wafer aligns once, at wafer level, with lithographic-class registration, and that single alignment is preserved across every die pair on the wafer. The result is the finest interconnect pitch the format can achieve. Die-to-wafer must re-align for every individual die, and each placement lands coarser than what one wafer-level alignment delivers.

But this advantage only matters after a product has survived Gates A through C. Products operating at extreme interconnect pitch — HBM-class memory stacks, high-end logic-on-logic — still commonly land on die-to-wafer, because they failed Gate A or Gate B long before density was considered: mismatched die sizes, or dies too valuable to pair blind. Stated plainly: fine pitch does not imply wafer-to-wafer; surviving the first three gates does. Density is what W2W pays out to qualifiers, never the reason a product qualifies.

So the procedure is mechanical: run the gates in order, and the first failure routes the product to die-to-wafer — no appeal, no weighting. Surviving all four, and wanting the density that Gate D pays out, is precisely what the opening principle means by a privilege earned.

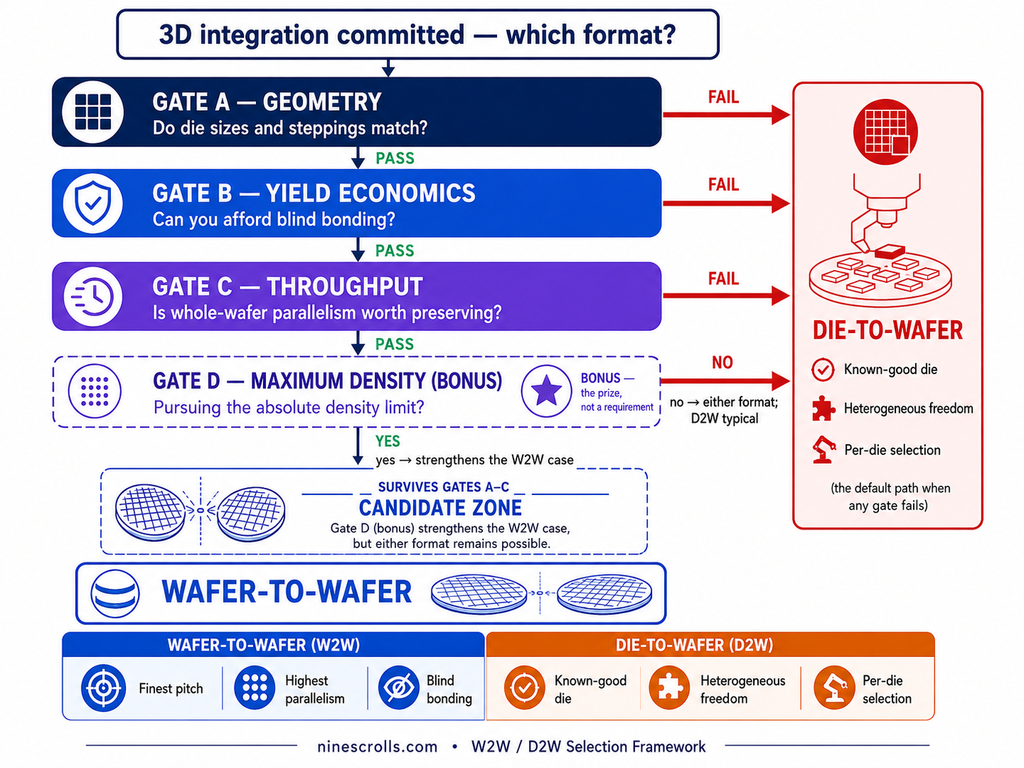

W2W versus D2W selection framework: four gates in order — geometry match, yield economics, throughput, and maximum density as a bonus gate — with fails routing to die-to-wafer and survivors qualifying for wafer-to-wafer
The W2W/D2W selection framework: four gates in order — geometry, yield economics, throughput, and the density bonus. The first failure routes to die-to-wafer.

Read the figure top to bottom: each hard gate's fail arrow exits to die-to-wafer; only products that survive the hard gates can make a credible wafer-to-wafer case, and Gate D strengthens that case when maximum density matters.

3. Why W2W Delivers the Highest Density

Strip away the qualifiers and wafer-to-wafer’s density advantage reduces to one structural fact: alignment happens once. The two wafers are registered to each other globally, with lithographic-class precision, and that single registration is inherited by every die pair on the wafer. There is no per-die placement step, so there is no per-die placement error to budget for — whatever accuracy the wafer-level alignment achieves, thousands of die pairs receive it simultaneously. Die-to-wafer must re-establish alignment for every individual placement, each with its own tolerance, and the compounded budget typically lands coarser. Wafer-level alignment is one reason W2W has been important in the earliest high-density bonded products: the format removes the very step where placement error is born.

The economics compound the physics. One aligned bond joins every stack on the wafer in a single act, so the cost of that act is amortized over thousands of stacks at once. Equipment time, handling, and inspection scale per wafer rather than per die, which is why, at high volume, the per-stack cost of wafer-level assembly typically undercuts any serial alternative. Parallelism is not a side benefit of the format; it is the format.

The living proof needs one line: stacked image sensors are bonded wafer-to-wafer in enormous, uniform volumes, and have been for years. One caution belongs here rather than later: a whole-wafer bond stakes the entire wafer pair on surface readiness, which is why surface preparation carries wafer-level consequences in this format. The privilege pays out density and throughput together — but only to products that already qualified at the gates above.

4. Why D2W Dominates Heterogeneous Integration

Everything wafer-to-wafer’s geometry privilege forbids, die-to-wafer permits. Dies of different sizes can share one target wafer. Dies built on different process nodes — a leading-edge compute die beside mature-node I/O — can be assembled into one stack. Dies from different vendors, designed years apart to different reticle layouts, can meet for the first time at assembly. None of this requires the two designs to know anything about each other’s wafer-level geometry, because the donor wafer’s layout stops mattering the moment its dies are singulated.

The second freedom is selection. Because dies are placed individually, they can be tested individually first, and only known-good dies committed to the stack — the known-good-die picking that whole-wafer bonding structurally cannot offer. For expensive dies, that single capability often outweighs every throughput argument on the other side.

The chiplet reality turns these freedoms from a niche into a default. Disaggregation is heterogeneity by design: the entire point of splitting a monolithic design into chiplets is to build each function on the process best suited to it, at the die size that yields best, sourced from whoever builds it best. A product conceived that way fails Gate A by intention, before any assembly engineer is consulted — which is why the chiplet era is structurally a die-to-wafer era, typically not by preference but by construction. One naming note for navigation: in foundry vocabularies the same assembly is often labeled CoW, short for chip on wafer — the FAQ below addresses whether anything beyond the name actually differs.

5. Application Snapshots

Three products mark the two poles of the framework and the contested middle between them.

CMOS Image Sensors — the purest W2W case

A stacked image sensor is the framework’s perfect student: two identical wafers, one design, manufactured at enormous volume on mature, high-yield processes. Geometry matches by construction, blind pairing is cheap when both wafers yield well, volume makes whole-wafer parallelism decisive, and pixel-level interconnect density collects the bonus gate’s prize. Image sensors pass all four gates, which is why they are typically cited as the format’s original mass-production home. The wafer-level processes that make this possible are surveyed in our wafer bonding technologies guide — here it is enough that one product passes every gate cleanly.

Chiplets — the purest D2W case

Chiplet-based products are the opposite pole: heterogeneous by definition, they exit the framework at Gate A before economics is ever consulted. Different die sizes, different nodes, often different vendors — there is no second wafer to match, so the format question never really opens. What remains is the assembly problem die-to-wafer was built for: testing high-value dies individually and committing only known-good ones to a stack whose total cost makes every placement count. The interconnect side of these same products — how the chosen dies actually connect — is the subject of our hybrid bonding vs micro-bump comparison.

HBM — the engineering compromise

Stacked DRAM sits between the poles. Its dies are uniform, so Gate A passes — but a stack multiplies many die yields together, and that compound arithmetic applies brutal Gate B pressure, while bandwidth demands pull density upward at Gate D. Production has typically resolved the tension toward die-level stacking pursued with W2W-class density ambitions — a compromise whose thermal and materials challenges only sharpen as stacks grow taller.

6. The Complete Decision Chain

This article closes a chain of five decisions, and the order they appear in this series is the order they are made in practice. First, surface readiness: whether two surfaces are fit to join at all is settled by surface preparation, long before any format question is asked. Second, via timing: when the vertical connections are built relative to the device layers — the question our TSV guide owns — fixes much of the process flow around the bond. Third, bonding method: the wafer bonding technologies hub settles how the joining itself is performed. Fourth, integration format — this page: whole wafers face-to-face, or singulated dies onto a target wafer. And fifth, when something in the chain underperforms, diagnosis: failure analysis closes the loop by telling you which earlier decision to revisit.

Each decision constrains the next, and the chain runs in one direction only. Surface condition limits which joining methods are realistic; via timing constrains the order of the stack; the chosen method bounds the pitch worth pursuing; and the integration format inherits every one of those constraints at once. By the time W2W-versus-D2W is asked, the answer is typically half-determined — which is exactly what the four gates formalize.

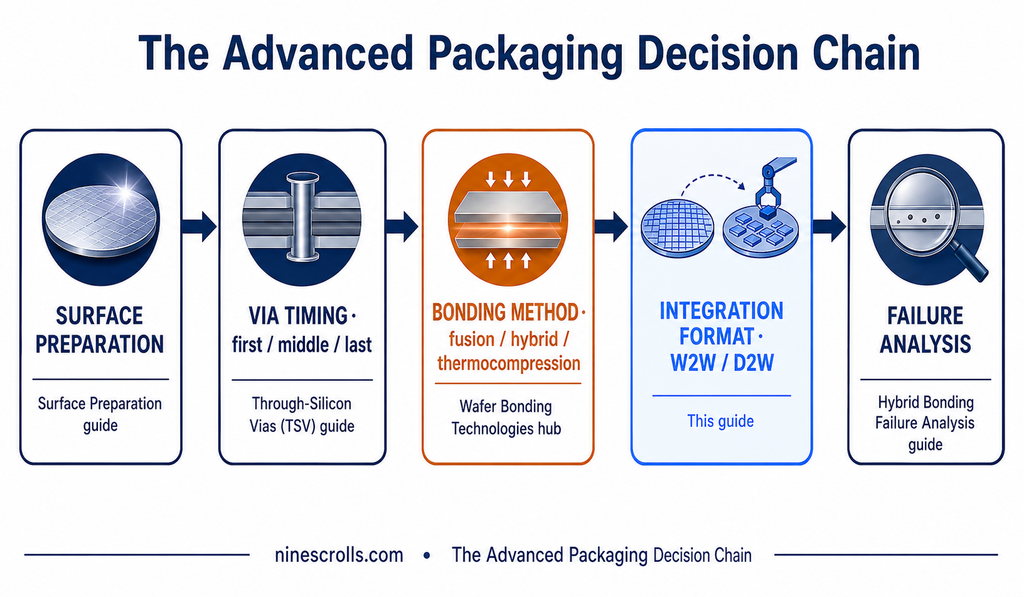

The Advanced Packaging decision chain: surface preparation, via timing, bonding method, integration format, and failure analysis, each owned by its own guide
The Advanced Packaging decision chain: surface preparation → via timing → bonding method → integration format → failure analysis — each step owned by its own guide.

Follow the chain left to right and this page is the second-to-last stop: the format decision, made with every upstream constraint already in hand.

7. Key Takeaways

Frequently Asked Questions

What is the difference between wafer-to-wafer and die-to-wafer bonding?

Wafer-to-wafer (W2W) bonding joins two complete wafers face-to-face, so every die pair is assembled simultaneously and both designs must share identical die size and layout. Die-to-wafer (D2W) bonding singulates one wafer first, then places individual dies onto a target wafer one at a time, allowing different die sizes and pre-bond testing. W2W typically maximizes density and throughput; D2W maximizes flexibility and yield control.

Why doesn’t everyone use wafer-to-wafer bonding?

Because the format demands two things most products cannot supply. First, matched geometry: both designs must share the same die size and wafer layout, which heterogeneous products never do. Second, blind pairing: W2W bonds every die to whatever sits opposite, functional or not, so it tolerates no die selection. Products built from expensive dies typically need known-good die (KGD) testing before assembly — the same economics explored in our hybrid bonding vs micro-bump guide — and only die-to-wafer offers it.

Is die-to-wafer the same as chip-on-wafer (CoW)?

Essentially, yes. Chip-on-wafer (CoW) and chip-to-wafer (C2W) are vendor and foundry namings for the same operation: singulated dies assembled onto an unsingulated target wafer. Specific flows differ in detail — carrier handling, placement sequence, whether dies are attached collectively or one by one — but the selection logic this article describes is identical. If a flow places tested dies onto a wafer, the four gates apply to it regardless of name.

Can one product use both?

Yes, and complex packages often do. The gates run per interface, not per product: each bonded interface in a package is its own geometry, yield, and density problem, and can typically resolve to its own format. A device might carry a wafer-bonded layer pair in one part of its stack and individually placed dies elsewhere. The format decision is local; only the product architecture is global.
