TSV Reveal: Exposing Through-Silicon Vias from the Wafer Backside

By NineScrolls Engineering · 2026-06-14 · 9 min read · Process Integration

A via etched and filled from the front of the wafer is a dead-end well in the silicon — copper that stops partway down, going nowhere. It becomes a through-silicon via only when the wafer's backside is removed to expose the buried copper tip. That exposure is the reveal. How the via itself is defined and where it sits in the integration flow belongs to our TSV guide; the handling that holds the wafer through this work belongs to our temporary bonding guide; the frontside etch that formed the via in the first place belongs to our DRIE guide. This page owns one thing: the reveal is fundamentally a stopping problem.

1. Why Reveal Exists

A via formed and filled from the front of the wafer is blind. Its copper sits inside full-thickness silicon, terminating partway through — there is no path out the back, and so the structure carries no signal from one side of the wafer to the other. It is, electrically, a stub. Whatever care went into etching, lining, and filling that feature, the result is still buried metal in a thick silicon wafer.

How that via came to be — how the opening was etched, how the barrier and copper were deposited, how the fill was annealed — is the subject of the parent TSV guide, and we do not re-derive it here. What matters for the reveal is the state we inherit: a filled, buried column whose lower end is sealed under silicon.

Reveal is the sequence of backside operations that takes that silicon down until the wafer surface meets the via, exposes the copper tip, and leaves it standing clear of the surrounding material so it can be connected. In doing so it converts a buried feature into a functional vertical interconnect — a true through-silicon via that links the front of the wafer to the back. Everything that follows in this page is about reaching, and then holding, the plane where that copper first appears.

2. From Thinning to the Reveal Plane

The reveal begins by getting close. Backside grinding — backgrind — removes the bulk of the wafer, taking a thick silicon wafer down toward the depth where the buried via tips wait, with the wafer held on a temporary carrier throughout. The question this step owns is purely one of proximity: how do we bring the backside surface near the via tips?

Grinding answers that well and only that. It is a coarse, high-removal operation — excellent at clearing the gross thickness, but blunt. It cannot stop precisely on the via tips. Pushed too far it would abrade the copper itself; held back to a safe margin it leaves the tips still covered. So grinding is deliberately stopped short, with the surface brought close to the buried tips but with a thin remainder of silicon still standing over them.

That remainder is the gap the rest of the reveal exists to cross. Grinding gets us from full thickness to "near the tips"; what is left is the distance from "near the tips" to the exact plane at which the copper is exposed. Crossing that last span is not grinding's job — it demands a gentler, more selective tool, which is where the next step begins.

3. The Reveal Etch (Silicon Recess)

The reveal etch answers the next question: how do we arrive precisely at the plane that exposes the copper? Grinding left a thin sheet of silicon over the tips; a controlled plasma silicon recess removes it. The etch chemistry is chosen to attack silicon while leaving the copper and its surrounding barrier liner essentially untouched, so that as the silicon surface drops, the metal does not. The result is copper tips that protrude above a freshly recessed silicon plane.

This is a backside silicon recess, not a via-defining etch — it carves no new feature, it simply lowers a surface until the existing metal stands proud. Two properties make it demanding.

The first is selectivity. The etch has to remove silicon far faster than it removes copper or the liner. If that ratio is too low, the same process that uncovers the tips also consumes them, eroding the very protrusion the reveal is meant to produce. A high silicon-to-metal selectivity is what lets the etch clear the last silicon and then effectively stall against the copper, leaving the tips intact and standing.

The second is across-wafer uniformity. The recess has to reach the same depth at the wafer edge as at its center. Buried via tips sit at a common plane, so an etch that runs deeper in one region than another will expose vias there while tips elsewhere remain covered. Uniform removal across the full diameter is what makes a single recess depth expose every via together, rather than some early and some not at all. Selectivity and uniformity, together, are what turn a blanket silicon etch into a controlled arrival at the reveal plane.

4. Passivation and CMP

Once the copper tips stand exposed above the recessed silicon, the question turns from reaching the plane to preserving it. Two operations follow, and this section owns both: protecting the newly bared surface, and making it flat.

Passivation comes first. A backside dielectric is deposited as a blanket layer over the revealed surface, covering both the recessed silicon and the protruding copper. Here passivation means exactly this — a backside dielectric laid over exposed copper — not anything to do with how the via was originally etched. Its role is to protect and electrically isolate the bare copper, so the tips are no longer sitting open against bare silicon or the surrounding environment.

CMP comes second. Chemical-mechanical polishing planarizes the stack: it abrades the deposited dielectric and the copper tips down to a single flat plane, removing the dielectric capping the metal and leaving copper and dielectric coplanar. The objective is planarity — a smooth, level backside surface with the copper accessible and flush, ready for what comes next.

What comes next is backside metallization, which forms the actual electrical contact to the now-exposed copper — that connectivity belongs to the metal step, and we leave it there. Passivation owns protection and CMP owns planarity; between them they hand off a clean, flat, copper-accessible backside, with the reveal plane preserved rather than just reached.

5. The TSV Reveal Window

TSV reveal is a stopping problem, not a removal problem. The challenge is not removing silicon — it is stopping at the correct depth everywhere on the wafer at once.

The previous sections named steps; this one names the single target they all serve. There is a narrow band of recess depth that works, and the steps are graded by how well they let you arrive at that band and hold there — not just somewhere along the wafer, but across the entire diameter at the same moment. The window is the lens through which the whole chain is read.

It helps to picture recess depth as a continuous axis rather than three buckets, with two opposite failure directions at its ends. Move too little and you are in under-reveal: the copper tips remain buried, or stand only barely proud of the silicon, and the resulting connection is typically open or marginal. Move into the optimal window and every tip stands proud of the recessed silicon by enough to connect reliably, uniformly across the surface. Push too far and you cross into over-reveal: the tips are over-exposed, and the etch or polish that kept advancing now begins to attack the metal itself — dishing, smearing, and lost copper. Under and over are not separate defects; they are opposite ends of one axis, and the good window is a band sitting between them. That is the whole sense in which reveal is a stopping problem — you are not asked how much silicon to remove, you are asked where on this axis to stop.

Depth alone, though, is only one axis. Even a perfectly chosen target fails if it is not held uniformly, because the axis is traversed everywhere at once. At a single instant one region of the wafer can sit under-revealed while another is already over-revealed — the same wafer straddling both failure directions simultaneously. So the window is narrow in depth and must hold everywhere at the same moment. That simultaneity — one shared depth, satisfied edge to center together — is what makes reveal hard, and it is why across-wafer uniformity recurs at every step.

Read against that target, the full process chain is the spine: Backgrind → Reveal etch / recess → Passivation → CMP → Backside metal. Each step has a position on the depth axis. Backgrind approaches from the under-reveal side — coarse, high-removal, and deliberately stopped short so the tips stay covered. The reveal etch is the precise stop that crosses into the window, lowering the last silicon until the tips stand proud. Passivation then protects that surface without moving the depth materially. CMP can push toward the over-reveal side if it removes too much, so it is held to planarize rather than over-thin. Backside metal closes the chain on a window that has been reached and held.

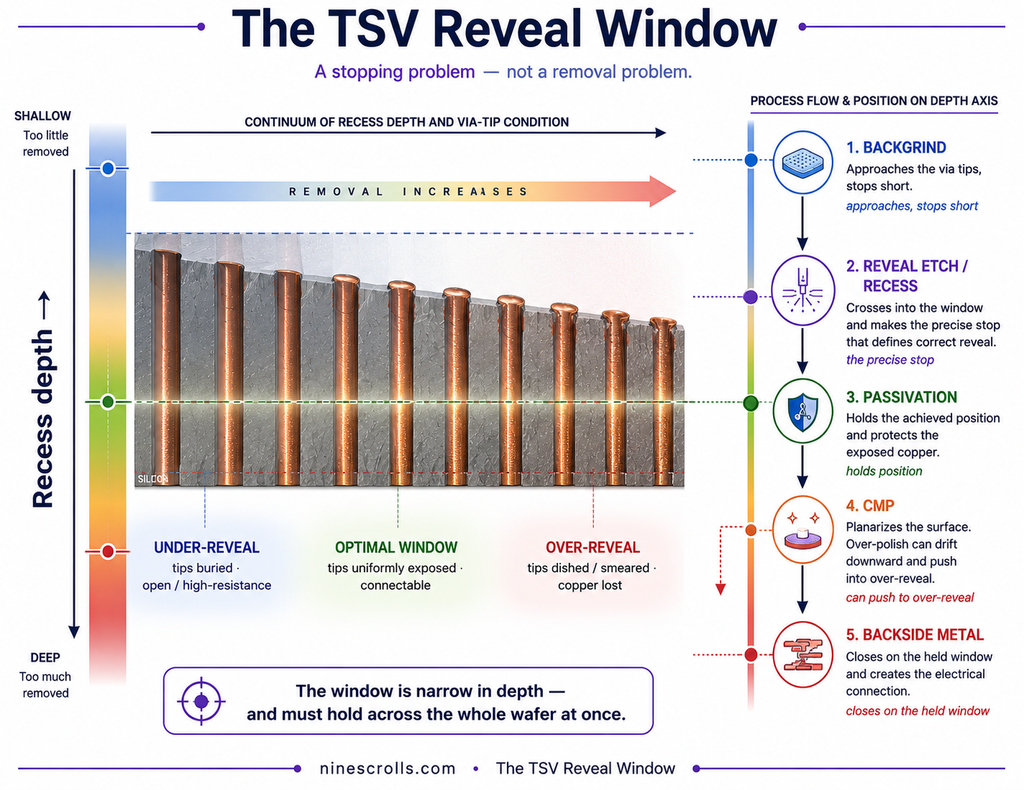

The TSV reveal window: a continuum of recess depth from under-reveal (tips buried) through the optimal window (tips uniformly exposed) to over-reveal (tips dished and damaged), with the process flow as the spine — The TSV reveal window: a narrow band of recess depth between under-reveal and over-reveal that must be hit uniformly across the wafer at once.

Read the figure along the recess-depth axis: the band in the middle is the only region where every tip is exposed and intact, and the process steps along the spine mark where on that axis each operation leaves the wafer.

6. Reveal Failure Modes

Read against the window, the ways a reveal goes wrong are the ways the chain misses or fails to hold that target band. Each has a cause that lives in the reveal itself.

Under-reveal is the recess stopped short. The etch or the preceding thinning did not reach far enough, so the copper tips are still buried under residual silicon or stand only barely proud of the recessed plane. The tips were never cleared, and the via that should have become a contact instead presents as an open or a high-resistance connection — the metal is there, but nothing reaches it.

Over-reveal is the opposite cause: the recess, or the CMP that follows it, advanced too far. Once the silicon is gone and the metal is exposed, any further removal works on the copper itself — the tips dish, the soft copper smears across the surface, and protrusion height is lost. The stop came late, and the process kept cutting into the very feature it was meant to expose.

Across-wafer non-uniformity is the hardest reveal defect, because it is not a single wrong depth but two at once. The window held at the center but not the edge, or held at the edge but not the center — so some vias are correctly revealed while others, on the same wafer in the same step, are under- or over-revealed. It cannot be corrected by changing the average depth, because moving the average only trades one region's error for another's; the error is in the spread, not the mean.

Passivation voids or incomplete coverage is a defect of the protective layer rather than the depth. The backside dielectric laid over the exposed copper has gaps — thin spots, pinholes, or regions the deposition did not cover — leaving copper unprotected and un-isolated where it should have been sealed.

Each of these is described here at the moment of reveal — the cause, not the consequence. What an escaped reveal defect becomes once the part is in service — how an under-revealed open or a damaged tip plays out as a system reliability problem over time — belongs to the 3D packaging reliability hub, and we leave that downstream story there.

7. Why the Reveal Plane Matters

Reveal is the single plane where every upstream choice is graded at the same instant. A via etched too short, a fill that left a void, an uneven thinning that tilted the wafer — none of these announce themselves when they happen. They surface here, all at once, as an open tip that never cleared the silicon or a damaged tip that the recess cut into. The reveal does not author most of these problems; it is simply the moment they all come due together.

That is why the reveal carries so much of the final outcome. Restated plainly: the reveal asks not how much to take away but exactly where to halt — and to halt at that one depth everywhere on the wafer simultaneously. A process that removes silicon beautifully but cannot hold its stopping plane edge to center will still lose vias, because the grade is pass-fail at every via at once. Where those upstream choices — the etch, the fill, the thinning targets — are made and why is the subject of the parent TSV guide. What an escaped defect costs once the part ships — the downstream reliability bill — is the subject of the 3D packaging reliability hub. Between those two, the reveal is the gate where the work is finally weighed.

Frequently Asked Questions

What is TSV reveal?

TSV reveal is the set of backside operations that exposes the buried copper via tips from the thinned wafer backside, converting a blind via — copper sealed inside the silicon — into a true through-via that connects the front of the wafer to the back. It reaches the plane where the copper first appears and leaves the tips standing clear so they can be contacted.

Is TSV reveal the same as backgrinding?

No. Backgrinding is a coarse, high-removal step that brings the backside surface near the via tips — it answers proximity and is deliberately stopped short with silicon still over the tips. Reveal is the precise stop that follows: the selective silicon recess that actually exposes the copper. Grinding gets you close; reveal arrives at the exact plane.

What is the reveal etch?

The reveal etch is the selective plasma silicon recess that removes the thin residual silicon left by grinding while leaving the copper and its barrier liner essentially untouched. Because it attacks silicon far faster than metal, the surface drops while the tips do not, so the copper ends up protruding above a freshly recessed silicon plane.

Why is TSV reveal hard?

Because it is a stopping problem. There is only a narrow window of recess depth that exposes every tip without cutting into the copper, and that one depth has to be hit uniformly across the whole wafer at the same instant — edge and center together. Removing silicon is easy; halting at exactly the right plane everywhere at once is not.
