Reliability Challenges in High-Density 3D Packaging

By NineScrolls Engineering · 2026-06-14 · 13 min read · Process Integration

Every choice in advanced packaging — which interconnect carries the signal, when a via is formed in the flow, which bonding format joins the dies — is ultimately judged by a single question: will the stack survive years of power and thermal cycling? A 3D stack can pass every electrical test on day one and still fail in the field, because reliability is about how the structure ages under repeated stress, not whether it works now. This page owns the mechanisms — the why behind the failures. How to detect a failure once you suspect it belongs to our hybrid bonding failure analysis guide; the HBM product story and the thermal solutions that answer these stresses belong to our 16-Hi HBM thermal and materials guide; a single via in isolation belongs to our TSV guide. Reliability explains why a stack fails; failure analysis explains how to detect that it has.

1. Why Reliability Gets Harder in 3D Stacks

A single die is a comparatively forgiving object: one slab of silicon, a handful of interfaces, and room to flex. Stacking changes the arithmetic. Every die you add brings its own bond line, its own set of dissimilar-material boundaries, and its own contribution to the heat trapped inside the package. The reliability problem in 3D is best framed as a simple imbalance — there is more to break, and less room to absorb it.

Each added interface is not an independent bet. All of the bonds, vias, and material boundaries in a stack typically see the same power and thermal cycling at the same time, so a weakness anywhere is exercised everywhere. The more interfaces you introduce, the more places a crack can nucleate, and the more likely it becomes that at least one of them is the one that fails first. Series reliability of this kind degrades quickly with count.

The degradation is also super-linear. A 12-high stack is not simply twelve times the risk of a single die, because the interfaces interact: a deformation at the bottom of the stack loads the dies above it, residual stresses from neighboring layers add rather than cancel, and heat generated deep in the stack has a longer, more resistive path to escape. The stack behaves as a coupled mechanical system, not a stack of independent parts, so its weakest combination of stresses — not any one die — commonly sets the lifetime.

Shrinking margin compounds all of this. As dies are thinned to fit more of them into the same height, the silicon that once absorbed stress becomes thinner and more fragile, bond lines get tighter, and the tolerance for any warp or misalignment narrows. So reliability gets harder in 3D for two reasons working together: the structure has more interfaces that must all survive identical cycling, and it has less mechanical headroom in which to survive it.

2. Thermo-Mechanical Stress

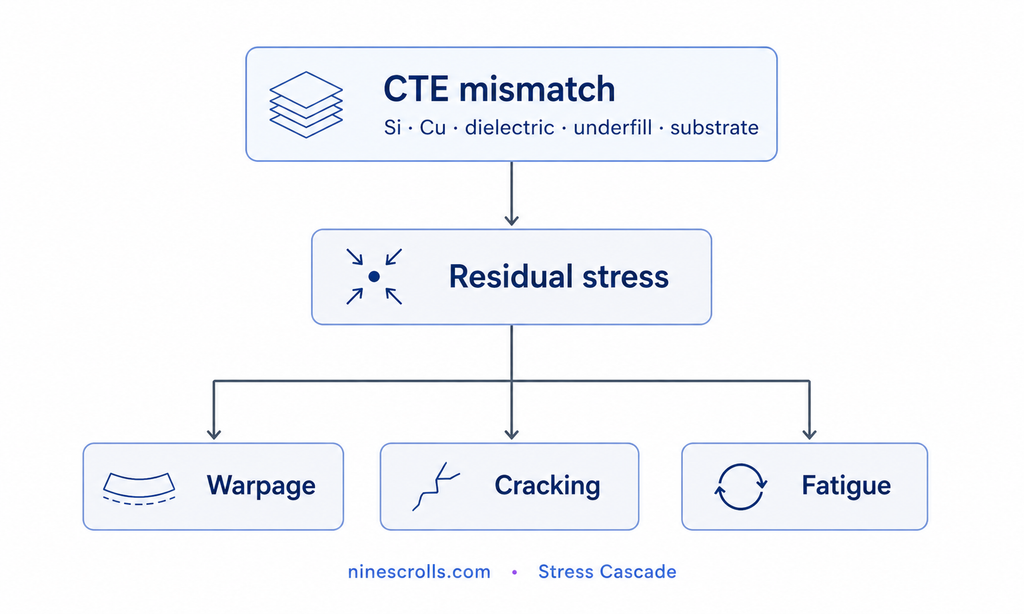

Nearly every mechanism on this page descends from one root driver: coefficient of thermal expansion (CTE) mismatch. A package is an assembly of materials that each expand and contract at different rates as the part heats and cools, but they are bonded rigidly together and cannot move independently. Every power-on and power-off cycle therefore forces neighboring materials to strain against one another, and that repeated, constrained motion is what stores the mechanical energy that the rest of the stack later spends on cracking and fatigue.

Start with the copper of the TSVs and pads against the surrounding silicon. Copper typically expands several times more than silicon for the same temperature rise, but the via is locked inside the silicon and cannot grow freely. Each thermal cycle therefore loads the copper-silicon boundary, and over many cycles that stored stress is what nucleates the interfacial cracks and via protrusion that later open a connection.

The dielectric layers tell a similar story from the opposite direction. Low-k and other dielectrics are typically stiff and brittle and expand far less than the metal routed through and beside them. As the surrounding copper pushes and pulls with temperature, the dielectric is the material least able to yield, so the strain concentrates there — and a brittle layer that cannot relieve strain is exactly where delamination between metal and dielectric tends to begin.

Underfill and the organic substrate sit at the other extreme of the property range. Underfill is engineered to redistribute the stress on the solder and bond joints, but it commonly has a high CTE of its own and a glass-transition temperature within the operating range, so above that point its expansion accelerates. The substrate is more compliant still and expands the most of any layer in the stack. That large mismatch between a high-expansion organic substrate and the low-expansion silicon above it is the dominant lever for whole-package deformation, which means this pairing is the one that most directly seeds the warpage examined in the next section.

What ties these pairings together is residual stress. The mismatches are locked in at assembly, while the package is cooled from elevated bonding and cure temperatures back to room temperature, and they never fully relax afterward — the part lives its entire service life pre-loaded. This stored stress is the single source from which warpage, cracking, and fatigue all descend; the field cycling that follows does not create the stress so much as repeatedly work it until something gives.

3. Warpage and Package Deformation

Of all the mechanisms in this cluster, warpage is the cleanest and least contested. It is the visible, whole-package expression of the residual stress described above: when a package built from layers of mismatched expansion is cooled from assembly temperature, the stresses that cannot relax instead bend the package, leaving it bowed rather than flat. Warpage is typically reported as bow and as loss of coplanarity — a measure of how far the package surface deviates from a single plane — and it commonly changes sign and magnitude as the part is reheated, so a package can be flat at one temperature and noticeably curved at another.

The first place warpage bites is assembly yield. A bowed package does not seat flatly: it can fail to sit evenly on a chuck, lift at the corners during pick-and-place, or present a surface that is no longer coplanar enough for a downstream bonding step to close every joint at once. When the package will not lie flat, some interconnects make contact while others are held open, and the result is missing or marginal joints — yield lost not because any material was inherently bad, but because the part would not hold the shape the process assumed.

Warpage that survives assembly does not simply sit still, and this is where it stops being merely an outcome and becomes a cause in its own right. A curved package concentrates local stress wherever the bow is sharpest, typically at corners, at die edges, and along the outermost interconnect rows, loading those features far more heavily than a flat package would. That concentrated, geometry-driven stress feeds directly back into the cracking and fatigue mechanisms: the corner joints that a warped package overloads are commonly the first to fatigue in cycling, and the bent interfaces are where delamination tends to find its starting point.

This is what keeps warpage distinct from the stress of §2. The CTE mismatch and residual stress are the loading; warpage is one deformation the package adopts in response. But because that deformed shape then redistributes stress onto the most vulnerable features, warpage closes a loop — an effect of the root driver that becomes a driver of the failures further down the chain.

4. Interconnect Fatigue

The joints that carry a signal across a die boundary — micro-bumps and hybrid-bond Cu-Cu interfaces — are where the stack typically fails first, because they sit exactly where the CTE-driven strain of §2 concentrates. Fatigue is that strain applied not once but thousands of times. Each power-up and cool-down cycle works the joint a little; a crack initiates at a stress riser, propagates a small increment per cycle, and after enough cycles it opens the connection. The part that passed every test on day one fails in year three not because anything was wrong with it, but because the loading was repeated until a microscopic flaw grew into an open circuit.

The two joint types fatigue for different reasons. A solder micro-bump is comparatively soft: it yields and creeps, absorbing some strain through plastic flow, but that same ductility means it accumulates damage cycle after cycle until a crack runs through the joint. A rigid Cu-Cu hybrid bond does not relieve strain the same way — it is stiff, so it transfers stress rather than flowing to accommodate it, and the failure tends to localize at the bond interface or in the surrounding dielectric instead. Which interconnect a stack should use is a design trade-off in its own right, and we do not re-derive that choice here; it belongs to our hybrid bonding vs micro-bump comparison.

One practical caveat: knowing that a joint has fatigued is not the same as knowing which one. In a stack of thousands of interconnects, localizing the opened joint belongs to failure analysis, covered in our hybrid bonding failure analysis guide. This page stays on the mechanism: the cycle-by-cycle accumulation of strain is why these joints have a finite life, regardless of which one happens to go first.

5. When Temperature Becomes Stress

It is tempting to treat heat as a cooling problem — something a heat spreader handles. For reliability, the more important framing is that heat is stress. A temperature differential across a stack means one layer is hotter than its neighbor; differential expansion follows directly, and differential expansion is mechanical strain. So a thermal gradient is not merely an efficiency concern: it is a continuous, internally generated load that feeds the same fatigue and delamination mechanisms described above. The hotter the joint, the more strain per cycle and the faster it ages.

Temperature accelerates the chemistry too. Reaction rates rise with heat, so oxidation, interdiffusion at interfaces, and electromigration in the conductors all proceed faster where the stack runs hot. This is why a hotspot is a double penalty — it is localized mechanical stress and localized aging, concentrated precisely where the structure is already working hardest. A uniform temperature would at least spread the burden; a gradient piles it onto a few features.

HBM is the clearest case. A tall memory stack traps heat in its middle dies, far from any external surface, so the worst gradient and the worst stress sit exactly where they are hardest to reach. Note the scope split: how that heat is actually removed — spreaders, thin-film thermal management, and the rest — is covered in our 16-Hi HBM thermal and materials article. This page owns the other half: temperature as a differential, and a differential as stress.

That completes the mechanisms. Stress, warpage, fatigue, and thermal gradients each describe a way a sound stack ages into failure — and each one invites a fix. But every fix carries a cost, and weighing one against another is the subject of the trade-off matrix that follows.

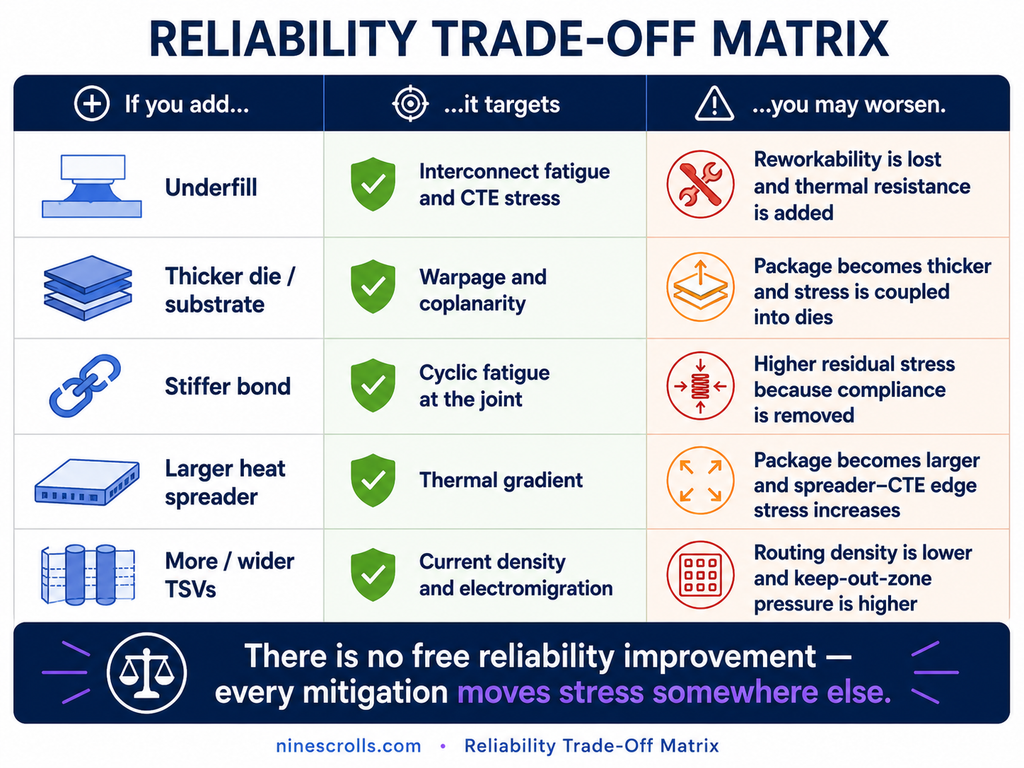

6. The Reliability Trade-Off Matrix

There is no free reliability improvement. Every mitigation shifts stress somewhere else.

Every section so far has named a mechanism, but the engineer's real question is what to do about it. Here is the catch that makes this section a hub rather than a wishlist: each available fix typically relocates stress rather than removing it, so it buys margin in one place by spending it in another. The useful way to read the options is therefore inverted — not “what does this fix?” but “if I add this, what gets worse?”

Add Underfill

Underfill targets interconnect fatigue and CTE stress at the joints. It works by flowing into the die-to-substrate gap and curing into a coupling layer, so the bonds no longer carry the differential strain alone — the load is shared across the whole filled volume rather than concentrated on a few joints, which commonly extends fatigue life under cycling. The new cost is twofold and distinctive. First, reworkability is gone: once cured, the bond is effectively permanent, so a stack that fails inspection typically cannot be reopened and salvaged. Second, the underfill itself adds a thermal-resistance layer between the die and its escape path, so the part runs marginally hotter. You buy joint margin and lose serviceability.

Thicken the Die or Substrate

A thicker die or substrate targets warpage directly by adding bending stiffness. A stiffer body resists the bow that mismatched expansion tries to impose, so the package commonly stays closer to coplanar through assembly and cycling, easing the yield and corner-stress problems of §3. The distinctive new cost is dimensional and structural rather than serviceability-related. Package thickness rises, which works against the height budget that drove the stacking in the first place. More subtly, a stiffer body no longer flexes to relieve load — it couples stress more rigidly into the dies instead of bending out of the way, so strain that warpage once absorbed by deforming is now transmitted into the silicon.

Stiffen the Bond

Stiffening the interconnect itself — a more rigid bond in place of a compliant one — targets fatigue by resisting the cyclic motion that grows cracks. A joint that does not flex is a joint that does not work itself loose over thousands of cycles. But the distinctive cost here is residual stress, not thickness or reworkability. Rigidity removes the very compliance that a softer joint used to absorb strain by yielding; with nowhere to flow, the strain that was being dissipated instead concentrates as residual stress at the interface and the surrounding dielectric. You trade ductility for stiffness, and the interface that no longer moves is the interface that now holds the stress.

Enlarge the Heat Spreader

A larger heat spreader targets the thermal gradient of §5 by pulling heat out faster and flattening the temperature differential that drives differential expansion. The distinctive new cost is package size: a bigger spreader grows the package footprint, and the spreader's own CTE adds a fresh source of edge stress where it meets the rest of the stack. How a spreader is actually constructed and specified is owned by our 16-Hi HBM thermal and materials guide; here it is simply one more stress trade.

Add More or Wider TSVs

More or wider through-silicon vias target current density and electromigration by spreading the same current over more copper, lowering the local load that ages conductors. The distinctive new cost is routing: every via consumes silicon area, so adding them drops routing density and raises keep-out-zone pressure, while the extra copper-in-silicon boundaries increase stress coupling. The via-level design rules behind this belong to our TSV guide; for reliability the point is only that current margin is bought with area and coupling.

Read down the third column and the pattern is unmistakable: there is no global optimum, only a stress budget moved from one place to another. Each fix is sound in isolation and each relocates the burden onto a different feature, so a package is reliable not when every mechanism is fixed but when the relocated stresses are balanced against one another. That is why reliability is a system problem rather than a checklist — the subject the next section takes up.

7. Reliability Is a System Problem

The mistake the preceding sections are meant to dislodge is treating reliability as one stage in the packaging chain — a box checked after assembly. It is not a step; it is the cross-cutting dimension that spans the whole flow, and every upstream choice ultimately answers to it. The readiness of the bonding surfaces sets how cleanly a joint closes and therefore where strain later concentrates. The point in the flow at which a via is formed decides how much residual stress the copper carries into service. The interconnect that joins the dies fixes whether the stack relieves strain by flowing or transfers it by staying rigid. And the format in which the dies are integrated governs how warpage and yield loss accumulate across the build. None of these is a reliability decision on its face, yet each one moves the reliability budget the §6 matrix tracks.

HBM is the lead case where this convergence is unavoidable: a tall stack concentrates every mechanism in this article — CTE-driven residual stress, warpage, interconnect fatigue, and a punishing thermal gradient — into a single product, and no one of them can be tuned without disturbing the others. That is the principle to carry away. Reliability is not won by perfecting any single mechanism or eliminating any one failure mode; it is won by balancing relocated stresses across the whole structure, so that the margin spent in one place is deliberately chosen rather than accidentally surrendered.

Frequently Asked Questions

What causes reliability failures in 3D-stacked packages?

The root driver is coefficient-of-thermal-expansion (CTE) mismatch: materials that expand at different rates but are bonded rigidly together, so cooling from assembly temperature locks in residual stress. That stored stress later expresses itself as warpage, interfacial cracking, and interconnect fatigue under repeated thermal cycling — which is why a part can pass every electrical test on day one and still age into failure.

What is the difference between reliability and failure analysis?

Reliability is the study of why a stack fails: the mechanisms of stress, warpage, and fatigue that determine how a sound part ages under cycling. Failure analysis is the work that comes after a failure occurs, isolating which feature gave way and diagnosing the cause. Put simply, reliability explains why a stack fails; failure analysis is the diagnostic work of confirming that it has, covered in our hybrid bonding failure analysis guide.

What is package warpage and why does it matter?

Warpage is the whole-package bow, or loss of coplanarity, that develops when a stack of mismatched-expansion materials is cooled from assembly temperature and cannot lie flat. It matters first at assembly yield, because a bowed package will not seat evenly and some joints close while others are held open. It then matters in the field, because the curved shape concentrates stress at corners and die edges, the features most likely to fatigue first.

Why does thermal management affect reliability?

A temperature differential across a stack means neighboring layers expand by different amounts, and that differential expansion is mechanical strain, so heat is a continuous, internally generated stress that feeds fatigue and delamination, not only a cooling concern. The hotter the joint, the faster it ages. Cooling solutions are covered separately in our 16-Hi HBM thermal and materials guide; this page owns the mechanism, not the remedy.

Can you eliminate reliability trade-offs?

Not in a simple sense. Every mitigation typically relocates stress rather than removing it: adding underfill, stiffening the substrate, or changing the interconnect each buys margin in one place by spending it in another. The goal is not a free improvement but a deliberate allocation of where the stress goes — exactly what the trade-off matrix above is built to make visible.
