Plasma Etching Explained: From Fundamentals to Applications

By NineScrolls Engineering · 2025-01-26 · 15 min read · Materials Science

Target Readers: Semiconductor process engineers, equipment engineers, R&D scientists, and technical decision-makers in plasma processing and microfabrication.

TL;DR Summary

Plasma etching is a critical microfabrication technique that uses ionized gases to selectively remove material from substrates. The process combines chemical reactions and physical bombardment to achieve precise, anisotropic etching with excellent selectivity. Understanding plasma etching fundamentals is essential for semiconductor manufacturing, MEMS fabrication, and advanced materials processing.

1) What is Plasma Etching? Definition, Types, and Key Parameters

Plasma etching is a dry etching technique that uses ionized gases (plasma) to selectively remove material from a substrate surface. Unlike wet etching, which uses liquid chemicals, plasma etching offers superior control over etch profiles, better selectivity, and compatibility with modern microfabrication processes.

Key Components of Plasma Etching

• Plasma Source: Generates ionized gas containing reactive species
• Reactive Gases: Provide chemical etching capability (F₂, Cl₂, O₂, etc.)
• Ion Bombardment: Provides directional etching and surface activation
• Substrate Bias: Controls ion energy and directionality

2) Plasma Etching Fundamentals

2.1 Plasma Generation

Plasma is created by applying energy (typically RF power) to a gas, causing electrons to gain sufficient energy to ionize gas molecules. This creates a mixture of:

• Ions: Positively charged species that provide physical bombardment
• Electrons: Negatively charged particles that maintain plasma
• Radicals: Highly reactive neutral species for chemical etching
• Photons: Emitted during recombination processes

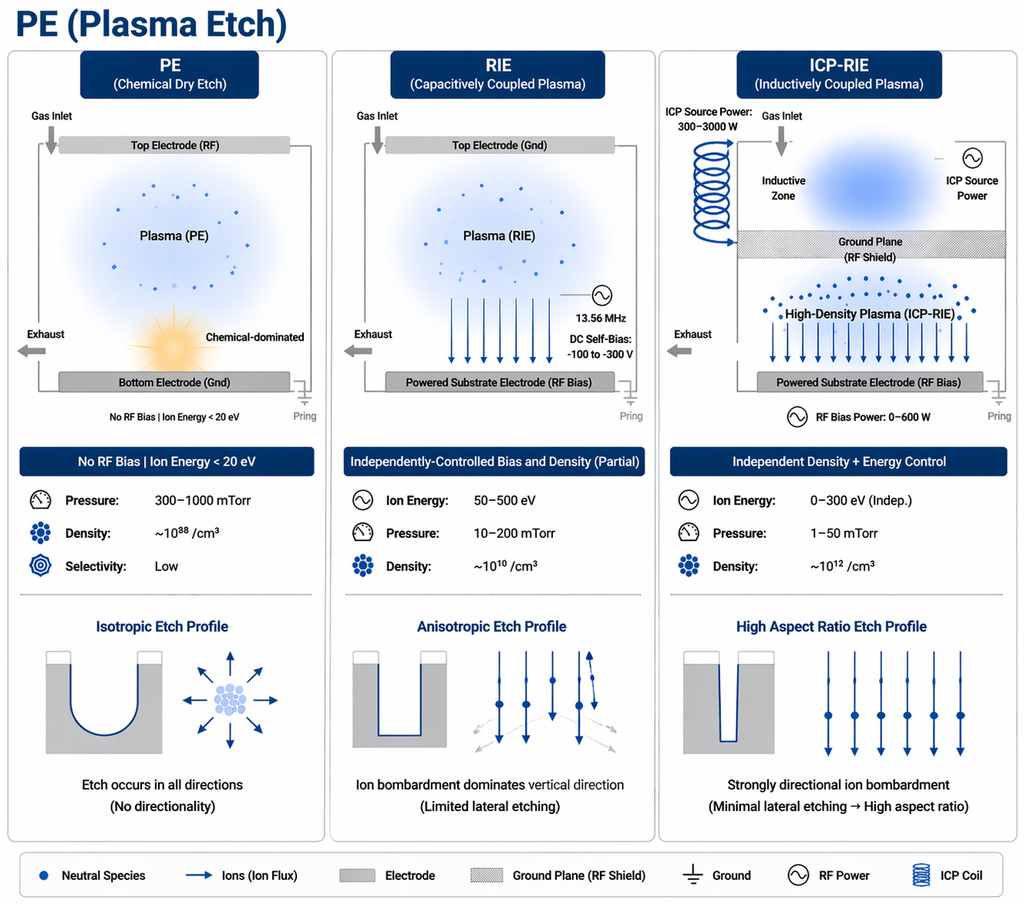

Figure 1: Plasma Etching Reactor Architecture — Cross-section showing RF electrodes, gas inlet system, plasma generation region, and substrate stage with bias control

2.2 Etching Mechanisms

Plasma etching involves two primary mechanisms working together:

Chemical Etching:

• Reactive radicals (F*, Cl*, O*) chemically react with substrate material
• Forms volatile byproducts that are removed by vacuum
• Provides high selectivity and isotropic etching
• Examples: CF₄ etching of silicon, O₂ etching of photoresist

Physical Etching (Ion Bombardment):

• Ions accelerate toward substrate under bias voltage
• Physical sputtering removes material
• Breaks surface bonds, enhancing chemical reactions
• Provides directional (anisotropic) etching

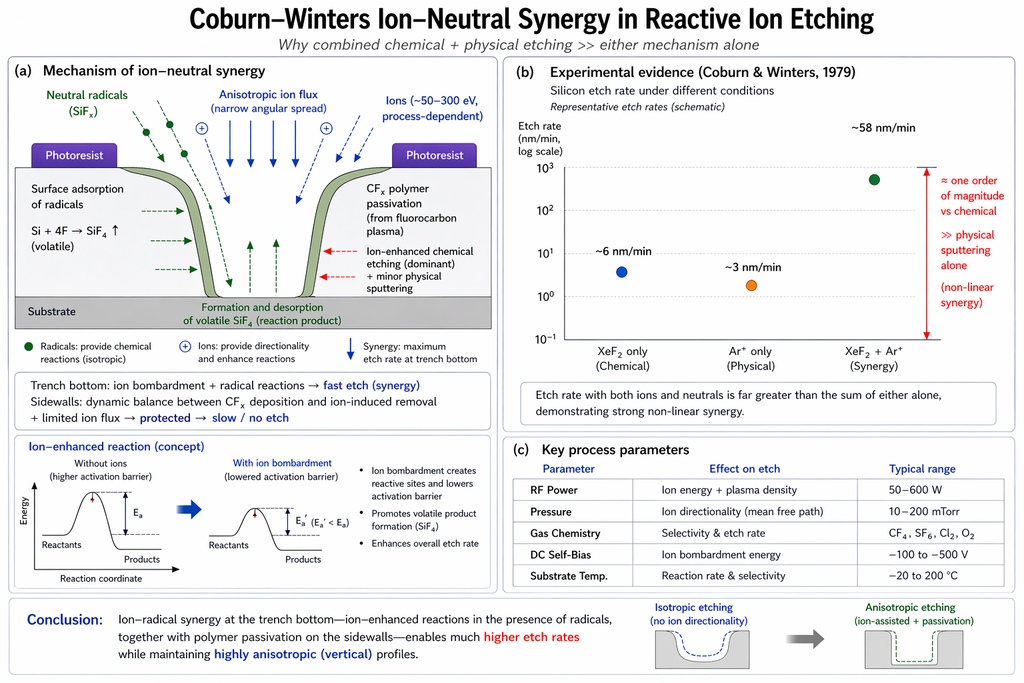

Figure 2: Plasma Etching Fundamentals — The synergistic interaction between chemical radical reactions and directional ion bombardment, first demonstrated by Coburn and Winters (1979) to achieve etch rates up to 10× higher than either mechanism alone

3) Types of Plasma Etching: PE vs RIE vs ICP-RIE

Plasma etching encompasses several distinct techniques with fundamentally different mechanisms and capabilities. For a detailed technical comparison of process parameters, reactor architectures, and selection guidelines, see our in-depth guide on PE vs RIE vs ICP-RIE Plasma Etching.

3.1 Plasma Etching (PE)

The most basic form of plasma etching, relying primarily on chemical reactions:

• Mechanism: Primarily chemical etching with minimal ion bombardment
• Profile: Isotropic (etches equally in all directions)
• Selectivity: High due to chemical specificity
• Etch Rate: 100–300 nm/min (material-dependent)
• Plasma Density: 10⁹–10¹⁰ cm⁻³
• Applications: Photoresist stripping, surface cleaning, isotropic etching

Best for: Photoresist stripping, surface cleaning, and isotropic etching where substrate damage must be minimized.

3.2 Reactive Ion Etching (RIE)

Combines chemical and physical etching mechanisms:

• Mechanism: Chemical reactions + ion bombardment
• Profile: Anisotropic (directional etching)
• Selectivity: Moderate, balance between chemical and physical
• Etch Rate: 200–500 nm/min
• Plasma Density: 10¹⁰–10¹¹ cm⁻³
• DC Self-Bias: −100 to −500 V
• Applications: Silicon etching, dielectric etching, metal patterning

Best for: Standard semiconductor patterning, dielectric etching, and moderate aspect-ratio features (<10:1).

3.3 Inductively Coupled Plasma RIE (ICP-RIE)

Advanced plasma etching with independent control of plasma density and ion energy. The ICP source, first systematically reviewed by Hopwood (1992), decouples plasma generation from ion acceleration, enabling precise tuning of both parameters. For a deeper dive into ICP-RIE technology, see our ICP-RIE Technology Guide.

• Mechanism: High-density plasma + independently controlled ion energy
• Profile: Highly anisotropic with excellent control
• Selectivity: High with proper parameter optimization
• Etch Rate: 500–5000+ nm/min (material-dependent)
• Plasma Density: 10¹¹–10¹² cm⁻³
• DC Self-Bias: 0 to −300 V (independently controlled)
• Applications: High-aspect-ratio etching, DRIE (Bosch process), III-V compounds, photonics

Best for: High-aspect-ratio features (>10:1, up to 50:1+), deep silicon etching (DRIE), III-V compound semiconductors, and photonic device fabrication.

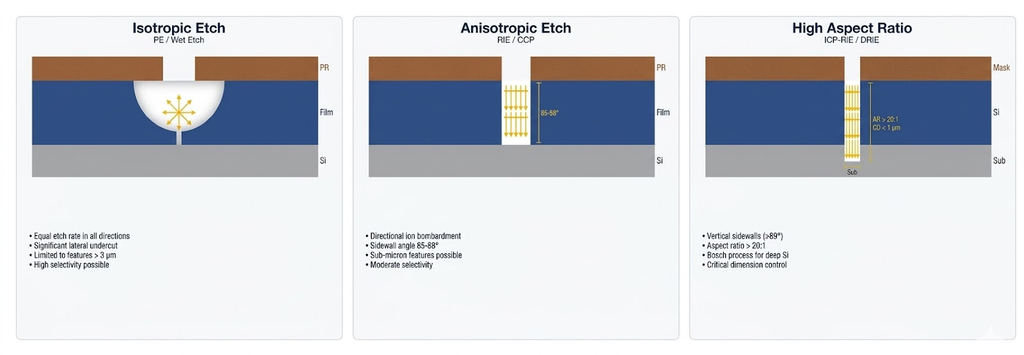

Figure 3: Etch Profile Comparison — Isotropic (PE/chemical etch), Anisotropic (RIE), and High Aspect Ratio (ICP-RIE/DRIE) profiles through film layers

4) Process Parameters and Control

4.1 Key Parameters

Figure 4: Plasma Etching Technology Comparison — Etch rate, selectivity, and anisotropy characteristics across PE, RIE, and ICP-RIE platforms

4.2 Gas Chemistry Selection

The choice of gas chemistry is critical for achieving desired etch characteristics. For advanced selectivity optimization techniques, see our guide on Ultra-High Etch Selectivity.

Silicon Etching:

• CF₄/O₂: High etch rate, moderate selectivity
• SF₆/O₂: High etch rate, good selectivity
• Cl₂/HBr: High anisotropy, good selectivity

Dielectric Etching:

• CF₄/CHF₃: SiO₂ etching with good selectivity to Si
• C₄F₈: High selectivity, low etch rate
• CHF₃/O₂: Balanced selectivity and rate

Metal Etching:

• Cl₂/BCl₃: Aluminum etching
• SF₆/O₂: Tungsten etching
• Ar/O₂: Titanium etching

5) Plasma Etching Applications in Semiconductor, MEMS, and Advanced Materials Manufacturing

5.1 Silicon Processing

• Gate Etching: Precise control of gate length and profile, achieving sub-10 nm critical dimensions in advanced logic nodes
• Trench Formation: Deep trenches for isolation and capacitors, with depths exceeding 500 µm achievable via Bosch process DRIE
• Contact/Via Etching: High-aspect-ratio holes for electrical connections, with aspect ratios exceeding 50:1 for through-silicon via (TSV) formation
• Silicon Dioxide Etching: Dielectric layer patterning with selectivity ratios of 10:1–20:1 over silicon

5.2 MEMS Fabrication

• Bulk Micromachining: Deep silicon etching for mechanical structures
• Surface Micromachining: Thin film patterning for sensors and actuators
• Release Etching: Removal of sacrificial layers
• Packaging: Cavity formation and sealing

5.3 Advanced Applications

• 3D Integration: Through-silicon via (TSV) formation with aspect ratios exceeding 50:1, enabled by ICP-RIE and Bosch process cycling
• Optical Devices: Waveguide and grating fabrication with sidewall roughness <5 nm for low-loss photonic circuits
• Quantum Devices: Precise nanostructure formation for superconducting qubits and quantum dot arrays
• Biomedical Devices: Microfluidic channel etching with controlled surface properties for lab-on-chip applications

6) Process Optimization and Troubleshooting

6.1 Common Issues and Solutions

7) NineScrolls Plasma Etching Solutions

NineScrolls offers advanced plasma etching systems designed for research and manufacturing applications. For a complete equipment overview and selection guidance, see our Semiconductor Etcher Selection Guide.

RIE Etcher Series

• Compact design (1.0m × 1.0m footprint), ideal for cleanroom integration
• 4–6 MFC gas line configuration for versatile process chemistry
• Advanced plasma control system with real-time process monitoring
• Etch rate capability: 200–500 nm/min for standard Si and dielectric processes
• Wafer sizes: up to 4-inch (100 mm) standard, 6-inch (150 mm) optional
• Best for: standard semiconductor patterning, dielectric etching, photoresist processing

ICP Etcher Series

• Uni-body design (1.0m × 1.5m footprint) with integrated gas and vacuum systems
• Independent ICP source (up to 2000 W) and RF bias (up to 600 W) control
• 6–8 gas lines for complex multi-step processes including Bosch DRIE
• High-density plasma generation (10¹¹–10¹² cm⁻³)
• Process design kits available for Si, SiO₂, III-V, and photonic materials
• Optional laser interferometry endpoint detection and OES monitoring
• Best for: high-aspect-ratio etching, DRIE, III-V compounds, photonic devices, MEMS fabrication

All NineScrolls etching solutions are designed for cleanroom integration and comply with applicable SEMI standards for semiconductor equipment safety and process control.

8) Future Trends: ALE, Pulsed Plasma, and AI-Enhanced Etching

• Atomic Layer Etching (ALE): Precise atomic-level control for next-generation devices, removing material one monolayer at a time with sub-angstrom precision (Kanarik et al., 2015)
• Pulsed Plasma Etching: Enhanced selectivity and reduced damage through time-modulated plasma excitation
• AI-Enhanced Process Control: Real-time optimization using machine learning for predictive maintenance and process drift correction
• Cryogenic Etching: Ultra-smooth sidewalls via temperature-controlled passivation, offering an alternative to the Bosch process for certain applications. See our comparison of Cryogenic Etching vs Bosch Process.
• Novel Gas Chemistries: Improved selectivity and environmental compliance, including reduced global-warming-potential alternatives to traditional fluorocarbon gases
• 3D Integration: Advanced etching for through-silicon vias and heterogeneous packaging, driving demand for high-throughput DRIE solutions

9) Conclusion

Plasma etching is a fundamental technology in modern microfabrication, enabling the precise patterning of materials at the micro and nanoscale. Understanding the fundamentals of plasma etching, including the interaction between chemical and physical processes, is essential for optimizing etch performance and achieving desired device characteristics.

The choice of etching technology and process parameters depends on the specific application requirements, including etch rate, selectivity, anisotropy, and damage considerations. With proper optimization, plasma etching can achieve excellent results across a wide range of materials and applications.

Call-to-Action

• For MEMS researchers: Our ICP etcher supports Bosch process recipes with aspect ratios >50:1 — explore configurations and starter recipes for your specific materials.
• For semiconductor fabs: Explore our customizable multi-step etching process kits for high-precision patterning of Si, SiO₂, and III-V materials.
• Need process optimization support? Our process engineers provide starter recipes and DOE templates for Si, SiO₂, III-V, and photonic materials. Contact us for a consultation.

Contact:
RIE Etcher Series · ICP Etcher Series · Contact us · Email: info@ninescrolls.com

References

1. Coburn, J. W. & Winters, H. F. "Ion- and electron-assisted gas-surface chemistry — An important effect in plasma etching." Journal of Applied Physics, 50(5), 3189–3196 (1979). doi:10.1063/1.326355
2. Manos, D. M. & Flamm, D. L. Plasma Etching: An Introduction. Academic Press (1989). ISBN 978-0124693708.
3. Flamm, D. L. "Mechanisms of silicon etching in fluorine- and chlorine-containing plasmas." Pure and Applied Chemistry, 62(9), 1709–1720 (1990). doi:10.1351/pac199062091709
4. Hopwood, J. "Review of inductively coupled plasmas for plasma processing." Plasma Sources Science and Technology, 1(2), 109–116 (1992). doi:10.1088/0963-0252/1/2/006
5. Winters, H. F. & Coburn, J. W. "Surface science aspects of etching reactions." Surface Science Reports, 14(4–6), 161–269 (1992). doi:10.1016/0167-5729(92)90009-Z
6. Lieberman, M. A. & Lichtenberg, A. J. Principles of Plasma Discharges and Materials Processing, 2nd ed. Wiley-Interscience (2005). ISBN 978-0471720010.
7. Donnelly, V. M. & Kornblit, A. "Plasma etching: Yesterday, today, and tomorrow." Journal of Vacuum Science & Technology A, 31(5), 050825 (2013). doi:10.1116/1.4819316
8. Kanarik, K. J. et al. "Overview of atomic layer etching in the semiconductor industry." Journal of Vacuum Science & Technology A, 33(2), 020802 (2015). doi:10.1116/1.4913379
