Semiconductor Etchers – How to Choose the Right System for Your Lab

By NineScrolls Engineering · 2025-08-29 · 10 min read · Nanotechnology

Target Readers: R&D scientists, semiconductor process engineers, university labs, and advanced material research facilities.

Estimated Reading Time: 10 min

1. Introduction: Why Choosing the Right Etcher Matters

Semiconductor etching is at the heart of microfabrication, enabling the creation of precise features in silicon, dielectrics, and compound materials. From MEMS and sensors to photonics and advanced ICs, etchers determine device performance, yield, and scalability.

Selecting the wrong etcher can lead to process incompatibility, high running costs, or limited research flexibility. This guide outlines the key factors to consider when choosing the right system for your laboratory, balancing technical performance, scalability, and budget.

2. Types of Semiconductor Etchers

• Reactive Ion Etching (RIE)
  Combines chemical reactions with physical ion bombardment. Provides anisotropic profiles and is widely used for silicon, oxides, and polymers. Ideal for general-purpose R&D labs.
• Inductively Coupled Plasma RIE (ICP‑RIE)
  Uses high-density plasma with independent control of ion density and ion energy. Suited for advanced processes requiring deep etching, high selectivity, and smooth sidewalls.
• Deep Reactive Ion Etching (DRIE)
  Specialized for high aspect ratio (HAR) etching, commonly using the Bosch process. Critical for MEMS, TSV (Through‑Silicon Vias), and photonic devices.
• Ion Beam Etching (IBE/RIBE)
  Uses a focused ion beam for physical sputtering. Offers excellent directionality but is slower and more niche—often used in optics and magnetic films.
• Wet Benches with Plasma Strippers (Complementary Tools)
  While not strictly "etchers," these are often needed for resist stripping or pre‑cleaning processes, ensuring compatibility in a complete etching workflow.

To understand the technical differences between PE, RIE, and ICP-RIE in detail — including process parameters, reactor architectures, and performance trade-offs — see our comprehensive comparison guide.

3. Key Factors in Selecting an Etcher

3.1 Substrate Size and Compatibility

• Typical R&D systems handle 2–6 inch wafers.
• University labs often require versatility across small coupons (5–20 mm) up to 200 mm wafers.
• Ensure chuck and loading systems match your future scalability needs.

3.2 Materials and Process Requirements

• Silicon / SiO₂ / Si₃N₄ – Most standard etchers support these.
• III–V Semiconductors (GaAs, InP) – Require chlorine‑based chemistries and corrosion‑resistant chambers.
• Polymers and photoresists – Need oxygen plasma capability.
• Metals – Often require ion milling or specialized chemistries.

3.3 Selectivity and Profile Control

• High selectivity to resist/mask materials saves time and cost.
• Sidewall control (anisotropy) is crucial for MEMS, photonics, and IC applications.
• ICP‑RIE and DRIE systems provide the best tunability.

3.4 Throughput and Research Flexibility

• For teaching labs, throughput may be less critical than process flexibility.
• For production‑oriented R&D, throughput and repeatability become key.

3.5 Automation vs. Manual Operation

• Manual load systems: Cost‑effective, flexible, but operator‑dependent.
• Cluster/automated tools: Higher cost, higher repeatability, suitable for scaling into pilot production.

3.6 Safety and Cleanroom Integration

• Consider exhaust requirements, toxic gas handling (e.g., Cl₂, SF₆), and safety interlocks.
• Check compliance with local EH&S standards.

4. Cost Considerations

• Capital Cost
  • RIE systems: ~$80k–150k (entry‑level).
  • ICP‑RIE: $200k–400k (high‑density plasma).
  • DRIE: $400k–700k+ (advanced MEMS applications).
• Operational Cost
  • Gas consumption (SF₆, Cl₂, CHF₃, etc.).
  • Power, vacuum pump maintenance, chamber cleaning.
• Service and Support
  • Check availability of local service engineers.
  • Evaluate spare part costs and downtime risk.

5. Matching Etcher Type to Application

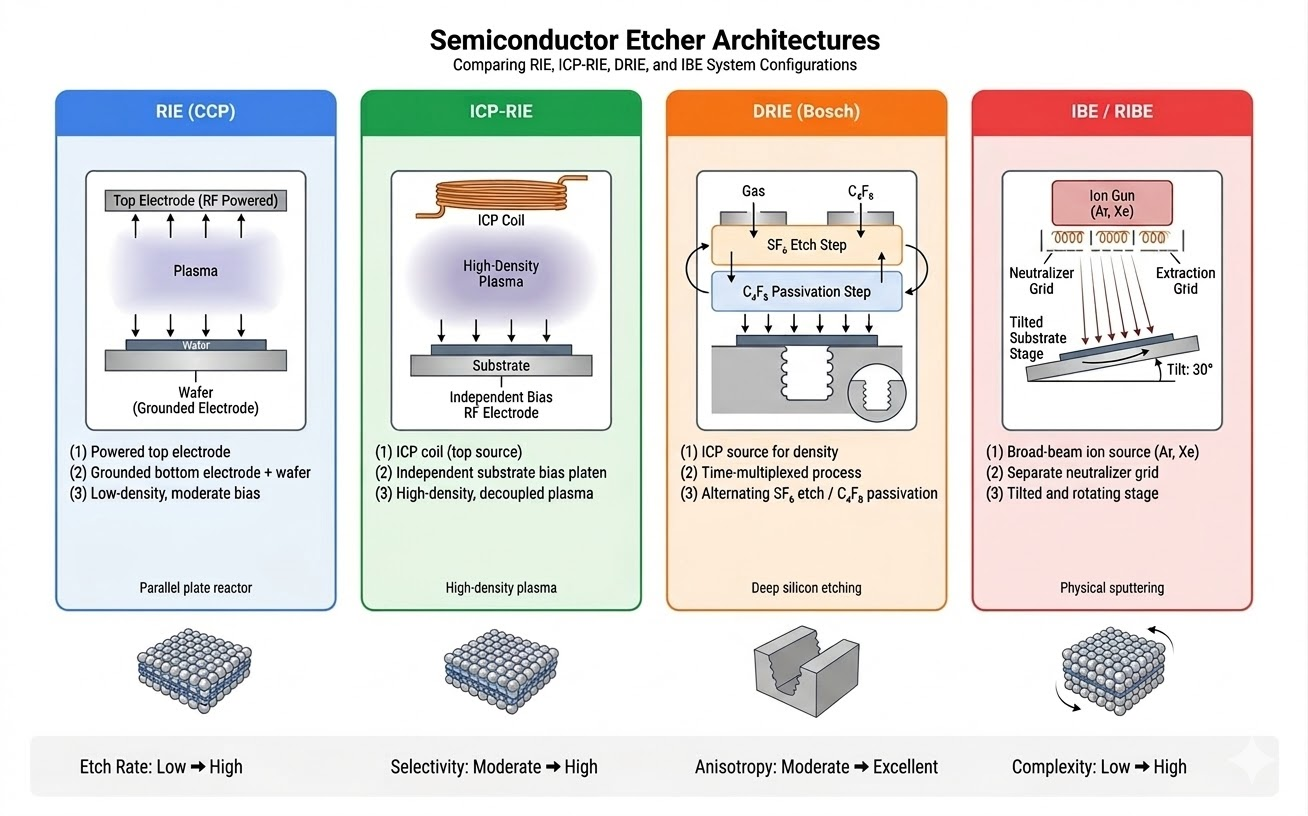

Figure 1: Etcher Architecture Comparison — side-by-side view of RIE, ICP-RIE, DRIE, and IBE systems

6. Case Study: University Lab vs. Industrial R&D

• University Lab: Prioritizes flexibility over throughput. An ICP‑RIE with broad chemistry support allows teaching across materials.
• Industrial Pilot Line: Prioritizes repeatability and scalability. Automated wafer handling and recipe locking are essential to minimize operator variation.

7. Future Trends in Etching Systems

• Green Plasma Processes – Reduction of greenhouse gases like SF₆; alternative chemistries (NF₃, fluorine‑free plasmas).
• AI‑driven Process Control – Real‑time plasma monitoring with machine learning for improved reproducibility.
• Hybrid Etchers – Systems that combine DRIE, RIE, and ALD interfaces to enable integrated process modules.

8. Conclusion

Choosing the right etcher for your lab requires balancing immediate research needs with long‑term flexibility and cost of ownership. While RIE systems are excellent entry points, ICP‑RIE and DRIE tools open opportunities for advanced nanofabrication, MEMS, and photonics.

The key is to match your material set, target applications, and scalability goals with the capabilities of the etching system. With the right choice, your lab can future‑proof its research capabilities and accelerate innovation.

References

1. Donnelly, V. M. & Kornblit, A. "Plasma etching: Yesterday, today, and tomorrow." Journal of Vacuum Science & Technology A, 31(5), 050825 (2013). doi:10.1116/1.4819316
2. Abe, H., Yoneda, M. & Fujiwara, N. "Developments of plasma etching technology for fabricating semiconductor devices." Japanese Journal of Applied Physics, 47(3R), 1435 (2008). doi:10.1143/JJAP.47.1435
3. Nojiri, K. Dry Etching Technology for Semiconductors. Springer (2015). ISBN 978-3319102948.
