1) Why Post-Etch Cleaning Matters

Plasma etching is inherently a dirty process. The same plasma chemistry that enables precise pattern transfer — fluorocarbon passivation in oxide etch, chlorine-based chemistry for metal and III-V etching, Bosch-process polymer deposition in DRIE — leaves behind residues on the patterned surfaces. These residues are a complex mixture of:

• Etch byproducts that re-deposit rather than being pumped away
• Sidewall passivation polymers deliberately deposited to achieve anisotropic profiles
• Sputtered mask material (resist, hard mask) redeposited on feature sidewalls and bottoms
• Cross-linked and UV-hardened photoresist that the etch plasma has chemically modified

If these residues are not removed, they cause a cascade of downstream failures: poor adhesion of subsequently deposited films, increased contact and via resistance, etch defects in subsequent patterning steps, and long-term reliability degradation through corrosion and delamination. Post-etch cleaning is not optional — it is a required integration step in every patterning module.

2) Types of Post-Etch Residues

Understanding the chemical composition of post-etch residues is essential for selecting the right cleaning approach. The residue type depends on the etch chemistry, the materials being etched, and the mask material.

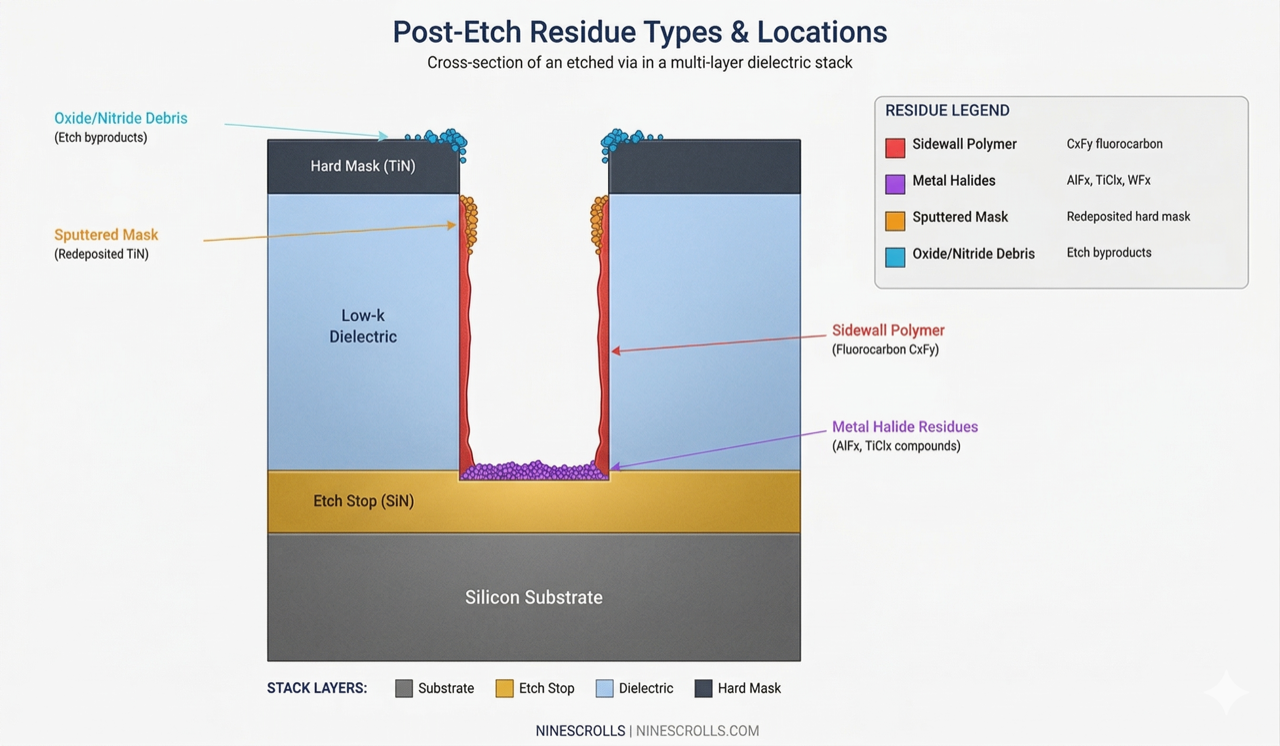

Figure 1: Post-etch residue classification — four major residue types shown at their typical locations within an etched via: sidewall polymer (fluorocarbon), metal halides at the via bottom, sputtered mask material, and oxide/nitride debris at top corners

2.1 Residue Classification

2.2 Residue Formation Mechanisms

Residues form through four primary mechanisms during plasma etching:

• Intentional passivation: In anisotropic etch processes (Bosch DRIE, fluorocarbon-based oxide etch), polymer films are deliberately deposited on sidewalls to prevent lateral etching. These passivation layers must be removed after etch without damaging the underlying structure.
• Non-volatile byproduct redeposition: When etch byproducts have insufficient vapor pressure at process conditions (e.g., InCl&sub3; from InP etch, AlF&sub3; from Al etch at low temperature), they redeposit on nearby surfaces rather than being pumped away. The result is micro-masking and roughened surfaces.
• Physical sputtering and redeposition: Energetic ions sputter material from the mask edge, trench bottom, or chamber walls. This sputtered material redeposits on sidewalls, forming "fences" (thin vertical residues at feature edges) or "veils" (continuous sidewall coatings).
• Resist modification: During etching, the resist mask is exposed to UV photons, energetic ions, and reactive radicals. This exposure cross-links the resist surface (forming a carbonized "crust"), incorporates halogen atoms into the resist matrix, and modifies the resist chemistry so that it no longer dissolves in standard strippers.

3) Dry Cleaning Methods

Dry (plasma-based) cleaning is the first-line approach for post-etch residue removal. It offers process control, repeatability, minimal chemical waste, and compatibility with vacuum-based process flows.

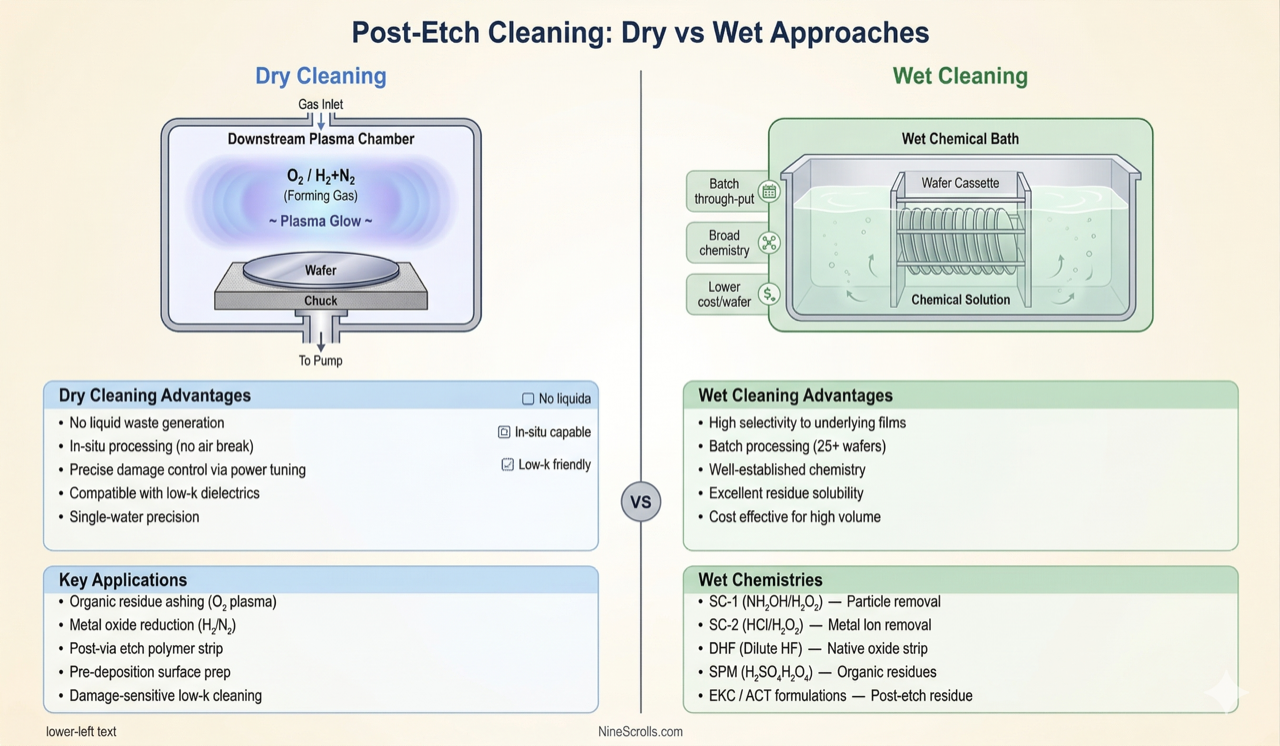

Figure 2: Dry vs wet cleaning comparison — downstream plasma cleaning offers in-situ integration and damage control, while wet chemical cleaning provides high selectivity and established batch processing with multiple chemistry options

3.1 Dry Cleaning Method Comparison

3.2 O&sub2; Plasma Cleaning — The Workhorse

O&sub2; plasma is the most widely used post-etch cleaning method because it effectively removes the most common residues (organic polymers, fluorocarbon passivation, photoresist remnants) through straightforward oxidation chemistry. The O* radicals convert carbon-containing residues to volatile CO&sub2; and H&sub2;O, leaving behind only inorganic components that may need additional treatment.

For detailed coverage of O&sub2; plasma chemistry, process parameters, and equipment configuration, see our Plasma Stripping & Ashing Guide.

Post-etch O&sub2; clean vs. standard PR strip: Post-etch cleaning typically requires more aggressive conditions than virgin resist stripping because the etch process has modified the residues. Cross-linked resist crusts need higher power (500–800 W) and/or elevated temperature (120–200°C). Silicon-containing polymer residues need O&sub2;/CF&sub4; chemistry rather than pure O&sub2;.

3.3 Forming Gas (H&sub2;/N&sub2;) Plasma — For Metal-Sensitive Substrates

When the patterned structure contains exposed copper, cobalt, ruthenium, or other oxidation-sensitive metals, O&sub2; plasma is not an option. Forming gas plasma (H&sub2;/N&sub2;, typically 4–25% H&sub2;) provides an alternative that:

• Strips organic residues through reductive chemistry (C + H* → CH&sub4;↑) rather than oxidation
• Reduces existing metal oxides (CuO + H&sub2; → Cu + H&sub2;O↑) — actually improving the metal surface
• Avoids fluorine contamination that can attack barrier layers (TaN, TiN)
• Is compatible with low-k dielectric materials when used at appropriate power levels

Strip rates in H&sub2;/N&sub2; plasma are 3–5× lower than O&sub2; plasma, so process times are longer. Compensate with higher stage temperature (150–200°C) to maintain acceptable throughput.

3.4 Downstream Ashing — Ultra-Low Damage

Downstream (remote) plasma sources generate radicals without exposing the wafer to ion bombardment. The plasma is struck upstream, and only neutral radicals (O*, H*, F*) flow to the wafer through a transport tube. This approach achieves the lowest possible substrate damage and is the method of choice for:

• Ultra-thin gate oxide devices (damage threshold <1 nm equivalent oxide thickness)
• III-V compound semiconductors (GaAs, InP, GaN) where ion damage creates deep-level traps
• MEMS devices with fragile released structures
• 2D materials and other atomically thin films

The NineScrolls Striper's adjustable discharge gap allows tuning the radical-to-ion ratio from direct plasma mode (maximum strip rate) to quasi-downstream mode (minimum damage), providing flexibility in a single platform.

4) Wet Cleaning Methods

Wet cleaning remains essential for residues that plasma methods cannot fully address — particularly metal halides, inorganic sputter-redeposited material, and deeply embedded organometallic complexes.

4.1 Wet Cleaning Chemistry Comparison

4.2 Dry + Wet Combined Approach

The most effective post-etch cleaning often combines dry and wet methods in sequence:

1. Plasma strip: O&sub2; or H&sub2;/N&sub2; plasma to remove bulk organic residues and photoresist (30–120 s)
2. Wet clean: EKC or dilute HF dip to remove inorganic residues that plasma cannot volatilize (30–120 s)
3. DI water rinse: Remove dissolved residues and wet chemistry (60 s cascade rinse)
4. Dry: Spin-rinse-dry (SRD) or N&sub2; Marangoni dry to prevent water spots and re-contamination

This combined approach handles the full spectrum of post-etch residues while minimizing chemical consumption and process time.

5) Damage-Free Strategies for Sensitive Materials

As device scaling continues and new materials enter the process flow, the challenge shifts from "can we remove the residue?" to "can we remove it without damaging the substrate?" This section addresses the three most challenging material systems.

5.1 Low-k Dielectrics (k < 3.0)

Low-k dielectric materials achieve their low permittivity through porosity (introducing air with k = 1.0 into the material matrix). This porosity makes them extremely vulnerable to plasma-induced damage:

• Carbon depletion: O&sub2; plasma removes Si–CH&sub3; groups from the pore surfaces, replacing them with Si–OH groups. This increases k-value by 0.3–1.0 and increases moisture absorption.
• Moisture uptake: Damaged pores absorb water from ambient and wet cleaning, further increasing k-value. The absorbed water can cause reliability failures (TDDB degradation).
• Plasma-induced sidewall damage: UV photons from the cleaning plasma penetrate 50–200 nm into porous low-k, breaking Si–CH&sub3; bonds deep within the material.

Damage-free cleaning strategy for low-k:

• Use H&sub2;/He or H&sub2;/N&sub2; plasma instead of O&sub2; — hydrogen radicals strip organic residues without attacking Si–CH&sub3; bonds
• Keep RF power below 300 W to minimize UV photon generation
• Use downstream plasma configuration to eliminate ion bombardment of the porous surface
• Follow plasma clean with a silylation step (HMDS vapor or liquid TMCS treatment) to repair damaged Si–OH sites back to Si–O–Si(CH&sub3;)&sub3;
• For wet cleaning, use pH-neutral or slightly acidic formulations (pH 4–7) — alkaline cleaners (SC-1) aggressively attack porous low-k

5.2 Copper Interconnects

Copper is the standard interconnect metal for advanced CMOS, but it presents unique post-etch cleaning challenges:

• Oxidation: O&sub2; plasma oxidizes exposed Cu surfaces, increasing via and contact resistance. Even brief O&sub2; exposure creates 2–5 nm CuO that must be removed before subsequent deposition.
• Corrosion: Halide residues (Cl−, F−) from etch chemistry cause rapid Cu corrosion in the presence of moisture. The corrosion byproducts (Cu(OH)&sub2;, CuCl&sub2;) are visible as green or blue discoloration.
• Galvanic corrosion: In dual-damascene structures, the Cu/barrier (TaN, TiN) interface can create galvanic cells during wet cleaning, accelerating Cu dissolution.

Copper-compatible cleaning strategy:

• H&sub2;/N&sub2; forming gas plasma for resist strip and organic residue removal — simultaneously reduces CuO back to Cu
• Dilute organic acid clean (0.5% citric acid, pH ~2.5) to dissolve Cu halide residues without attacking bulk Cu
• Immediate DI water rinse and dry after wet clean — Cu corrodes rapidly in stagnant DI water at neutral pH
• Minimize time between etch and clean (<2 hours) to prevent halide-induced corrosion from progressing

5.3 III-V Compound Semiconductors

GaAs, InP, GaN, and other III-V materials are used in photonic, RF, and power electronic devices. Post-etch cleaning challenges include:

• Preferential component etching: Cleaning chemistries can selectively remove one component (e.g., As from GaAs), creating non-stoichiometric surfaces with degraded electronic properties
• Surface state density: Plasma-induced damage creates dangling bonds and deep-level traps that pin the Fermi level and increase surface recombination velocity
• Native oxide complexity: III-V native oxides are multi-component (Ga&sub2;O&sub3;, As&sub2;O&sub3;, As&sub2;O&sub5; for GaAs) and each component has different cleaning behavior

III-V compatible cleaning strategy:

• Downstream O&sub2; or H&sub2;/N&sub2; plasma at very low power (<200 W) for organic residue removal
• Dilute HCl (1–5%) for native oxide and metal halide residue removal from GaAs and InP — HCl is gentle on III-V surfaces
• (NH&sub4;)&sub2;S passivation after cleaning to terminate dangling bonds with sulfur, reducing surface state density by 10–100×
• For GaN: avoid prolonged exposure to alkaline solutions (KOH, TMAH), which attack Ga-polar surfaces

For additional context on etch chemistry challenges with III-V and other emerging materials, see our guide on Etching Beyond Silicon: Plasma Processing Challenges for New Materials.

6) In-Situ vs. Ex-Situ Cleaning

Post-etch cleaning can be performed in the etch chamber itself (in-situ), in a dedicated cleaning module attached to the etch cluster tool, or in a separate standalone cleaner (ex-situ). Each approach has distinct advantages.

6.1 Comparison

6.2 Recommended Integration Approach

For most research and production environments, the optimal approach combines in-situ and ex-situ cleaning:

• In-situ light clean (30–60 s O&sub2; or H&sub2;/N&sub2; plasma in the etch chamber after pattern transfer): Removes the most reactive residues (halide salts, loose polymer) before the wafer is exposed to air, preventing corrosion and reducing the ex-situ clean burden.
• Ex-situ thorough clean (dedicated plasma cleaner or wet bench): Removes remaining stubborn residues with optimized chemistry, power, and time without impacting etch chamber throughput or cleanliness.

For chlorine-based metal etch processes (Al, Ti, W), the in-situ clean step is not optional — AlCl&sub3; and TiCl_x residues are hygroscopic and begin corroding the metal within minutes of air exposure.

7) Contamination Monitoring

Effective post-etch cleaning requires verification that residues have been fully removed. The following techniques are used for process development, qualification, and monitoring:

7.1 Monitoring Techniques

Practical tip: For routine process monitoring, contact angle measurement is the fastest and cheapest indicator of cleaning effectiveness. A clean, oxide-terminated Si surface has a contact angle of <10°. If the contact angle is >30° after cleaning, organic residues remain. For quantitative residue characterization during process development, XPS is the gold standard.

8) Process Integration Workflow

The following table provides recommended cleaning sequences for common etch process types:

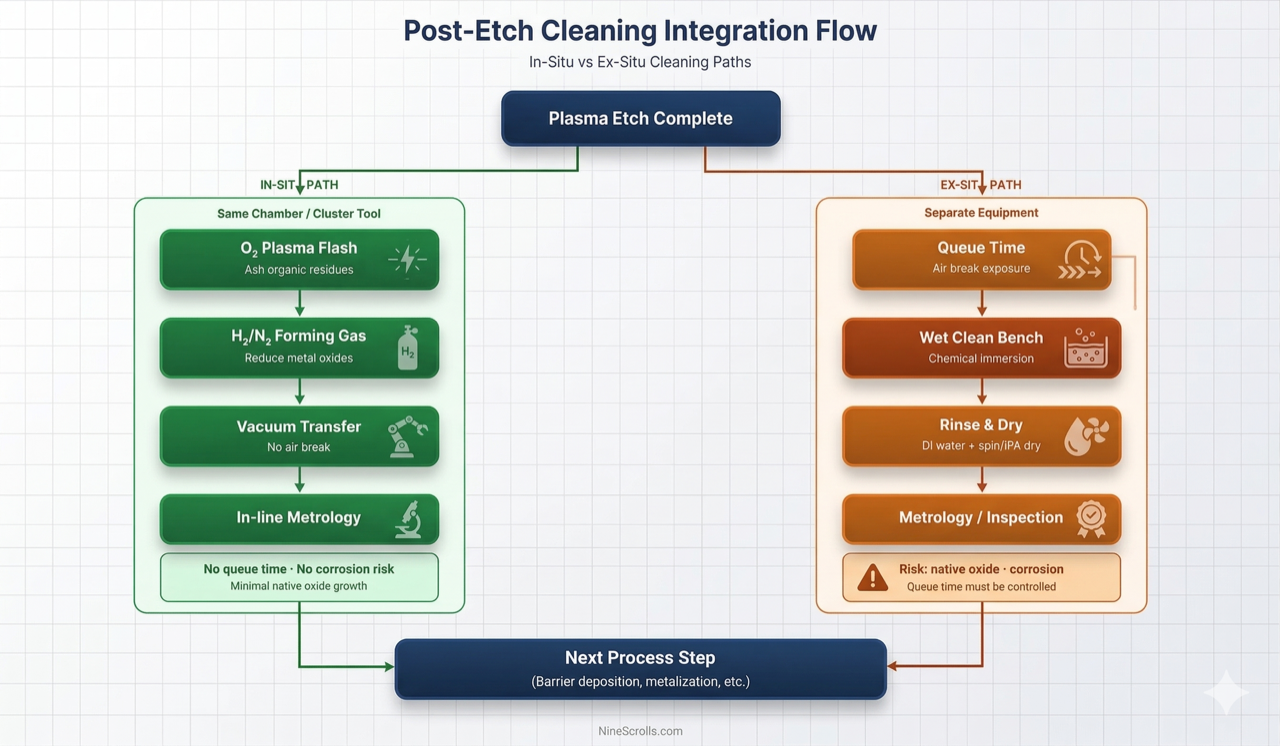

Figure 3: Process integration pathways — in-situ cleaning within the cluster tool eliminates queue time and air exposure risks, while ex-situ wet cleaning requires careful queue time management to prevent native oxide growth and corrosion

9) Common Cleaning Failures and Troubleshooting

10) Frequently Asked Questions
