Researchers at Qufu Normal University showed that a reactive-ion etcher can do more than remove material: under SF₆ plasma, an RIE-100 system self-organizes ordered composite nanotube arrays through an unusual reaction among the silicon-dioxide layer, fluoride ions, and the aluminum sample stage. The resulting ~330 nm tubes act as a strong surface-enhanced Raman (SERS) substrate, with an enhancement factor of 1.8 × 10⁶ — a reminder that an etcher can be a nanostructure-synthesis tool, not just a subtractive one.

Highlights

An RIE-100 reactive ion etcher self-organizes ordered composite nanotube arrays from SF₆ plasma byproducts — a constructive, not subtractive, use of an etcher.
The formation mechanism is pinned down by four independent lines of evidence (time series, silicon control, no-aluminum control, XPS).
XPS proves the walls are an Al–F–O–C composite (44.5 at% F, 10.8 at% Al) — the fluoride chemistry and the aluminum sample stage are built into the structure.
~330 nm tubes / ~60 nm walls give a SERS enhancement factor of 1.8 × 10⁶; as a demonstration, SERS + machine learning classified four pesticides at ≥95% accuracy (with spectral preprocessing).
Published in ACS Applied Nano Materials, 2025, 8, 9544–9554 (RIE-100, Beijing Zhongke Tailong Electronic Technology).

Why This Paper Matters

Reactive ion etching is almost always framed as a subtractive process — removing material to transfer a pattern. This work shows the same tool operating in a constructive regime: the plasma's own reaction byproducts redeposit and self-organize into a functional nanostructure. That reframes a reactive-ion etcher from "pattern transfer" to "nanostructure synthesis," which is the genuinely transferable lesson here — independent of the SERS or pesticide-sensing application that motivated the study.

The Composite Nanotube Formation Mechanism

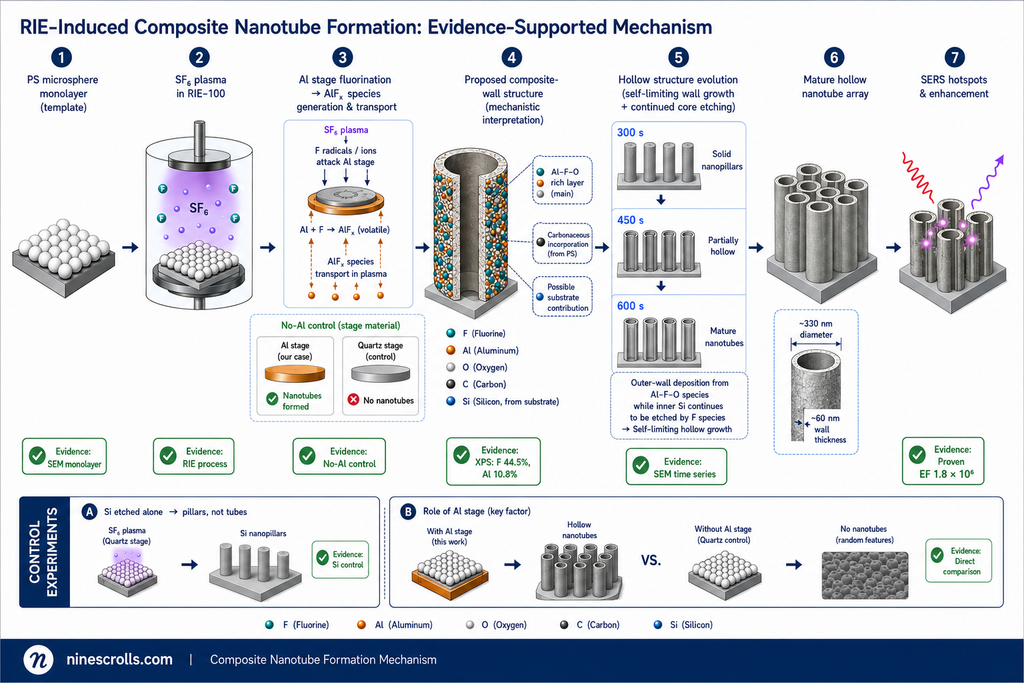

Composite nanotube array formation mechanism in an RIE-100: PS microsphere template, SF₆ plasma, SiO₂ exposure, aluminum sample-stage participation, Al–F–O–C composite wall growth, nanotube evolution, and SERS hotspot generation — How an RIE-100 self-organizes composite nanotube arrays: a self-assembled polystyrene-microsphere template defines the lattice; SF₆ plasma drives a reaction among the SiO₂ layer, fluoride radicals, and aluminum liberated from the sample stage; the byproducts redeposit as composite Al–F–O–C walls that grow into hollow tubes (~330 nm dia, ~60 nm walls), creating dense SERS hotspots.

Starting from a self-assembled monolayer of polystyrene microspheres as a template, SF₆ plasma in the RIE-100 attacks the exposed regions. Rather than simply etching downward, reaction products involving the SiO₂ layer, fluoride radicals from SF₆, and aluminum liberated from the sample stage redeposit and self-organize into composite walls around each template site. Over roughly 300–600 s the walls thicken and define hollow tubes. Critically, the walls are not silicon: XPS shows an aluminum–fluorine–oxygen–carbon composite (F 44.5, O 23.1, C 21.6, Al 10.8 at%) — direct evidence that both the fluoride chemistry and the aluminum stage are built into the final structure.

Four Independent Lines of Evidence

The mechanism is not inferred from the final image — it is pinned down by four independent controls, each isolating one part of the story:

Time series. SEM at 300 / 350 / 500 / 600 s shows progressive wall growth and tube definition.
Silicon control. Silicon etched alone under the same conditions forms pillars/cones — not tubes — so the tube geometry is not a plain silicon-etch artifact.
No-aluminum control. An oxide layer etched without the aluminum stage yields different structures, showing the aluminum stage is causally required.
XPS composition. The finished walls are an Al–F–O–C composite, chemically confirming the proposed reaction pathway.

Performance Outcomes

The arrays are an effective SERS substrate: an enhancement factor of 1.8 × 10⁶ for 4-ATP (10⁻⁷ M detected on the array versus 10⁻¹ M on bare silicon). As an application demonstration, the substrates detected four pesticides — carbendazim, carbaryl, thiram, and thiabendazole — and pairing the spectra with machine learning reached ≥95% classification accuracy with spectral preprocessing. The raw-spectra baselines were more modest (SVM 70%, k-NN 66%, decision tree 51%; AUC 0.79–0.87), a useful reminder that the preprocessing pipeline — not the substrate alone — carries much of the classifier's performance.

Key numbers — read the paper in 60 seconds

Tube diameter — ~330 nm
Wall thickness — ~60 nm
SERS enhancement factor — 1.8 × 10⁶
Wall composition (XPS) — 44.5 at% F, 10.8 at% Al (Al–F–O–C composite)
Pesticide ML accuracy — ≥95% with spectral preprocessing (51–70% raw)

What It Means for Plasma Nanofabrication

Self-organized structure formation widens what a reactive-ion etcher is for. The same levers that govern conventional etching — gas chemistry, chamber hardware, and exposure time — also control this constructive regime, connecting it to broader reactive ion etching, plasma etching fundamentals, and nanofabrication practice. Fabricating a functional nanostructure directly in an etcher — without a separate deposition or templating tool — is an attractive route for sensing and surface engineering of emerging materials.

Equipment Used

A Beijing Zhongke Tailong RIE-100 reactive ion etcher operating with SF₆ plasma chemistry. For the underlying process principles, see our Reactive Ion Etching guide.

References

Liu, S., Song, J., Feng, S., Li, J., Wang, X., Wang, X., Wang, Y. & Liu, G. "Composite Nanotube Arrays for Pesticide Detection Assisted with Machine Learning Based on SERS Effect." ACS Applied Nano Materials 8, 9544–9554 (2025). doi:10.1021/acsanm.5c01351
