RIE & ICP‑RIE System Maintenance and Troubleshooting Handbook

By NineScrolls Engineering · 2026-04-03 · 14 min read · Nanotechnology

Target Readers: Equipment engineers, process engineers, maintenance technicians, lab managers, and facilities teams responsible for operating, maintaining, and repairing RIE and ICP‑RIE plasma etching systems. Engineers experiencing etch‑rate drift, particle excursions, ignition failures, or unexpected process shifts will find the troubleshooting sections especially valuable.

TL;DR Summary

Preventive maintenance (PM) is the single most effective way to maximize uptime, process reproducibility, and equipment lifespan for RIE and ICP‑RIE systems. This handbook provides tiered PM schedules — from daily visual checks through annual overhauls — covering every critical subsystem: vacuum (pump, chamber seals, gauges), RF power (generator, matching network, electrodes), gas delivery (MFCs, lines, filters), and temperature control (chiller, ESC, helium backside cooling). It then catalogs the most common fault symptoms (ignition failure, etch‑rate drift, non‑uniformity, particle spikes, DC‑bias anomalies, endpoint detection errors) with structured root‑cause analysis and step‑by‑step corrective actions. Post‑maintenance qualification procedures, spare‑parts inventory guidance, and safety protocols round out the handbook — everything a maintenance team needs to keep an etcher running at peak performance.

1) Why Preventive Maintenance Matters

Reactive ion etching systems operate in one of the harshest environments in semiconductor fabrication: energetic ions, chemically aggressive radicals (F*, Cl*, O*), UV radiation, and thermal cycling all attack chamber internals continuously. Without a structured maintenance program, the consequences are predictable and expensive:

Process drift: Gradual buildup of polymer deposits and electrode erosion shift etch rate, selectivity, and uniformity out of specification
Particle excursions: Flaking deposits from chamber walls and liners land on wafers, causing defects and yield loss
Unplanned downtime: Catastrophic failures (pump seizure, RF arc, vacuum leak) halt production and often damage expensive components
Safety hazards: Degraded exhaust seals or interlock failures can expose personnel to toxic process gases (Cl₂, BCl₃, NF₃)

A well‑executed PM program converts unpredictable failures into scheduled events, reduces cost of ownership by 20–40%, and extends the useful life of major assemblies (turbo pumps, RF generators, electrodes) by 2–3×. The following sections provide a complete, tiered maintenance framework for both CCP‑RIE and ICP‑RIE architectures.

2) System Architecture: What Needs Maintenance

Before diving into schedules, it helps to identify the major subsystems and their wear mechanisms. The table below maps each subsystem to its primary failure modes and the maintenance actions that prevent them.

Subsystem	Key Components	Primary Failure Modes	Preventive Actions
Vacuum System	Turbo pump, dry pump, gate valve, chamber seals (O‑rings), pressure gauges	Pump degradation, seal leaks, gauge drift, corrosion	Pump oil/tip‑seal replacement, O‑ring inspection, leak checks, gauge calibration
RF Power	RF generator(s), matching network, powered electrode, ICP coil/antenna	Reflected power increase, arcing, electrode erosion, capacitor degradation	Match network inspection, electrode surface check, coil/window cleaning, cable inspection
Gas Delivery	MFCs, gas lines, filters, showerhead/gas ring, shut‑off valves	MFC drift, particle shedding, line corrosion, showerhead clogging	MFC calibration verification, filter replacement, showerhead cleaning/replacement
Temperature Control	ESC (electrostatic chuck), chiller, He backside cooling, chamber wall heaters	Coolant flow reduction, ESC dielectric damage, thermocouple drift, He leak	Coolant change, ESC surface inspection, thermocouple calibration, He leak test
Endpoint Detection	OES spectrometer, laser interferometer, viewport	Viewport coating, fiber degradation, signal noise	Viewport cleaning, fiber inspection, signal baseline check
Safety & Interlocks	Door interlocks, gas leak detectors, exhaust pressure sensors, EMO circuits	Sensor drift, relay fatigue, wiring degradation	Interlock functional tests, sensor calibration, EMO verification

3) Preventive Maintenance Schedules

The following tiered schedule balances thoroughness against downtime cost. Frequencies assume moderate utilization (~60–80% uptime); adjust intervals upward for light‑use research tools or downward for 24/7 production systems.

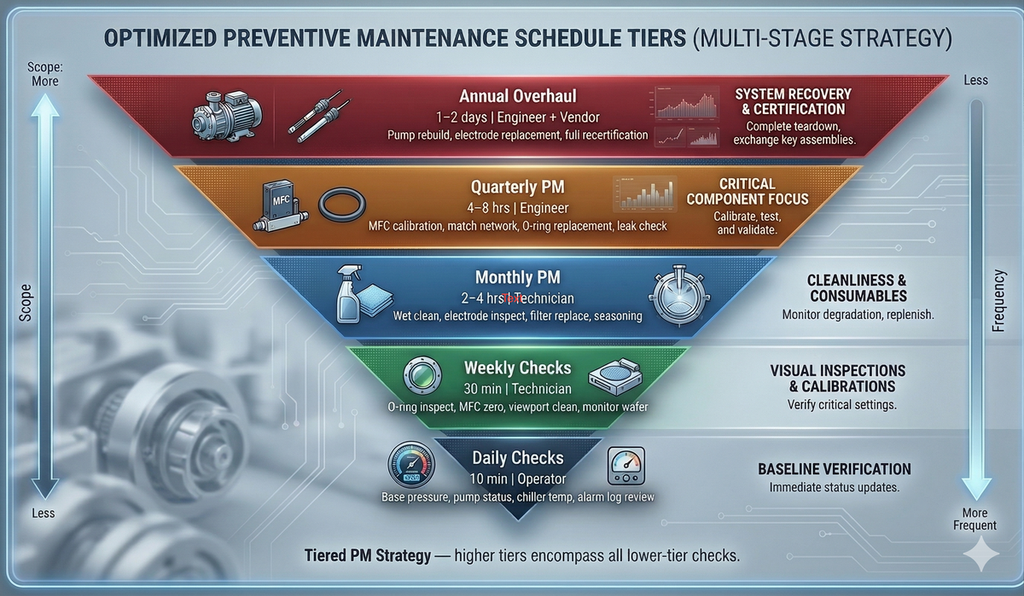

Preventive Maintenance Schedule Tiers — Inverted pyramid showing five PM levels from daily operator checks to annual overhauls, with scope increasing upward and frequency increasing downward

Figure 1: Tiered PM strategy — higher tiers include all lower-tier checks. Frequency increases toward the base; scope increases toward the top.

3.1 Daily Checks (Operator, ~10 min)

Verify base pressure reaches specification (<5 × 10⁻⁶ Torr for RIE, <1 × 10⁻⁶ Torr for ICP‑RIE) — log the value
Check turbo pump speed (should be at rated RPM ±2%), bearing temperature, and vibration indicator
Confirm chiller temperature is within setpoint ±0.5°C and coolant level is adequate
Inspect chamber viewport for excessive coating (endpoint detection degradation)
Review system fault/alarm log from the previous 24 hours
Run a short O₂ or Ar plasma clean if the previous process used heavy polymer chemistries (C₄F₈, CHF₃)

3.2 Weekly Checks (Technician, ~30 min)

Wipe down chamber lid seal area and inspect O‑ring for discoloration, hardening, or compression set
Check gas cabinet status: cylinder pressures, regulator output pressures, purge system functionality
Verify MFC zero reading (should be <0.2% of full scale with gas off)
Clean viewport with appropriate solvent (IPA for organic deposits, dilute HF for oxide films if applicable)
Run a standard process on a monitor wafer and compare etch rate and uniformity to baseline
Inspect foreline (exhaust line) for excessive powder buildup — especially for Si and metal etch processes

3.3 Monthly Maintenance (Technician, 2–4 hours)

Full chamber wet clean: remove liners/shields, soak in appropriate solvent, ultrasonic clean, DI rinse, N₂ blow dry
Inspect electrode surface for erosion, pitting, or discoloration — measure thickness if gauge is available
Check ICP dielectric window (quartz/alumina) for etching, deposition, or cracks
Replace in‑line gas filters (0.003 µm point‑of‑use filters)
Perform He backside leak rate test on ESC (acceptable: <2 sccm at operating pressure)
Calibrate pressure gauges (Baratron, Pirani/convection) against a known reference
Inspect RF cables and connectors for corrosion, heating marks, or loose fittings
Run chamber seasoning recipe (typically 30–60 min) and qualify with monitor wafer

3.4 Quarterly Maintenance (Engineer, 4–8 hours)

Full MFC calibration verification using a flow calibrator or rate‑of‑rise method
Inspect and clean matching network: check capacitors for discoloration/swelling, clean contacts, verify tuning range
Inspect ICP coil or antenna: check for erosion, discoloration, or inter‑turn arcing marks
Replace chamber O‑rings (lid seal, viewport, load‑lock) — even if they look acceptable
Perform comprehensive leak check (He leak detector, <1 × 10⁻⁹ atm·cc/s)
Verify all safety interlocks: door switch, gas leak detector, exhaust pressure, cooling water flow, EMO
Clean or replace foreline trap / scrubber media
Review RF generator forward/reflected power trending data — flag any upward trend in reflected power

3.5 Annual Overhaul (Engineer + Vendor, 1–2 days)

Turbo pump: bearing inspection or replacement (or return to vendor for rebuild at ~40,000 hours)
Dry pump: tip seal / screw replacement, exhaust valve inspection
RF generator: internal inspection, fan filter replacement, output power calibration
Replace electrode assembly if erosion exceeds manufacturer threshold (typically >10% thickness loss)
Replace ICP dielectric window if etch depth exceeds 0.5 mm or any cracks are visible
Full ESC refurbishment: check dielectric integrity (Hi‑pot test), He channel cleaning, clamp force verification
Recertify all pressure transducers and thermocouples against NIST‑traceable standards
Update system software/firmware if vendor patches are available
Full system qualification: base pressure, leak rate, etch rate, uniformity, selectivity, particle count

4) Vacuum System Maintenance

The vacuum system is the foundation of any RIE/ICP process. Vacuum integrity directly affects base pressure, gas residence time, plasma stability, and contamination levels.

4.1 Turbo Molecular Pump

Normal indicators: Rated speed ±2%, bearing temperature <60°C, current draw within spec, vibration level low
Warning signs: Speed fluctuation, bearing temperature rising, unusual noise (grinding, whining), increased spin‑down time
Action: If bearing temperature exceeds 70°C or noise increases, schedule pump removal. Running a degraded turbo pump risks catastrophic bearing failure and rotor crash — potentially releasing metallic particles into the chamber

4.2 Dry (Backing) Pump

Roots/claw pumps: Monitor exhaust pressure and motor current. Increasing values indicate tip seal wear or process byproduct buildup
Scroll pumps: Monitor tip seal temperature. Replace tip seals at manufacturer‑recommended intervals (typically every 15,000–25,000 hours)
Corrosive process gases: For Cl₂ and BCl₃ processes, ensure N₂ purge flows are active during and after process to prevent corrosive condensation in the pump

4.3 Chamber Seals & Leak Checking

Even minor leaks introduce O₂ and H₂O into the process environment, causing:

Etch rate reduction (oxygen scavenges fluorine radicals)
Profile degradation (increased lateral etching)
Native oxide regrowth during etch (especially problematic for III‑V materials)
Particle generation from oxide/hydroxide formation on chamber walls

Leak check procedure: Pump chamber to base pressure → close gate valve → monitor pressure rise over 10 minutes. Acceptable leak‑up rate: <2 mTorr/min for RIE, <1 mTorr/min for ICP‑RIE. If the rate exceeds specification, use a He leak detector to localize the leak — systematically spray He around seals, feedthroughs, and viewport starting from the top of the chamber (He rises).

5) RF Power System Maintenance

RF power delivery is the heart of plasma generation. Problems here manifest as ignition failures, unstable plasma, DC‑bias anomalies, and etch non‑uniformity.

5.1 RF Generator

Parameter	Normal Range	Warning Threshold	Action Required
Reflected power	<5% of forward power	>10% of forward power	Check matching network, cables, electrode condition
DC self‑bias	Within ±10% of baseline	>15% deviation	Inspect electrode, check chamber cleanliness, verify gas flows
Frequency (auto‑tune)	13.56 MHz ±0.05%	Sustained off‑center tuning	Match network capacitor wear or impedance change
Generator internal temp	<50°C	>60°C	Clean/replace fan filters, check airflow, verify cooling

5.2 Matching Network

The matching network transforms the 50 Ω generator output to match the complex plasma impedance. It contains variable capacitors and inductors that are among the most mechanically stressed components in the system.

Variable capacitors: Check for arcing marks on plates, verify full range of travel (motor should reach both endpoints), listen for grinding during tuning
Fixed capacitors (mica/ceramic): Inspect for cracks, discoloration, or swelling — these indicate thermal stress or voltage breakdown
RF connections: Tighten all silver‑plated contacts to specified torque. Loose connections cause local heating and intermittent reflected power spikes
ICP‑RIE specific: The ICP source typically has its own matching network. Both match networks must be serviced — a degraded ICP match will reduce plasma density even if the bias match is perfect

5.3 Electrodes & ICP Coil

Powered electrode (RIE): Typically anodized aluminum or silicon. Inspect for pitting, hot spots, and dielectric breakdown. Silicon electrodes should be replaced when thickness loss exceeds 10% or surface roughness increases noticeably
ICP coil/antenna: Usually a copper or aluminum spiral/helical coil above a dielectric window. Check for inter‑turn arcing (dark spots between turns), erosion from sputtered window material, and coolant channel integrity (water‑cooled coils)
Dielectric window (ICP): Quartz or alumina disc separating the coil from the vacuum. This is a wear item — plasma etches the vacuum side while process deposits accumulate. Replace when etch depth >0.5 mm or cracks appear

6) Gas Delivery System Maintenance

6.1 Mass Flow Controllers (MFCs)

MFCs are precision instruments that degrade over time due to corrosive gases, particle buildup on the sensor, and mechanical wear of the control valve.

Zero check (weekly): With gas off and MFC powered, reading should be <0.2% of full scale. Persistent zero offset indicates sensor contamination
Span check (quarterly): Verify actual flow at 20%, 50%, and 80% of full scale using a volumetric flow calibrator or rate‑of‑rise method. Acceptable deviation: ±1% of setpoint or ±0.2% of full scale, whichever is greater
Corrosive gas MFCs: Cl₂, BCl₃, and HBr MFCs degrade faster. Consider annual replacement of sensor/valve assemblies for these gases in production environments

6.2 Gas Lines, Filters & Showerhead

Point‑of‑use filters: Replace 0.003 µm sintered metal filters monthly. Clogged filters cause flow restriction; failed filters allow particles to reach the chamber
Showerhead / gas distribution ring: Inspect holes for clogging (especially after metal etch processes). Clean with ultrasonic bath or replace. Clogged holes cause gas distribution non‑uniformity → etch non‑uniformity
Gas lines: Inspect electropolished stainless steel lines for discoloration (internal corrosion). For Cl₂/BCl₃ lines, purge with N₂ after each process lot to prevent corrosive condensation
Shut‑off valves: Pneumatic valves should actuate cleanly (audible click). Sluggish valves indicate diaphragm wear — replace before they fail to seal (safety risk with toxic gases)

7) Temperature Control System

Wafer temperature during etching directly affects etch rate, selectivity, profile, and polymer deposition behavior. A 10°C temperature error can shift etch rate by 10–20% and dramatically change sidewall profile.

7.1 Electrostatic Chuck (ESC) & Helium Backside Cooling

ESC surface: Inspect for scratches, dielectric damage (caused by wafer sliding or arcing), and embedded particles. Damaged dielectric reduces clamping force → poor thermal contact → temperature non‑uniformity
He backside pressure: Typical range 5–15 Torr. Log the He flow rate needed to maintain setpoint pressure — increasing flow indicates ESC surface degradation or wafer bow changes
He leak rate test: With a wafer clamped, He flow should stabilize at <2 sccm (varies by ESC design). Excessive He leak contaminates the process and indicates ESC seal wear
Clamp voltage (Coulomb ESC): Verify clamping and de‑clamping voltages. Residual charge after de‑clamp ("sticking") indicates dielectric degradation

7.2 Chiller & Coolant

Temperature stability: Chiller should maintain setpoint within ±0.5°C under process load
Coolant: Replace de‑ionized water or fluorinated coolant (Galden, Fluorinert) per manufacturer schedule. Measure resistivity of DI water coolant — it should be >1 MΩ·cm to prevent galvanic corrosion and electrical leakage
Flow rate: Monitor flow through electrode cooling channels. Reduced flow (from scale buildup or algae in DI systems) causes electrode hot spots → etch non‑uniformity

8) Common Fault Symptoms & Root‑Cause Analysis

This section catalogs the most frequently encountered faults in RIE/ICP‑RIE systems, organized by symptom for quick field reference.

8.1 Plasma Ignition Failure

Possible Cause	Diagnostic	Corrective Action
Chamber pressure too low/high	Check Baratron reading during gas flow	Verify throttle valve position, check for leaks or pump degradation
Gas not flowing	MFC reads zero or setpoint but no pressure rise	Check shut‑off valve, cylinder pressure, MFC operation
Matching network out of range	Match capacitors at mechanical endpoint, high reflected power	Inspect match network, reset tuning preset, check for impedance change (dirty electrode/chamber)
Electrode contamination / heavy deposit	Visible deposits on electrode, abnormal DC bias at known conditions	Clean or replace electrode, run extended O₂ plasma clean
RF cable / connector failure	Intermittent ignition, visible heating/discoloration at connector	Replace cable, clean and tighten connectors
ICP window excessively coated (ICP‑RIE)	Poor ICP coupling, low plasma density, reduced optical emission	Clean or replace ICP dielectric window

8.2 Etch Rate Drift

Drift Direction	Likely Causes	Diagnostic Steps
Decreasing etch rate	Polymer buildup on chamber walls (absorbing radicals), electrode erosion (lower bias), MFC delivering less gas, pump degradation (higher residence time → radical recombination), vacuum leak (O₂ scavenging F radicals)	Check DC bias vs baseline, verify MFC flow, check base pressure, perform leak check, inspect chamber condition
Increasing etch rate	Chamber walls clean (after PM — "first wafer effect"), temperature control failure (wafer running hot), MFC delivering excess gas, contamination acting as catalyst	Verify wafer temperature, check MFC calibration, run seasoning wafers to stabilize chamber wall condition

Key diagnostic: If DC self‑bias has shifted proportionally with etch rate, the root cause is likely RF‑related (electrode, match network, generator). If DC bias is unchanged but etch rate drifted, the cause is chemical (gas flow, chamber wall condition, temperature).

8.3 Etch Non‑Uniformity

Pattern	Likely Causes	Corrective Action
Center‑fast	Gas flow concentrated at center, edge‑ring erosion, ESC edge cooling issue	Check showerhead, inspect/replace edge ring, verify He backside pressure profile
Edge‑fast	Chamber wall condition (radical source), showerhead center holes clogged, ESC center cooling degradation	Clean chamber walls, inspect showerhead, check ESC cooling channels
Asymmetric (left‑right)	Gas inlet asymmetry, exhaust port asymmetry, localized deposit on electrode, tilted wafer	Check gas ring/showerhead hole pattern, verify pump port symmetry, clean electrode, check wafer seating

8.4 Particle Excursions

After PM: Inadequate chamber seasoning — run 20–50 seasoning wafers with a standard polymer‑forming recipe before production
Gradual increase: Chamber wall deposit reaching critical thickness and flaking — schedule PM wet clean
Sudden spike: Mechanical event (wafer breakage, O‑ring fragment, electrode crack) — open chamber and perform visual inspection
Edge‑concentrated particles: Focus ring / edge ring degradation, wafer clamping issue, or O‑ring shedding
Use SEM‑EDX on collected particles to identify composition → trace back to source component (see Section 2 in our Chamber Materials & Contamination Control guide for detailed methodology)

8.5 DC Bias Anomalies

Bias lower than expected: Electrode erosion (thinner electrode → larger gap → lower capacitive coupling), heavy polymer deposit on electrode (insulating layer), or matching network degradation
Bias higher than expected: Chamber walls too clean after PM (less surface area for electron collection), new/thick electrode, or gas chemistry shift
Bias unstable (fluctuating): Arcing in chamber (check for damaged insulation, sharp edges, contamination), intermittent RF connection, or matching network hunting (capacitor motor oscillating)

8.6 Endpoint Detection Errors

False endpoint / no endpoint signal: Viewport coated (clean viewport), OES fiber degraded (replace fiber), wrong wavelength selected, signal‑to‑noise too low (increase integration time or change wavelength)
Endpoint overshoot: Algorithm delay setting too long, etch rate faster than expected (recalibrate overetch time), or interference from chamber wall etching contributing to signal

9) Troubleshooting Decision Trees

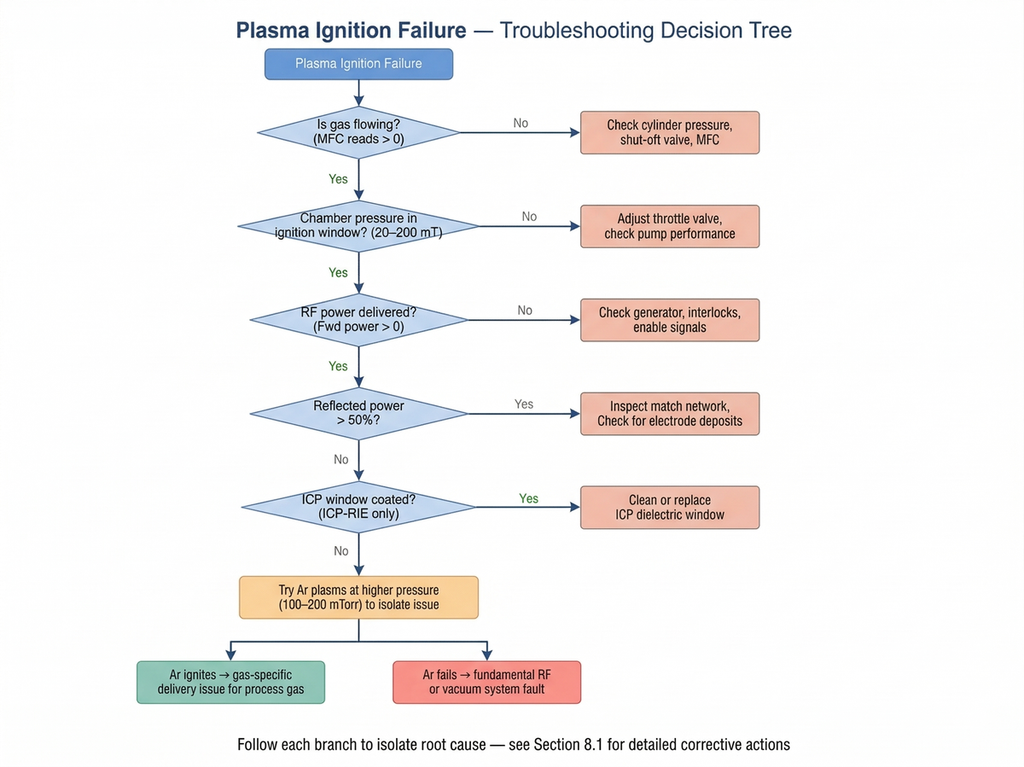

Plasma Ignition Failure Troubleshooting Decision Tree — Step-by-step flowchart checking gas flow, chamber pressure, RF power delivery, reflected power, and ICP window condition to isolate root cause

Figure 2: Plasma ignition failure decision tree — follow each branch to isolate the root cause systematically.

9.1 Plasma Won't Ignite

Is gas flowing? (Check MFC reading and chamber pressure rise) → If no: check cylinder, shut‑off valve, MFC
Is chamber pressure in ignition window (typically 20–200 mTorr)? → If no: adjust throttle valve or check pump
Is RF power being delivered? (Check forward power reading) → If no: check generator, interlock status, enable signals
Is reflected power >50%? → If yes: matching network fault, cable issue, or gross impedance mismatch (very dirty chamber)
Has the ICP window been checked? (ICP‑RIE only) → If coated: clean/replace window
Try igniting at higher pressure (100–200 mTorr) with Ar gas to rule out gas chemistry issues
If Ar ignites but process gas doesn't: possible gas delivery issue for that specific gas channel

9.2 Etch Rate Out of Spec

Compare DC bias to baseline → If bias shifted: RF system issue (go to Section 5)
If bias is normal: check wafer temperature (He pressure, chiller setpoint) → If temperature is off: go to Section 7
If temperature is normal: verify MFC calibration for all process gases
If MFCs are correct: check base pressure and perform leak check → Elevated base pressure or leak rate indicates vacuum system issue (go to Section 4)
If all above are normal: chamber wall condition has shifted — perform wet clean and seasoning

10) Post‑Maintenance Qualification

After any maintenance activity that involves opening the chamber, replacing components, or adjusting calibrations, the system must be re‑qualified before production use.

10.1 Qualification Sequence

Leak check: Base pressure < spec, leak‑up rate < spec, He leak check < 1 × 10⁻⁹ atm·cc/s
Pump‑down test: Time to reach base pressure should be within historical range (±20%)
Chamber seasoning: Run 20–50 cycles of a standard conditioning recipe (typically the dominant production recipe or an O₂/Ar clean followed by a polymer‑forming step)
Burn‑in wafers: Process 3–5 dummy wafers with the production recipe — do not measure these, they stabilize the chamber
Monitor wafer test: Run 3 consecutive monitor wafers, measure etch rate (49‑point or 13‑point map), uniformity, and particle count
Acceptance criteria:

Parameter	Typical Spec (Research)	Typical Spec (Production)
Etch rate	Within ±10% of baseline	Within ±3% of baseline
Uniformity (1σ)	<5%	<2%
Particle count (>0.2 µm)	<50 adders per wafer	<10 adders per wafer
DC bias	Within ±15% of baseline	Within ±5% of baseline
Base pressure	<5 × 10⁻⁶ Torr	<1 × 10⁻⁶ Torr

11) Spare Parts & Consumables Management

Stocking the right spares prevents PM from becoming unplanned downtime. The table below categorizes parts by replacement frequency and criticality.

Category	Items	Typical Lifetime	Recommended Stock
High‑frequency consumables	O‑rings (Viton, Kalrez), gas filters, viewport windows	1–3 months	3–6 months supply
Medium‑frequency consumables	Electrodes, liners/shields, edge rings, showerheads, ICP windows	3–12 months	1–2 spares each
Long‑life spares	Turbo pump (rebuild kit), RF cables, MFC assemblies, matching network capacitors	1–3 years	1 spare (critical path items)
Emergency spares	RF generator, turbo pump, ESC assembly	3–10 years	Vendor exchange agreement or 1 loaner unit

12) Safety Considerations

RIE/ICP‑RIE systems present multiple hazards that maintenance personnel must be aware of:

Toxic gases: Cl₂, BCl₃, NF₃, HBr, and SiCl₄ are toxic and/or corrosive. Always verify gas cabinet ventilation and exhaust integrity before and after maintenance. Use portable gas detectors when opening gas‑wetted components
RF radiation: Never bypass RF interlocks. RF energy can cause burns and interfere with medical devices. Ensure chamber is properly shielded and all panels are in place before energizing RF
High voltage: DC self‑bias can reach −500 V or more. ESC clamping voltage can be 1–2 kV. Verify RF generators are powered off and capacitors are discharged before touching electrodes or match network components
Vacuum hazards: Rapid venting of a vacuum chamber can propel loose objects. Always vent slowly with dry N₂. Never open a chamber while under vacuum
Pinch points: Automated gate valves and load‑lock mechanisms have significant closing force. Use lockout/tagout (LOTO) procedures when working near these mechanisms
UV exposure: Plasma generates UV radiation that can damage eyes. Never look directly at the plasma through an unprotected viewport during operation

13) RIE vs ICP‑RIE: Maintenance Differences

While many maintenance procedures are shared, ICP‑RIE systems have additional complexity due to the separate ICP source.

Aspect	RIE (CCP)	ICP‑RIE
RF generators	1 (bias)	2 (ICP source + bias) — double the match network maintenance
Dielectric window	Not applicable	Critical wear item — inspect monthly, replace when etched >0.5 mm
ICP coil	Not applicable	Inspect quarterly for arcing, erosion, coolant leaks
Plasma density	10⁹–10¹⁰ cm⁻³ — moderate chamber wear	10¹¹–10¹² cm⁻³ — faster chamber wall erosion and deposit buildup
PM frequency	Lower (less aggressive plasma)	Higher (more aggressive plasma, additional ICP‑specific items)
Troubleshooting complexity	Single RF system	Must diagnose ICP source vs bias issues independently

14) Frequently Asked Questions (FAQ)

How often should I perform a full chamber wet clean?

For moderate utilization (1,000–3,000 RF‑hours/month), a monthly wet clean is typical. However, the optimal interval depends on your process chemistry: heavy polymer‑forming processes (C₄F₈, CHF₃) may require bi‑weekly cleans, while light Ar/O₂ processes may allow 6–8 week intervals. The best practice is to track particle counts on weekly monitor wafers and schedule cleans when particle counts trend upward toward your action limit (typically 50–80% of the reject spec). This data‑driven approach avoids both over‑maintenance (unnecessary downtime) and under‑maintenance (yield loss).

My etch rate dropped 15% after a PM. What went wrong?

This is almost always a chamber conditioning issue. After a wet clean, the chamber walls are pristine — they absorb reactive species (especially fluorine radicals) at a much higher rate than seasoned walls. This is called the "first wafer effect" and can persist for 20–100 wafers depending on the process. The solution is to run sufficient seasoning wafers (20–50 cycles of your dominant recipe) before running monitor wafers. If etch rate remains low after thorough seasoning, check: (1) whether the replacement electrode is the correct material and thickness, (2) whether O‑rings were installed correctly (vacuum leak → O₂ contamination → reduced F radical concentration), and (3) whether the matching network was disturbed during PM (compare reflected power and match capacitor positions to pre‑PM values).

How do I know when to replace the ICP dielectric window rather than just cleaning it?

Replace the ICP dielectric window (quartz or alumina) when any of these conditions are met: (1) visible cracks or chips, even hairline — these compromise vacuum integrity and will propagate under thermal stress; (2) measured etch depth on the vacuum‑facing surface exceeds 0.5 mm (use a depth gauge or profilometer) — excessive thinning changes the RF coupling efficiency and increases the risk of catastrophic failure; (3) persistent process drift (etch rate, uniformity) that does not resolve after cleaning — a deeply etched window changes the ICP source impedance permanently; (4) delamination of deposited films from the vacuum side that resists cleaning — embedded deposits act as a secondary plasma source and cannot be fully removed. Routine cleaning (IPA wipe for organics, gentle mechanical polishing for stubborn deposits) can extend window life, but once the window is structurally compromised or electrically altered, replacement is the only reliable solution.

What should I do if the matching network can't find a stable tune?

A matching network that "hunts" (capacitor motors continuously adjusting without settling) indicates a significant impedance mismatch between the RF source and the plasma load. Systematic diagnosis: (1) check if the issue is recipe‑specific or affects all recipes — if only one recipe, the plasma impedance for that condition may be outside the match network's tuning range (adjust pressure or power to shift impedance); (2) open the match network and inspect variable capacitors for arcing marks, debris between plates, or limited travel (motor reaching mechanical stops); (3) check fixed capacitors for cracks, discoloration, or swelling; (4) measure the match network output impedance with a network analyzer if available; (5) inspect the RF cable and connections between the match and the electrode — a corroded connector or damaged cable changes the load impedance; (6) for ICP‑RIE, verify both match networks independently — a fault in one can manifest as instability in the other due to cross‑coupling.

How do I safely purge and open a chamber that was running Cl₂ or BCl₃ processes?

Chlorine‑based process residues are hygroscopic and form corrosive HCl on contact with atmospheric moisture. Safe procedure: (1) run a 5–10 minute O₂ plasma clean at moderate power to react away surface‑adsorbed chlorine species; (2) pump the chamber to base pressure and cycle‑purge with dry N₂ at least 3 times (fill to ~100 Torr, pump down, repeat); (3) vent the chamber with dry N₂ (not air) to atmospheric pressure; (4) have a portable Cl₂/HCl gas detector active at the chamber before opening; (5) wear appropriate PPE (nitrile gloves, safety glasses, lab coat — add respirator if detector shows any reading); (6) work in a well‑ventilated area, ideally with the fume hood or local exhaust running; (7) immediately place removed components (liners, electrode, O‑rings) in IPA or DI water to prevent further atmospheric reaction; (8) after maintenance, perform an extended N₂ purge before pump‑down to remove any moisture introduced during the open.

Can I use the same PM procedure for both RIE and ICP‑RIE systems?

The core chamber cleaning, seal replacement, and vacuum qualification procedures are shared between RIE and ICP‑RIE. However, ICP‑RIE systems require additional PM steps that do not apply to CCP‑RIE: (1) ICP dielectric window cleaning/replacement; (2) ICP coil inspection for inter‑turn arcing and erosion; (3) ICP matching network maintenance (separate from the bias match); (4) ICP coil coolant system checks (if water‑cooled). Additionally, because ICP plasmas are 10–100× denser than CCP plasmas, chamber wall erosion and deposit accumulation proceed faster in ICP‑RIE — so PM intervals should generally be shorter. Use the RIE PM schedule as a baseline and add the ICP‑specific items from Section 13 of this handbook.
