PLUTO vs HY Series Plasma Cleaners: Design, Performance & Selection Guide

By NineScrolls Engineering · 2026-03-28 · 12 min read · Equipment Maintenance

Target Readers: Lab managers, PIs, procurement engineers, and process engineers evaluating benchtop plasma cleaners for research, teaching, or light production. If you already know the basics of plasma cleaning, skip ahead to Section 3 (Architecture Deep-Dive) or Section 7 (Decision Flowchart).

1) Why This Comparison Matters

Choosing a plasma cleaner is one of the most consequential equipment decisions a lab makes. The system you select determines not just cleaning efficacy, but also process repeatability, sample throughput, and long-term cost of ownership. NineScrolls offers two distinct product families — the HY series and the PLUTO series — each engineered for different use cases and budget envelopes.

This guide provides a rigorous, specification-level comparison so you can match the right system to your application. For background on how plasma cleaning works, see our primer What Is a Plasma Cleaner? Principles, Types, and How It Works.

2) Product Line Overview

HY Series at a Glance

The HY family is designed for labs that need reliable plasma treatment at an accessible price point. All models feature stainless-steel chambers and are available with either RF (13.56 MHz) or mid-frequency (40 kHz) generators.

PLUTO Series at a Glance

The PLUTO family targets research labs and core facilities that demand higher power density, better uniformity, and reproducible process control.

3) Architecture Deep-Dive

3.1 Chamber Design & Materials

Both series use vacuum-sealed chambers with mechanical roughing pumps, but the construction materials differ in important ways:

• Stainless steel (HY series, PLUTO-T, PLUTO-M): Excellent chemical resistance to reactive gases (O₂, Ar, N₂, H₂, CF₄). Easy to clean. However, stainless steel is a relatively poor thermal conductor (~16 W/m·K), which means longer cooling times between runs in high-duty-cycle applications.
• Aluminum alloy 6061-T6 (PLUTO-F): Thermal conductivity of ~167 W/m·K — roughly 10× higher than stainless steel. This enables faster thermal equilibration, more uniform wall temperature, and shorter cycle times. The hard-anodized surface provides adequate corrosion resistance for standard process gases. Aluminum chambers are also lighter, simplifying installation.

Practical impact: For labs running 20+ cleaning cycles per day, the PLUTO-F’s aluminum chamber reduces thermal drift between runs, improving batch-to-batch reproducibility. For labs running fewer cycles, stainless steel is perfectly adequate and offers broader chemical compatibility (particularly with chlorine-containing gases).

3.2 Electrode Configuration

Electrode geometry is a critical — and often overlooked — differentiator between plasma cleaner models.

• HY series: Parallel-plate electrodes with a standard gas inlet. Gas enters the chamber from one side and distributes naturally via pressure equalization. This is a proven design that works well for general cleaning and surface activation.
• PLUTO-T: Similar parallel-plate configuration, but with a more optimized electrode gap for 200 W operation, providing higher power density than the HY-4L in a comparable chamber volume.
• PLUTO-M: Features a gas-shower electrode — a perforated upper electrode through which process gas is uniformly distributed across the sample area. This is the same concept used in semiconductor-grade RIE and PECVD systems. The result is significantly better treatment uniformity, particularly for larger substrates or batch processing of multiple small samples.
• PLUTO-F: Combines the gas-shower electrode design with a larger chamber and 500 W RF capability, enabling the highest radical flux and most uniform treatment area in the product line.

3.3 RF vs Mid-Frequency Excitation

This is one of the most important distinctions between the two series. For a deeper discussion, see our plasma cleaner principles guide.

When to choose MF: If your primary application is surface activation of polymers or glass before bonding/coating, and you need to treat large or irregularly shaped parts at the lowest possible cost, the mid-frequency option on the HY-4L or HY-20L is an excellent choice. The 40 kHz frequency creates a more diffuse plasma that wraps around 3D geometries effectively.

When RF is essential: If you are cleaning delicate MEMS devices, preparing samples for electron microscopy (SEM/TEM), doing photoresist descum, or need precise control over treatment intensity, RF is the better choice. The higher plasma density at 13.56 MHz delivers more reactive species per unit volume, and the lower ion energy reduces the risk of substrate damage.

4) Power Density Analysis

Raw wattage is misleading. What matters for cleaning performance is power density — the RF (or MF) power delivered per unit of chamber volume. Higher power density means more reactive species generated per unit volume, which translates to faster cleaning rates and more thorough contaminant removal.

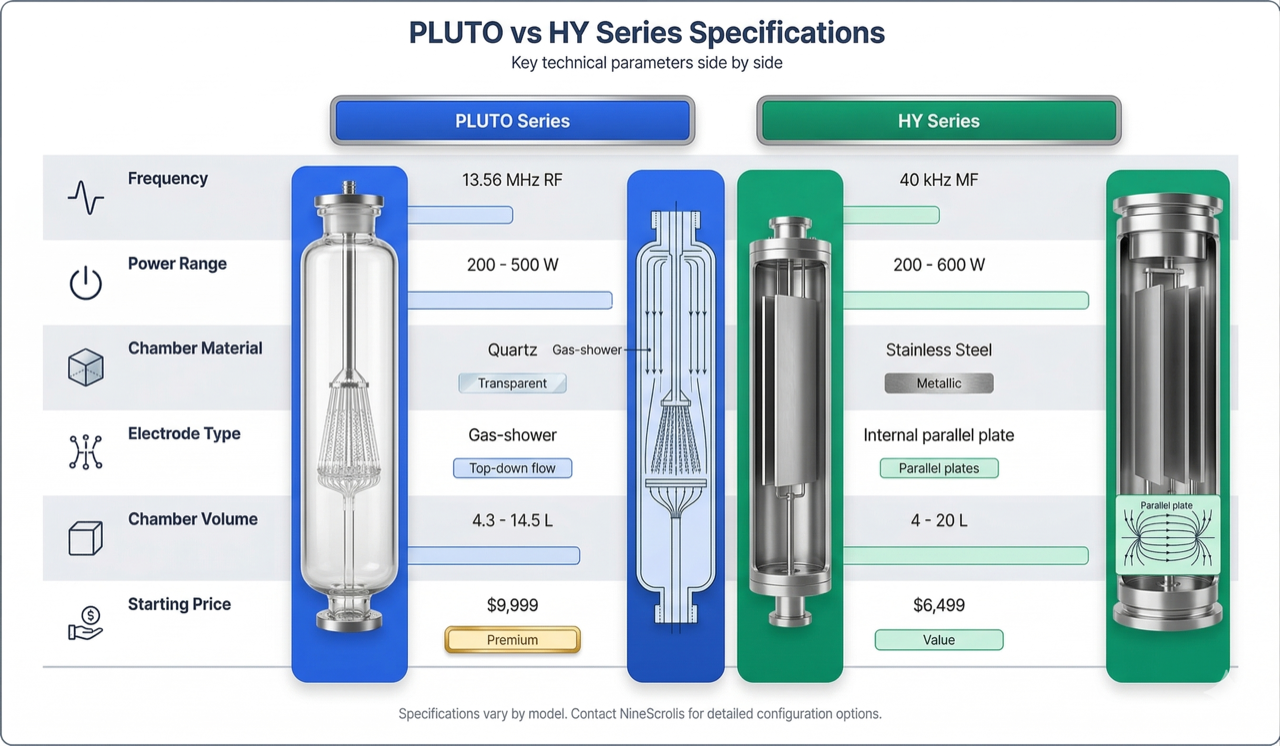

Figure 2: Head-to-head specification comparison — key differences in frequency, power range, chamber materials, electrode design, chamber volume, and starting price between the PLUTO and HY series

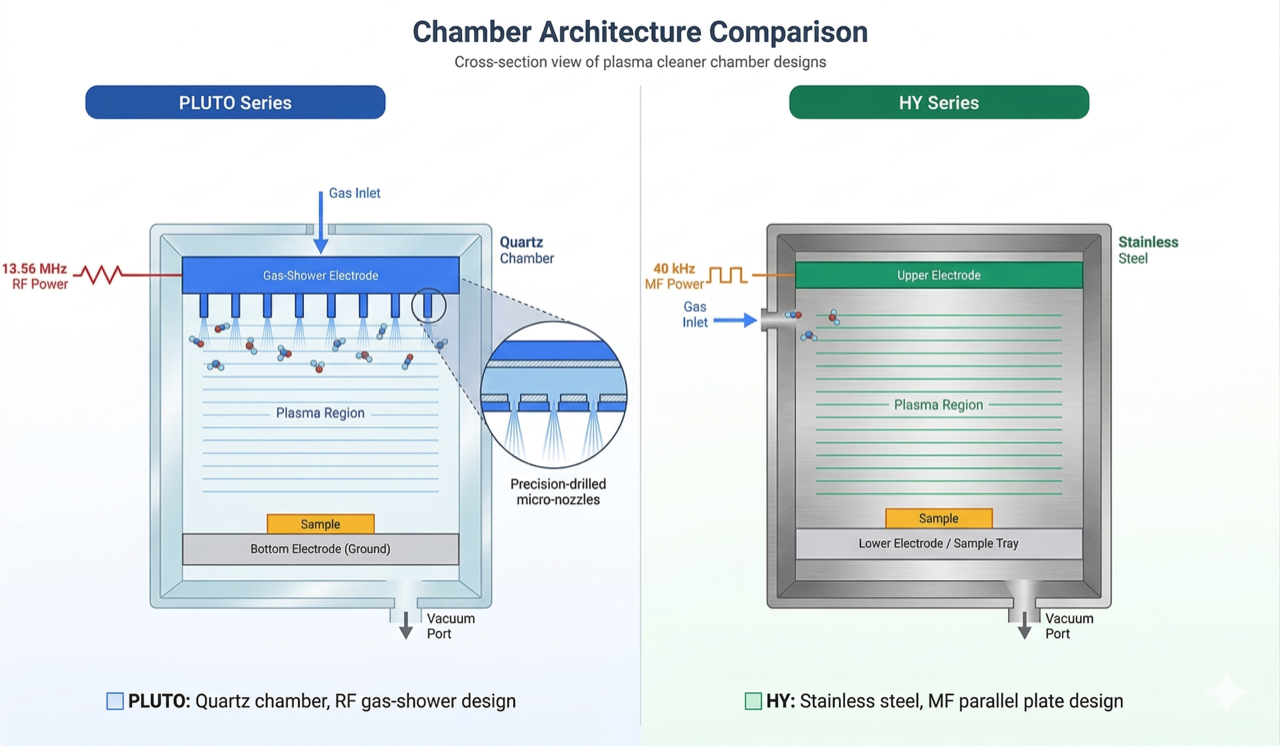

Figure 1: Chamber architecture comparison — PLUTO uses a quartz chamber with RF gas-shower electrode at 13.56 MHz, while HY uses a stainless steel chamber with internal parallel plates driven at 40 kHz mid-frequency

Key takeaways:

• The PLUTO-T has the highest RF power density in the lineup (46.5 W/L), making it the most aggressive cleaner for small batches or individual samples that need intensive treatment.
• The PLUTO-F maintains near-baseline power density (34.5 W/L) despite having a 14.5 L chamber — this is where the 500 W generator pays off. It delivers serious cleaning capability at scale.
• The HY-20L (RF) at 7.5 W/L is designed for gentler, large-batch processing where aggressive treatment is undesirable. This is ideal for polymer surface activation or cleaning geometrically complex parts.
• Mid-frequency power density numbers are not directly comparable to RF because the plasma generation mechanism differs. MF creates a lower-density plasma but with higher ion energies, so the cleaning action per watt is different in character, not simply "more" or "less."

5) Feature Comparison Matrix

Beyond power and chamber size, the two series differ in software, control, and practical features that affect day-to-day usability.

6) Application Matching Guide

The "best" plasma cleaner depends entirely on what you are cleaning, why you are cleaning it, and how often. Here is how the two series map to common applications.

6.1 Surface Activation for Bonding

If your primary goal is activating polymer, glass, or ceramic surfaces before adhesive bonding, printing, or coating:

• Best pick: HY-4L (MF) for small parts, HY-20L (MF or RF) for larger batches
• Why: Surface activation does not require high power density. The MF option provides gentle, uniform treatment at the lowest cost. The 20 L chamber can handle multiple trays of parts in a single run.
• Alternative: If you also need to do precision cleaning in the same system, choose the RF variant for more versatility.

6.2 SEM/TEM Sample Preparation

Removing hydrocarbon contamination from samples and holders before electron microscopy:

• Best pick: PLUTO-T
• Why: The compact 4.3 L chamber with 200 W RF delivers high power density for aggressive organic removal. Typical O₂ or O₂/Ar plasma at 50–100 W for 2–5 minutes is sufficient. Recipe storage (on PLUTO-M) is overkill for this application.

6.3 MEMS & Semiconductor Process Integration

Pre-bonding surface prep, photoresist descum, or post-etch residue removal in a MEMS or semiconductor R&D workflow:

• Best pick: PLUTO-M or PLUTO-F
• Why: Gas-shower electrode ensures uniform radical distribution across the substrate. Recipe storage enables process-to-process consistency and makes the system usable by multiple researchers without retraining. The PLUTO-F adds the capacity for larger substrates (up to 6" wafers) and the power headroom to handle demanding processes like thick photoresist descum.

6.4 Teaching & Demonstration Labs

Undergraduate or graduate lab courses where students learn plasma processing fundamentals:

• Best pick: HY-4L
• Why: Lowest entry cost ($6,499 for MF, $7,999 for RF). Straightforward operation with minimal training. Robust stainless-steel construction tolerates student handling. The MF option is particularly good for teaching because the visible plasma glow is more dramatic at 40 kHz, making demonstrations more engaging.

6.5 High-Throughput Core Facility

A shared-use facility serving 10+ research groups with diverse cleaning needs:

• Best pick: PLUTO-F
• Why: The 14.5 L aluminum chamber handles large batches and cools quickly between users. 500 W RF provides headroom for demanding applications. Recipe storage lets each research group save and recall their optimized process parameters, reducing setup time and user errors. The higher upfront cost is amortized across many users.

6.6 Biomedical Device & Polymer Surface Engineering

Modifying wettability of PDMS, PMMA, or other biocompatible polymers for microfluidics or cell culture:

• Best pick: HY-20L (RF or MF) or PLUTO-M
• Why: Polymer treatment often benefits from lower power density to avoid surface damage. The HY-20L’s large chamber and moderate power density are well-suited. The PLUTO-M is the upgrade path when you need gas-shower uniformity for batch consistency across multiple PDMS chips.

For a comprehensive discussion of plasma cleaner applications across industries, see our Plasma Cleaner Applications Guide.

7) Decision Flowchart

Use this structured approach to narrow your selection:

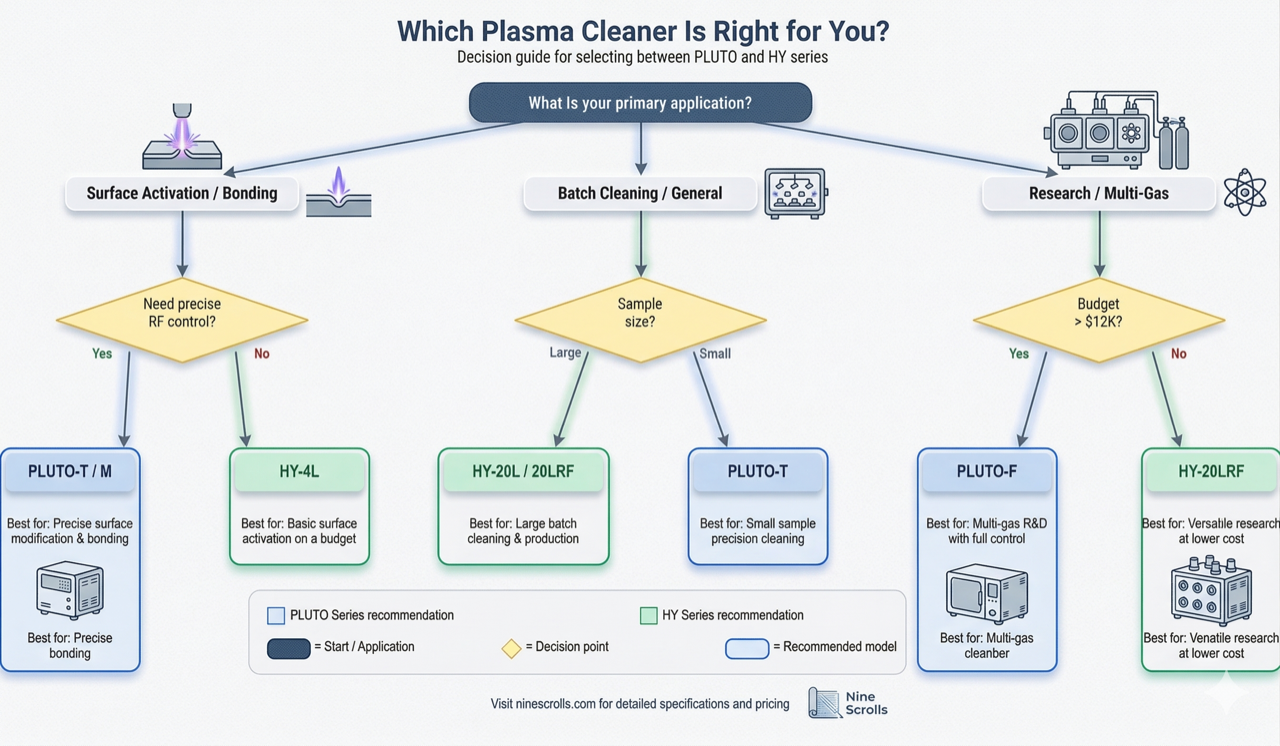

Figure 3: Selection decision tree — choose between PLUTO (blue) and HY (green) models based on your primary application, sample requirements, and budget constraints

8) Cost of Ownership

The purchase price is only part of the equation. Here is a realistic breakdown of total cost of ownership over a 5-year period, assuming moderate use (5 runs/day, 250 days/year).

Key observations:

• Running costs (gas, pump oil, consumables) are broadly similar across all models. The purchase price is the dominant factor in total cost of ownership.
• The per-cycle cost difference between the cheapest (HY-4L) and most capable (PLUTO-F) model is only ~$1.50. For a research lab generating publishable results, the incremental cost of a more capable system is negligible compared to labor and materials costs.
• Recipe storage (PLUTO-M/F) reduces setup time by 2–5 minutes per run. At 5 runs/day, that saves 40–100 hours/year of researcher time — worth $2,000–$5,000 in labor, which alone can justify the PLUTO-M upgrade over the PLUTO-T.

For detailed maintenance procedures that help minimize ongoing costs, see our Plasma Cleaner Maintenance Guide.

9) Chamber Material: Stainless Steel vs Aluminum Alloy

The PLUTO-F’s aluminum-alloy (6061-T6) chamber is a distinctive design choice. Here is when it matters and when it does not.

Bottom line: If your process gases are limited to O₂, Ar, N₂, and H₂ (which covers 90%+ of plasma cleaning applications), the aluminum chamber is an advantage. If you regularly use fluorine-containing gases (CF₄, SF₆) at elevated power levels, stainless steel is the safer choice for long-term chamber integrity.

10) Migration Paths & Upgrade Scenarios

Labs’ needs evolve. Here are common upgrade paths we see:

• HY-4L → PLUTO-T: When you need more RF power for aggressive cleaning (photoresist strip, heavy organic contamination) in a similar chamber footprint. The 33% power increase (150 → 200 W) and better power density make a noticeable difference.
• PLUTO-T → PLUTO-M: When a second or third researcher starts using the system and you need recipe storage to prevent process drift. The gas-shower electrode is a meaningful uniformity upgrade.
• HY-20L → HY-20LRF: When you started with MF for surface activation but now need RF capability for more demanding applications. The HY-20LRF doubles the RF power (150 → 300 W) at the same chamber volume.
• HY-20LRF → PLUTO-F: When you need recipe management, gas-shower uniformity, and the performance benefits of the aluminum chamber. This is the most common "core facility upgrade" path.
