PECVD vs ALD vs Sputtering — How to Choose the Right Thin Film Deposition Technology

By NineScrolls Engineering · 2026-04-01 · 15 min read · Materials Science

Target Readers: Process engineers, equipment procurement teams, PIs/lab managers, and R&D decision-makers choosing between CVD and PVD thin-film deposition platforms. Whether you are building a new fab capability or evaluating whether an existing tool can cover a new film requirement, this guide provides the structured comparison framework you need.

TL;DR Summary

PECVD, ALD, and magnetron sputtering are the three workhorse thin-film deposition technologies in semiconductor, MEMS, photonics, and advanced materials research. Each excels in different regimes: PECVD delivers high-rate dielectric and semiconductor films with tunable stress; ALD provides atomic-level thickness control and perfect conformality on 3D structures; sputtering offers broad material versatility (metals, alloys, oxides, nitrides) with excellent adhesion and density. Choosing the right technology requires matching your film requirements — thickness, conformality, composition, stress, temperature budget, and throughput — to each technique's strengths. This guide provides quantitative comparison tables, a decision flowchart, application-specific recommendations, and cost-of-ownership considerations to help you make that choice.

1) The Three Technologies at a Glance

1.1 PECVD — Plasma-Enhanced Chemical Vapor Deposition

PECVD uses RF plasma to decompose gaseous precursors (silane, ammonia, TEOS, methane, etc.) at temperatures typically between 100–350 °C, depositing thin films through gas-phase chemical reactions enhanced by plasma energy. The plasma provides the activation energy that thermal CVD would require at 600–900 °C, making PECVD compatible with temperature-sensitive substrates and back-end-of-line (BEOL) processing.

Key strengths: high deposition rates (10–100+ nm/min), tunable film stress via dual-frequency RF, wide range of dielectric and semiconductor films (SiO₂, SiNₓ, α-Si:H, SiON, SiC, DLC). For a deep dive, see our PECVD Complete Guide.

1.2 ALD — Atomic Layer Deposition

ALD builds films one atomic layer at a time through sequential, self-limiting surface reactions between two (or more) precursors. Each cycle deposits a precise thickness (typically 0.5–1.5 Å/cycle), regardless of substrate geometry. Plasma-enhanced ALD (PEALD) extends the technique to lower temperatures (down to room temperature) and expands the accessible material set.

Key strengths: sub-nanometer thickness control, 100% conformal coating on extreme topographies (aspect ratios >100:1), pinhole-free films at <10 nm, excellent composition and uniformity control. For a deep dive, see our ALD Comprehensive Guide.

1.3 Magnetron Sputtering — Physical Vapor Deposition (PVD)

Magnetron sputtering uses magnetically confined plasma to bombard a solid target, ejecting atoms that deposit onto the substrate. DC sputtering handles conductive targets (metals, alloys); RF sputtering extends to dielectrics and semiconductors. Reactive sputtering (with O₂ or N₂ gas) enables compound film deposition from elemental targets.

Key strengths: broadest material palette (any solid target), excellent adhesion from energetic adatoms, dense and smooth films, high-purity metal deposition, alloy composition control via co-sputtering. For a deep dive, see our Magnetron Sputtering Guide.

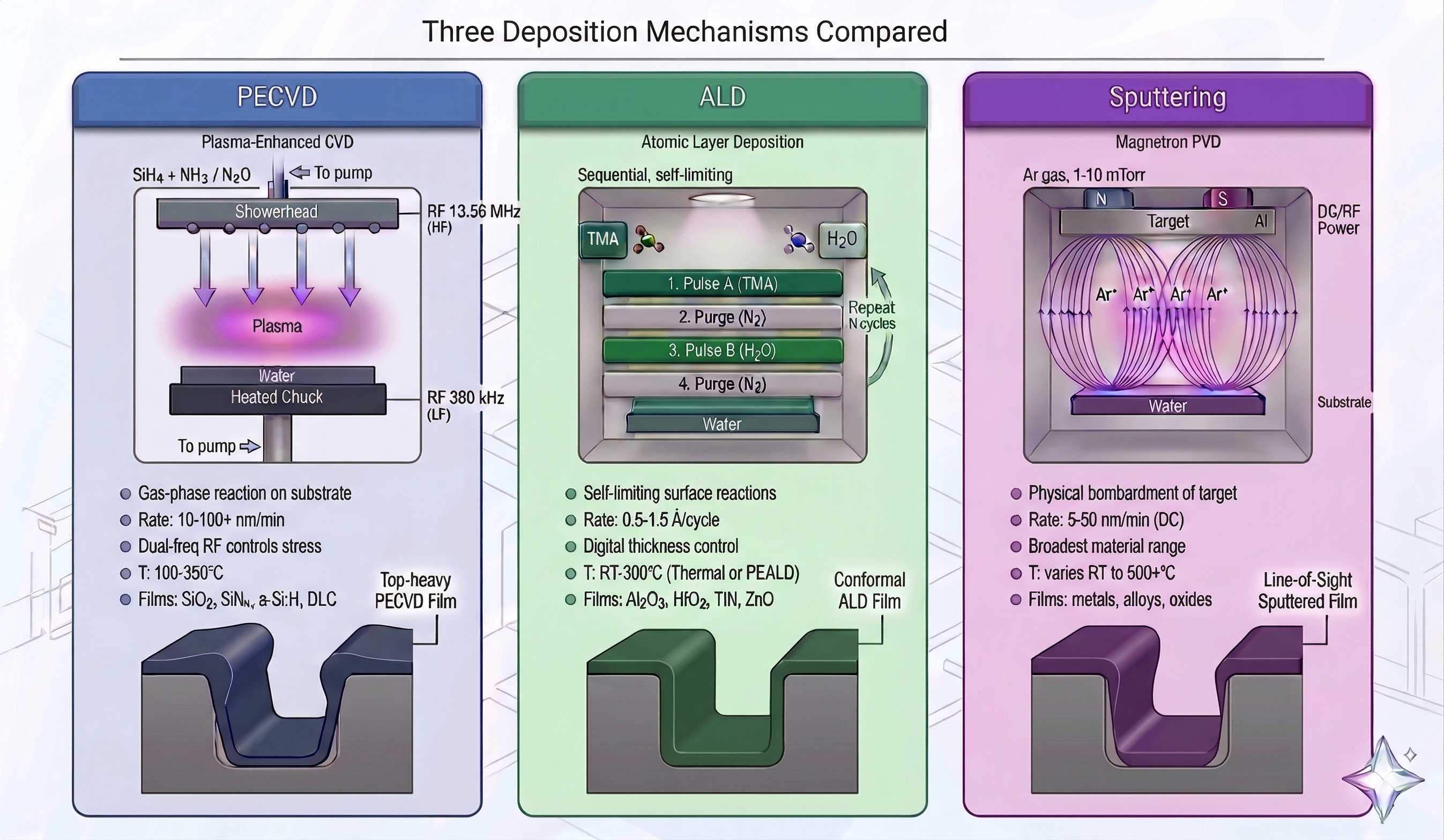

Figure 1: Three deposition mechanisms compared — PECVD uses plasma-activated gas-phase reactions, ALD builds films via sequential self-limiting surface chemistry, and sputtering ejects target atoms via ion bombardment

2) Head-to-Head Comparison

2.1 Core Performance Metrics

2.2 Process Characteristics

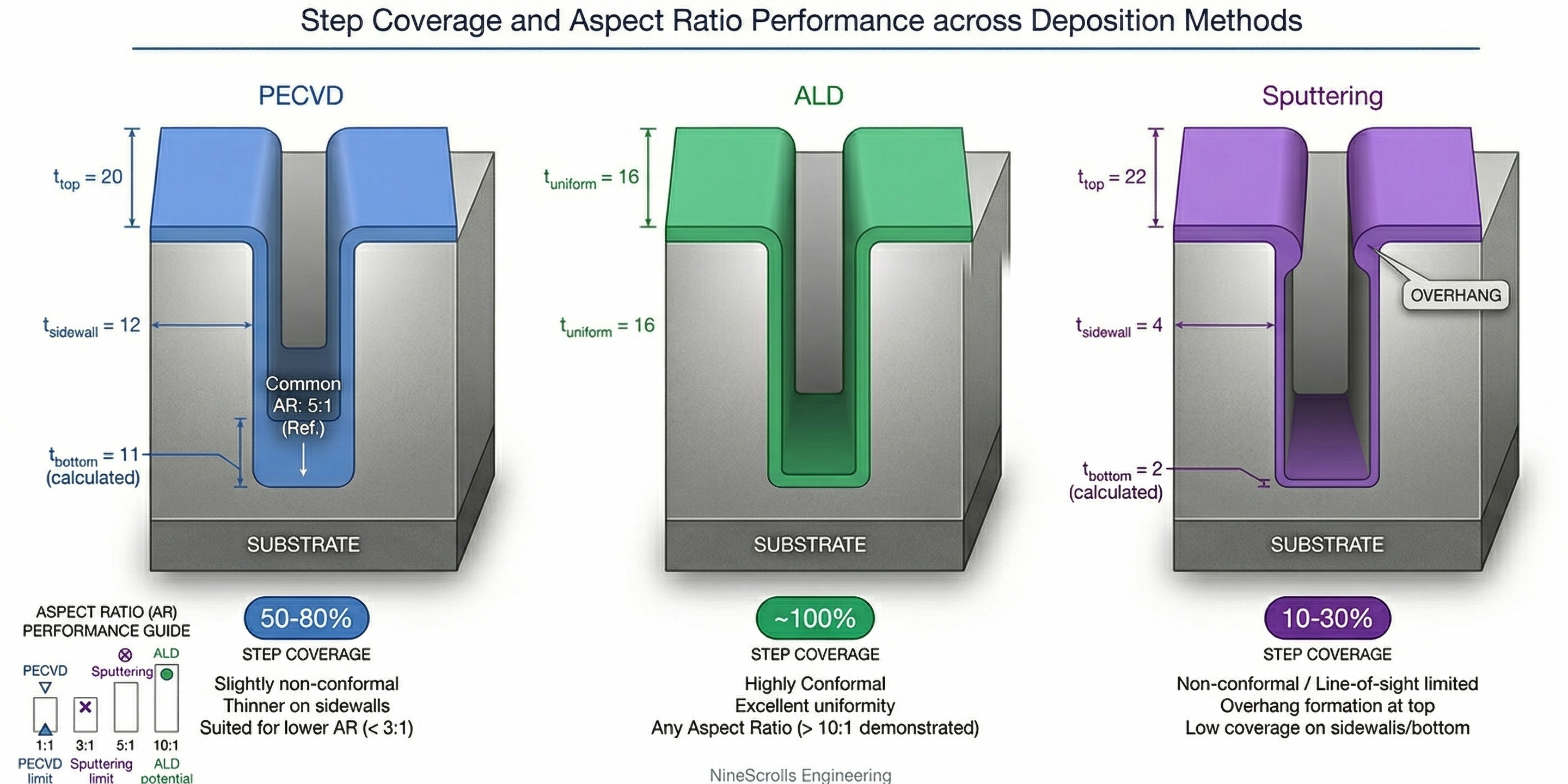

Figure 2: Step coverage comparison on a 5:1 aspect ratio trench — ALD provides perfectly conformal coating, PECVD thins on sidewalls, and sputtering is largely limited to line-of-sight surfaces with overhang at the opening

3) Material-by-Material Selection Guide

The "best" deposition technology depends on the specific film you need. Below is a decision matrix for the most commonly deposited materials in research and production environments.

3.1 Silicon Dioxide (SiO₂)

3.2 Silicon Nitride (SiNₓ)

3.3 Aluminum Oxide (Al₂O₃)

3.4 Metals and Conductive Films

3.5 Specialty Films

4) Decision Flowchart: Which Technology Do You Need?

Use this systematic approach to narrow down your technology choice:

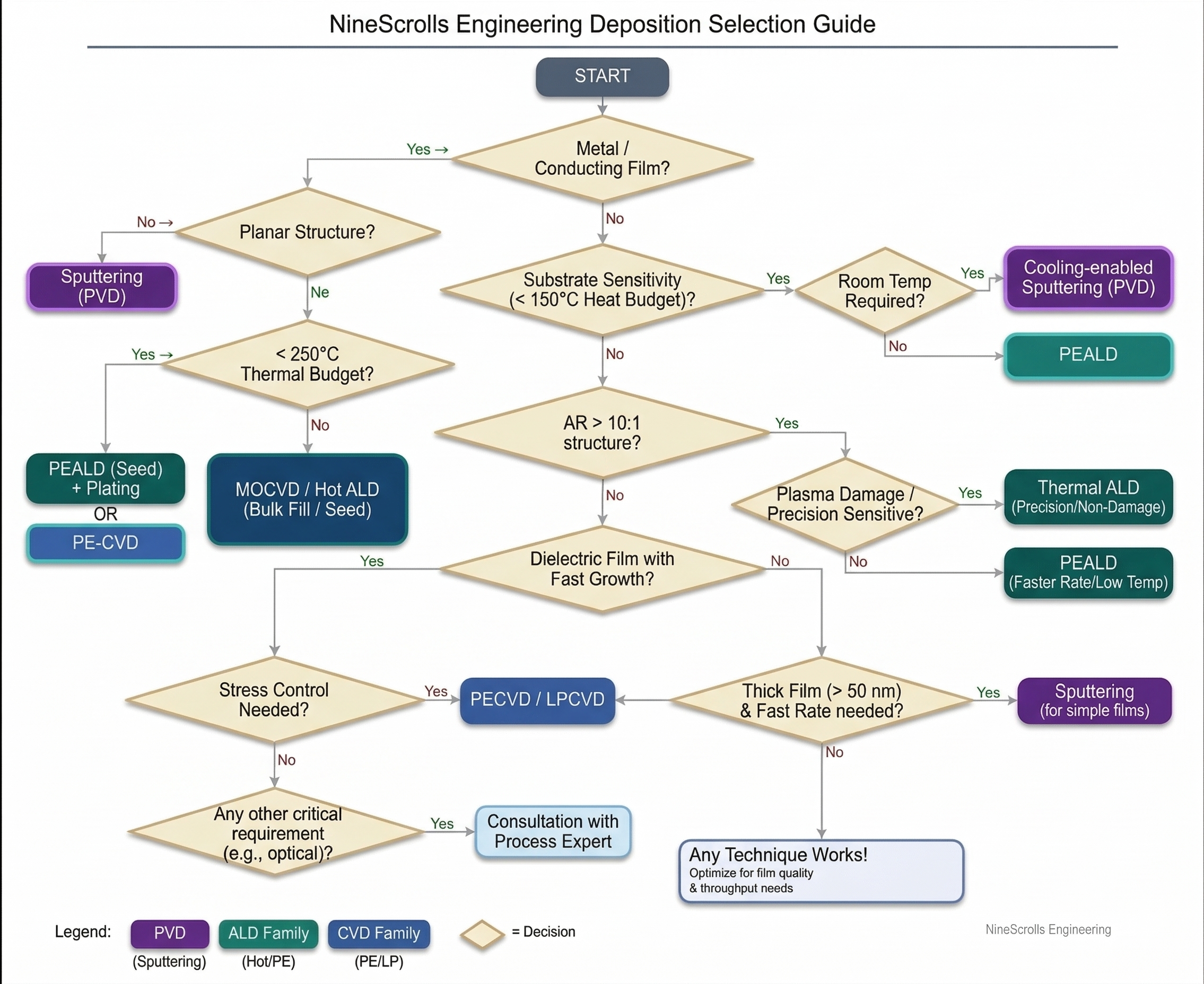

Figure 3: Deposition technology selection flowchart — follow the decision tree from material type through thickness, conformality, and process constraints to reach the recommended technology

Step 1: What material do you need?

• Metal (pure or alloy)? → Sputtering is almost always the answer. ALD has limited metal processes; PECVD cannot deposit metals.
• Dielectric or semiconductor? → Continue to Step 2.

Step 2: How thick is the film?

• <20 nm and thickness must be exact? → ALD (digital thickness control, pinhole-free at ultra-thin).
• 20–100 nm? → Any technique works; continue to Step 3 for tie-breaking.
• >100 nm? → PECVD or Sputtering (ALD too slow above ~100 nm for most workflows).

Step 3: Does the substrate have 3D topography?

• High aspect ratio (>5:1) and conformal coverage needed? → ALD (nothing else provides ~100% conformality).
• Moderate topography (AR <3:1)? → PECVD provides acceptable step coverage.
• Planar or lift-off? → Sputtering (line-of-sight is an advantage for lift-off processes).

Step 4: What is your temperature budget?

• Room temperature required? → Sputtering (unheated) or PEALD (some processes down to RT).
• <150 °C? → All three can work; PEALD and sputtering have more process options in this range.
• 150–350 °C? → All three are fully capable.

Step 5: What is your throughput requirement?

• R&D / low volume? → Any technique; optimize for film quality and flexibility.
• Production / high throughput? → PECVD (fastest dielectric rate) or Sputtering (fastest metal rate). ALD only if conformality or thickness precision is non-negotiable.

5) Application-Specific Recommendations

5.1 Semiconductor Device Fabrication

5.2 MEMS / Sensors

5.3 Photonics / Optoelectronics

6) Cost of Ownership Comparison

Beyond film performance, practical considerations like cost, maintenance, and operational complexity influence technology selection. The following comparison is based on typical research-scale systems (4–6 inch wafer capability).

7) When to Combine Technologies

In many real-world process flows, the answer is not "which one" but "which combination." Here are common multi-technique stacks:

7.1 ALD + Sputtering (Barrier/Seed + Bulk)

A thin ALD layer provides conformal coverage and barrier properties on 3D structures, followed by sputtering for bulk metal fill. This is the standard approach for Cu damascene interconnects: ALD TaN barrier → PVD Cu seed → electroplated Cu fill.

7.2 PECVD + ALD (Bulk + Precision)

A thick PECVD dielectric provides the bulk of an interlayer stack, while an ALD capping layer adds pinhole-free sealing or a precise interface for subsequent processing. Example: PECVD SiO₂ (200 nm) + ALD Al₂O₃ (10 nm) moisture barrier for OLED encapsulation.

7.3 Sputtering + PECVD (Adhesion + Function)

A thin sputtered adhesion layer (Ti, Cr) promotes bonding to the substrate before PECVD deposits the functional film. Example: sputtered Ti (20 nm) + PECVD SiNₓ (300 nm) for MEMS passivation on gold electrodes.

7.4 Multi-Tool Process Flows

Advanced devices routinely require all three technologies in a single process flow. A typical GaN HEMT fabrication might use:

1. ALD Al₂O₃ (10 nm) — gate dielectric with precise thickness and interface control
2. Sputtered Ti/Al/Ni/Au — ohmic contacts (metal stack)
3. Sputtered Ni/Au — Schottky gate metal
4. PECVD SiNₓ (200 nm) — passivation with stress optimization

8) Common Pitfalls and How to Avoid Them

Pitfall 1: Using ALD when PECVD would suffice

If your film is >100 nm on a relatively planar substrate, ALD's sub-angstrom precision adds no value — it only adds cycle time. A 500 nm ALD SiO₂ film takes ~5,000 cycles (hours) versus minutes by PECVD. Rule of thumb: use ALD below 50 nm or when conformality on 3D structures is required.

Pitfall 2: Ignoring hydrogen content in PECVD films

PECVD films inherently contain 5–25 at.% hydrogen from silane and ammonia precursors. For optical waveguide applications, N–H and Si–H bonds cause absorption at telecom wavelengths (1.5 µm). If low optical loss is critical, consider sputtered SiNₓ instead, or post-deposition anneal PECVD films at 800–1100 °C (if your substrate allows).

Pitfall 3: Expecting conformal sputtered films in trenches

Sputtering is inherently line-of-sight. A 2:1 aspect ratio trench will see ~30% step coverage on sidewalls. If you need uniform sidewall coating, switch to ALD or accept that your sputtered film is a planar + bottom-of-trench deposition only.

Pitfall 4: Overlooking film stress in thick PECVD stacks

A 1 µm PECVD SiNₓ film with 200 MPa compressive stress generates ~30 N/m of bending force on a 4-inch wafer. Multilayer stacks can crack or delaminate if stress is not managed. Use dual-frequency RF power ratio to tune stress toward neutral — this is a unique PECVD advantage that ALD and sputtering cannot easily match.

Pitfall 5: Neglecting nucleation effects in ALD

ALD is not perfectly uniform on all surfaces from cycle 1. Nucleation delay varies by substrate surface chemistry — for example, TMA/H₂O ALD on H-terminated Si shows delayed nucleation versus OH-terminated SiO₂. Ensure your surface prep creates the right termination, or accept that the first few nanometers may be non-ideal.

9) Quick Reference: Technology Selector

10) Frequently Asked Questions

Q: Can I replace sputtering with ALD for metal deposition?

A: Only in limited cases. ALD metal processes exist for W, Ru, Co, Pt, and a few others, but they are slower, more expensive (metalorganic precursors), and may incorporate carbon or oxygen impurities. For bulk metal layers (>50 nm), sputtering remains the clear choice. ALD metals are best used as ultra-thin seed/nucleation layers or conformal liners in high-aspect-ratio features where sputtering's line-of-sight limitation is a problem.

Q: Is PECVD film quality "good enough" compared to thermal oxide or LPCVD?

A: PECVD films have lower density and higher hydrogen content than thermal oxide or LPCVD equivalents, which means slightly lower breakdown voltage, higher etch rate in HF, and potential outgassing. For passivation, interlayer dielectrics, and most MEMS applications, PECVD quality is well-proven. For gate dielectrics or critical interfacial layers, ALD or thermal methods are preferred.

Q: What is the minimum practical ALD film thickness?

A: ALD can deposit films as thin as 1–2 nm. Below ~2 nm, film continuity depends on nucleation behavior, which varies by material and substrate surface. ALD Al₂O₃ on SiO₂ achieves continuous films at ~1 nm. HfO₂ may require 2–3 nm for full coverage depending on the surface. This is still far thinner than what PECVD or sputtering can achieve with reliable continuity.

Q: Can I use one system for both PECVD and sputtering?

A: Multi-technique cluster tools exist in production fabs, but research systems are typically dedicated to one technique. Mixing CVD chemistry and PVD targets in the same chamber risks cross-contamination. The exception is PEALD systems that add a sputter clean pre-treatment capability — but this is for surface preparation, not bulk deposition.

Q: How do I choose between thermal ALD and plasma-enhanced ALD (PEALD)?

A: Thermal ALD uses H₂O or O₃ as the co-reactant, requires higher temperatures (150–300 °C), and provides the gentlest deposition with no plasma damage. PEALD uses O₂ or N₂ plasma, works at lower temperatures (RT–200 °C), and enables a wider material set (metals, nitrides). Choose thermal ALD when your substrate is plasma-sensitive (e.g., organic devices, III-V surfaces); choose PEALD when you need lower temperature or metallic/nitride films.

Q: Which technology has the best wafer-to-wafer uniformity?

A: ALD inherently provides the best uniformity (<1% thickness variation) because the self-limiting chemistry is insensitive to minor gas flow or temperature variations. PECVD uniformity depends on showerhead design and gas distribution (typically ±2–5%). Sputtering uniformity depends on target-to-substrate geometry and magnetic field design (typically ±1–3% with optimized fixtures).

Conclusion

There is no single "best" thin-film deposition technology — only the best technology for your specific film, structure, and process constraints. PECVD is your workhorse for thick dielectrics with stress control. ALD is indispensable when you need atomic precision or conformal coverage on 3D structures. Sputtering is unmatched for metals, alloys, and dense optical films. For many advanced devices, the answer is a combination of all three — each applied where its strengths matter most.
