Advancing Dry Etching of Thermoelectric Films: Insights from CH₄/H₂/Ar Plasma Optimization for Bi₂Te₂.₇Se₀.₃ Microstructures

By NineScrolls Engineering · 2025-11-13 · 12 min read · Materials Science

Target Readers: Thermoelectric device engineers, MEMS fabrication specialists, plasma process engineers, and researchers working on micro-thermoelectric applications.

TL;DR Summary

The rapid evolution of microelectronics, optoelectronics, and MEMS technologies has elevated the importance of localized thermal management. Thermoelectric (TE) materials—particularly Bi₂Te₃-based thin films—have emerged as a promising platform for on-chip cooling, infrared sensing, and microscale power generation. However, the microfabrication of high-aspect-ratio thin-film TE structures remains a significant challenge. A recent study presents a systematic investigation into the dry etching behavior of n-type Bi₂Te₂.₇Se₀.₃ films using CH₄/H₂/Ar plasma, revealing optimal gas ratios and mechanistic insights for achieving compositionally stable, near-vertical microstructures.

1) Background: Why Thermoelectric Thin-Film Patterning Is Difficult

Bi₂Te₃-based alloys remain the gold standard for near-room-temperature thermoelectric applications due to their high Seebeck coefficient, excellent electrical conductivity, and intrinsically low thermal conductivity. However, several materials-processing challenges arise when transitioning from bulk to thin-film device architectures.

1.1. Incompatibility with Traditional Lithography

Bi₂Te₃ films typically exhibit poor adhesion to substrates and are incompatible with lift-off processes. After metal mask removal, films often present:

• Burrs and trapezoidal cross-sections,
• Local delamination,
• Incomplete feature transfer.

These defects compromise the structural definition required for vertical TE legs.

1.2. Limitations of Wet Etching

Wet etchants produce an inherently isotropic profile, leading to:

• Sidewall undercutting,
• Feature collapse during drying,
• Limited control over etch depth and morphology.

Such constraints make wet etching unsuitable for high-aspect-ratio thermoelectric structures.

1.3. Challenges in Dry Etching of Bi–Te–Se Alloys

Dry etching offers directionality, but Bi₂Te₃-based alloys respond poorly to conventional oxidative plasmas (e.g., CF₄, O₂). Reaction byproducts form non-volatile compounds, hindering material removal. As a result, reductive plasmas—particularly CH₄/H₂-based systems—have become the primary pathway for low-damage, anisotropic etching.

However, these systems raise their own challenges:

• Carbon-rich polymer deposition,
• Selective etching of Te and Se,
• Bi enrichment leading to porous or columnar structures.

Understanding and balancing the chemical and physical components of the CH₄/H₂/Ar plasma is therefore essential.

2) Synergistic Roles of CH₄, H₂, and Ar in Dry Etching

The study clarifies how each gas contributes to etching behavior and reveals how gas mixing ratios influence the resulting morphology and composition.

2.1. CH₄: Governing Volatile Byproduct Formation and Polymer Deposition

In the plasma, CH₄ dissociates into CH₃· radicals, which react with Bi to form Bi(CH₃)₃—a volatile organometallic compound. Appropriate CH₄ concentrations are critical:

When CH₄ is too high:

• Excess polymer accumulates on the sidewalls and mask surface.
• Etching transitions toward an isotropic profile.
• Etch rate decreases due to byproduct redeposition.

For instance, at 30 sccm CH₄, SEM images in the study show substantial polymer clusters adhering to etched surfaces, inhibiting uniform feature transfer.

When CH₄ is too low:

• Chemical etching becomes insufficient,
• H₂-dominant reactions selectively remove Te/Se,
• Leading to pronounced Bi enrichment.

Thus, CH₄ plays a dual role: it stimulates volatile Bi etch-product formation but must be moderated to prevent carbon deposition.

2.2. H₂: The Primary Driver of Composition Stability and Undercutting

H₂ introduces H· radicals that react preferentially with Te and Se to form highly volatile hydrides (H₂Te, H₂Se). Their low boiling points enable efficient removal from the surface. However:

Moderate H₂ flow:

• Promotes smooth, anisotropic etching,
• Reduces polymer accumulation,
• Helps maintain surface cleanliness.

Excess H₂ flow:

• Intensifies selective etching of Te/Se,
• Produces a Bi-rich porous scaffold,
• Increases sidewall undercut due to:
  • Reduced mean free path,
  • Higher diffusivity of H radicals into sidewall regions.

At high H₂ flow (≥ 30 sccm), the film loses compositional integrity, with Bi content rising above 69 at%.

2.3. Ar: Enhancing Anisotropy Through Physical Sputtering

Ar⁺ ions provide directional energy that reinforces anisotropic profiles. By increasing Ar flow:

• Polymer removal improves,
• Sidewall undercut decreases,
• Etching transitions to a more vertical profile.

The anisotropy factor (F = 1 – a/b) approaches 0.99 at high Ar flow, indicating near-ideal verticality. Importantly, Ar has minimal impact on elemental composition, making it an effective parameter for shape control without influencing stoichiometry.

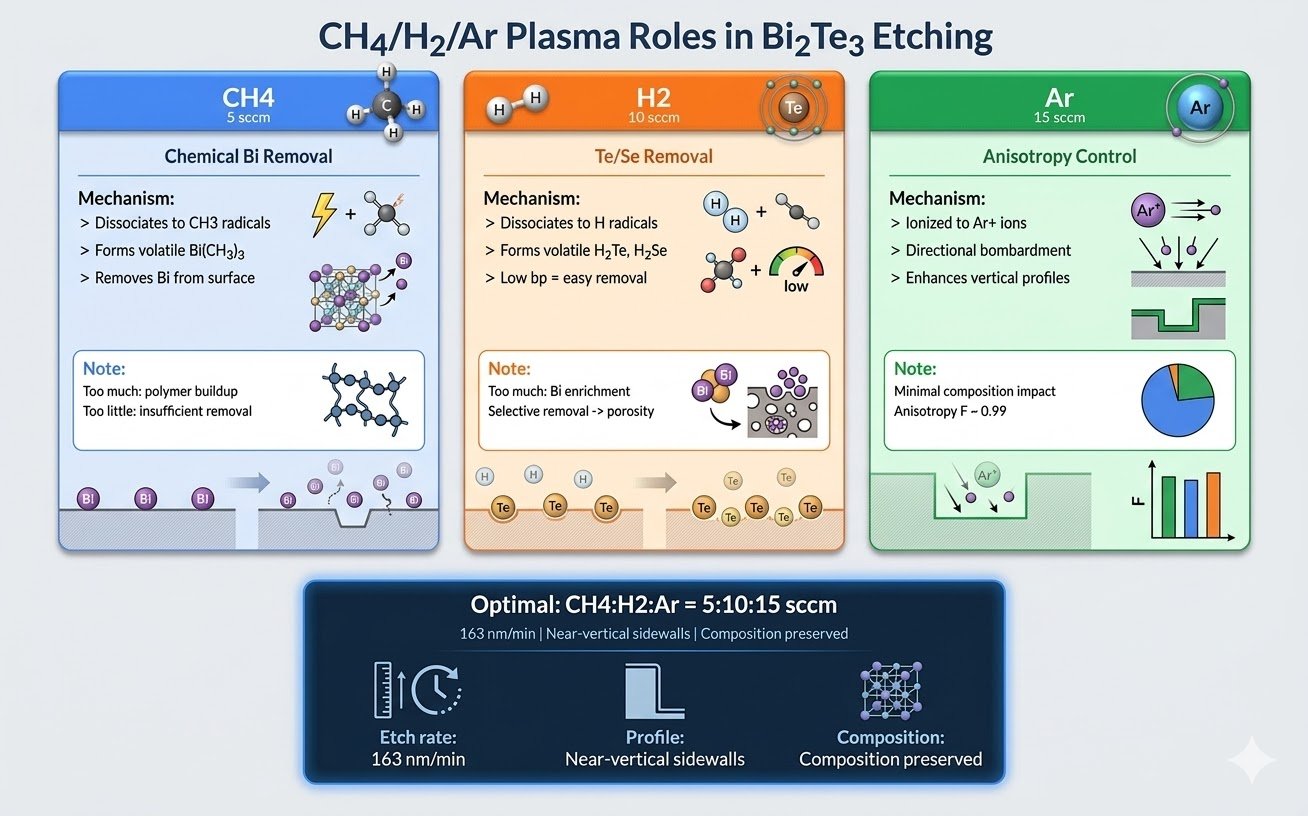

Figure 1: CH₄/H₂/Ar Gas Roles — synergistic functions of each gas species in dry etching of Bi₂Te₃-based thermoelectric films

3) Optimal Gas Ratio and Resulting Microstructure

The study reveals that the optimal synergy occurs at:

At this ratio:

• Polymer deposition is minimized,
• Selective removal of Te/Se is controlled,
• Etch rate reaches 163 nm/min,
• Sidewalls are clean and near-vertical,
• Composition remains close to the as-deposited film:
  • Bi ~44%, Te ~52%, Se ~4%.

The microstructures demonstrate high fidelity down to the underlying electrode and oxide layers, confirming the suitability of the recipe for thermopile array fabrication.

4) Implications for Thermoelectric Device Fabrication

4.1. Improved Reliability of Microscale TE Legs

Vertical sidewalls reduce contact resistance, prevent mechanical collapse during post-processing, and improve device thermal uniformity.

4.2. Enhanced Compatibility With MEMS Processes

Optimized plasma conditions bridge the gap between TE materials and standard microfabrication, enabling:

• Higher device density,
• More consistent thermal coupling,
• Integration with CMOS-adjacent workflows.

4.3. Foundations for a Universal Etch Framework

Although the study focuses on n-type Bi₂Te₂.₇Se₀.₃, the underlying plasma-material interaction insights provide guidance for other TE alloys such as (BiSb)₂Te₃ or Bi₂Te₃₋ₓSeₓ.

5) Perspective and Future Directions

This work represents a substantial step toward solving key bottlenecks in dry etching of TE films. Several areas merit further exploration:

(1) Post-etch Thermoelectric Performance

The study does not measure changes in Seebeck coefficient, electrical conductivity, or zT after etching. Quantifying etch-induced defects remains critical.

(2) Interface Characterization

High-resolution TEM or XPS could identify surface contamination, amorphization, or ion-damage layers introduced by Ar⁺ bombardment.

(3) Scaling for High-Density TE Arrays

As device dimensions scale below 5 μm, plasma uniformity and microloading effects become increasingly important.

6) Conclusion

The synergistic balance of CH₄, H₂, and Ar in plasma etching plays a decisive role in shaping both morphology and composition of Bi₂Te₂.₇Se₀.₃ thermoelectric thin films. Through systematic parameter optimization, the reported CH₄/H₂/Ar recipe offers a practical route to high-aspect-ratio, compositionally stable microstructures suitable for next-generation thermoelectric devices.

For researchers and fabrication facilities working on micro-thermoelectric applications, understanding these plasma-material interactions provides a foundation for process development and optimization. The insights from this study can be extended to other thermoelectric material systems and contribute to the advancement of on-chip thermal management technologies.
