Introduction: Why Process Parameters Matter in Materials Research
Advanced materials processing has matured from art to engineering — but the gap between knowing what to deposit or etch and knowing how to achieve it reproducibly remains the primary bottleneck in materials research labs. A paper may report "ALD Al₂O₃ was deposited at 200°C" without specifying precursor pulse times, purge durations, or growth per cycle — details that determine whether another lab can reproduce the result.
This guide bridges that gap. Rather than surveying processing techniques at a conceptual level, we provide actionable process recipes for the material systems most commonly encountered in advanced materials research: energy storage coatings, catalytic and protective surfaces, nanostructured devices, and flexible electronics. Each recipe includes specific equipment parameters tested on production-grade tools, with guidance on how to adapt them for different substrate geometries and film requirements.
1) Thin Film Deposition for Advanced Materials
The choice of deposition technique determines not just the film's composition and thickness, but its microstructure, stress state, defect density, and ultimately its functional performance. The table below provides a decision framework based on the key requirements of each application.

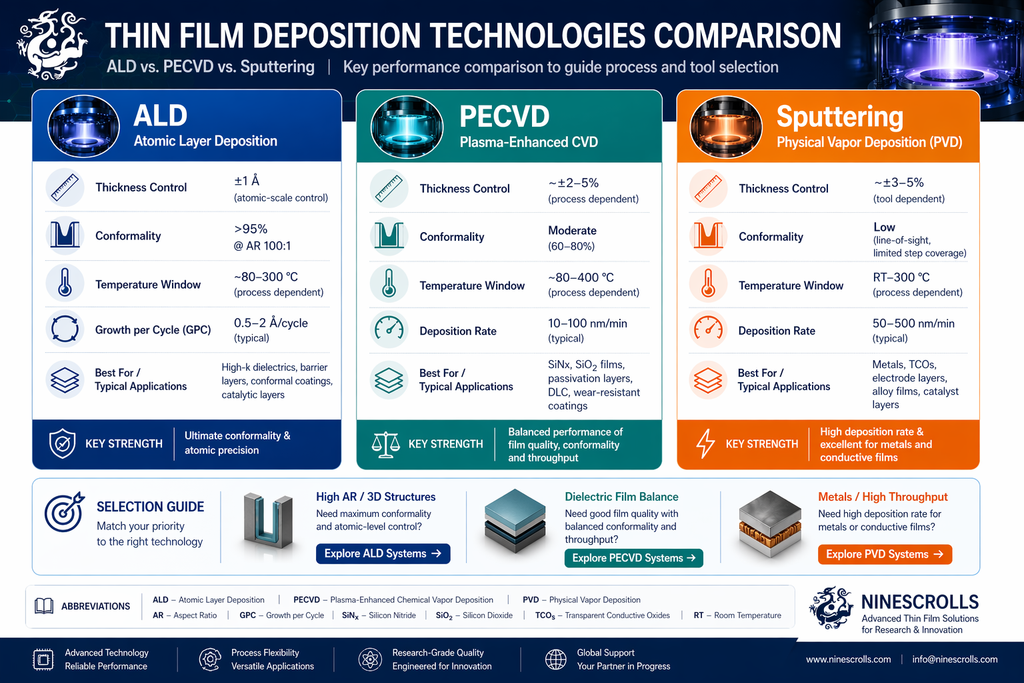

1.1 Technique Selection Guide
| Requirement | Best Technique | Alternative | Key Trade-off |
|---|---|---|---|
| Angstrom-level thickness control | ALD | MBE | ALD: slower but more conformal; MBE: line-of-sight only |
| Conformal coating on 3D structures | ALD (aspect ratio > 100:1) | PECVD (AR < 10:1) | PECVD is 10–100× faster but limited conformality |
| High deposition rate (> 50 nm/min) | PECVD or HDP-CVD | Sputtering | CVD: better coverage; sputtering: wider material range |
| Metal or alloy films | Sputtering (DC or RF) | E-beam evaporation | Sputtering: better adhesion and density; evaporation: lower damage |
| Void-free gap fill | HDP-CVD | ALD (for narrow gaps) | HDP-CVD: faster; ALD: better for sub-10 nm gaps |
| Temperature-sensitive substrate (< 150°C) | Low-temp PECVD or sputtering | Thermal ALD (80–120°C) | PECVD: faster but plasma damage risk; ALD: gentler |
1.2 ALD Process Recipes for Advanced Materials
Atomic layer deposition is the workhorse for applications requiring precise thickness control, pinhole-free coverage, and conformality on complex geometries. Below are proven recipes for common advanced materials applications:
| Film | Precursors | Temp (°C) | GPC (Å/cycle) | Application | Key Notes |
|---|---|---|---|---|---|
| Al₂O₃ | TMA + H₂O | 150–250 | 1.0–1.2 | Passivation, battery electrode coating, moisture barrier | Most robust ALD process; self-limiting window 100–300°C |
| TiO₂ (anatase) | TDMA-Ti + H₂O | 200–300 | 0.4–0.6 | Photocatalysis, dye-sensitized solar cells, anti-reflection | Anatase phase above 250°C; rutile requires > 500°C anneal |
| ZnO | DEZ + H₂O | 150–200 | 1.5–2.0 | TCO, gas sensors, piezoelectric devices | High GPC; Al-doped (AZO) for TCO by supercycle with TMA |
| HfO₂ | TDMA-Hf + H₂O | 200–300 | 0.8–1.1 | High-κ gate dielectric, ferroelectric memory (when doped) | Si-doped or Zr-doped for ferroelectric phase |
| Pt | MeCpPtMe₃ + O₃ | 250–300 | 0.4–0.5 | Fuel cell catalysts, DRAM electrodes | O₃ required; nucleation on oxides can be slow (10+ cycles) |
Critical process parameters: Beyond temperature and precursor choice, ALD film quality depends heavily on pulse time (sufficient to saturate the surface), purge time (sufficient to remove excess precursor and byproducts), and carrier gas flow. Insufficient purge causes CVD-like growth with reduced conformality and increased impurity content. For high-aspect-ratio substrates (porous electrodes, nanowires), increase both pulse and purge times by 3–5× over planar recipes.
1.3 PECVD for Functional Coatings
PECVD provides high deposition rates for applications where throughput matters more than atomic-level precision:
| Film | Gases | Temp (°C) | Rate (nm/min) | Application |
|---|---|---|---|---|
| SiNₓ (high-quality) | SiH₄/NH₃/N₂ (1:5:20) | 300–350 | 10–25 | Solar cell ARC (n ~ 2.0), moisture barrier, passivation |
| SiO₂ (low-k) | SiH₄/N₂O (1:10) | 250–350 | 30–80 | Interlayer dielectric, protective coating, optical filter |
| a-Si:H | SiH₄/H₂ (1:10) | 200–250 | 5–15 | Thin-film solar cells, TFT channels, hard masks |
| DLC (diamond-like carbon) | CH₄/H₂ or C₂H₂/Ar | RT–200 | 2–10 | Wear-resistant coating, biocompatible surface, IR window |
| SiON (tunable n) | SiH₄/N₂O/NH₃ | 300 | 15–40 | Waveguide core (n = 1.5–1.9), graded-index ARC |
Film property tuning: PECVD film properties are primarily controlled by RF power, gas ratio, pressure, and temperature. For SiNₓ, increasing the NH₃:SiH₄ ratio shifts the film from Si-rich (higher refractive index, ~2.2) to N-rich (lower index, ~1.8). For solar cell anti-reflection coatings, the target is n ≈ 2.0 at 632 nm with thickness tuned for quarter-wave matching at the peak solar spectrum (~75 nm for a c-Si cell).
1.4 Sputtering for Metals, Alloys, and Compounds
Sputter deposition is the primary technique for metal and alloy thin films in materials research. Key process parameters:
- DC sputtering for conductive targets (Au, Pt, Ti, Cr, Al): 50–300 W, 2–10 mTorr Ar, typical rates 5–50 nm/min
- RF sputtering for insulating targets (SiO₂, Al₂O₃, ITO, ZnO): 50–200 W RF, requires impedance matching, rates typically 2–10 nm/min
- Reactive sputtering for compounds (TiN, AlN, WO₃): Metal target + reactive gas (N₂, O₂). Critical to control reactive gas flow to avoid target poisoning — use feedback-controlled partial pressure or pulsed-DC to stay in the transition regime.
- Co-sputtering for alloys and compositional gradients: Multiple targets operated simultaneously. Composition controlled by relative power to each target. Enables combinatorial materials screening across a single wafer.
2) Plasma Etching for Nanostructure Fabrication
Plasma etching transforms planar thin films into functional nanostructures — nanopillars for enhanced surface area, nanochannels for fluid transport, nanopores for filtration, and nanopatterned electrodes for catalysis. The etch chemistry, plasma source, and process parameters determine the structure geometry, surface roughness, and sidewall chemistry.
2.1 Nanostructure Etching Recipes
| Target Structure | Material | Chemistry | ICP/Bias (W) | Pressure (mTorr) | Rate | Key Considerations |
|---|---|---|---|---|---|---|
| Si nanopillars (AR > 10:1) | Si | SF₆/C₄F₈ (Bosch) | 800/20 | 15–25 | 2–4 µm/min | Scallop control via short cycle times (3–5 s each) |
| SiO₂ nanopores | SiO₂ | CHF₃/Ar (4:1) | 500/50 | 5–10 | 100–200 nm/min | Add O₂ (5%) to reduce polymer buildup in pores |
| Metal nanoelectrodes | Pt, Au | Ar ion milling | 300 (beam)/— | 0.3 | 10–30 nm/min | Redeposition on sidewalls; use angled etch + rotation |
| Polymer nanochannels | PMMA, SU-8 | O₂/CF₄ (4:1) | 200/30 | 30–50 | 200–500 nm/min | CF₄ addition improves sidewall verticality |
| III-V mesa isolation | GaAs, InP | Cl₂/BCl₃/Ar | 400/30 | 5–10 | 200–400 nm/min | Low bias to avoid preferential Group V depletion |
For nanostructure fabrication, ICP-RIE is strongly preferred over conventional RIE because the independent control of plasma density and ion energy allows optimization for each specific structure: high radical density for fast etching with low ion energy to preserve the nanostructure's surface quality. A compact RIE handles simpler requirements (O₂ plasma for polymer etching, CF₄ for oxide descum) at lower cost.
2.2 Surface Texturing for Enhanced Performance
Controlled surface roughening and texturing by plasma processing creates functional surfaces for energy, catalysis, and biomedical applications:
- Black silicon (solar cells): SF₆/O₂ cryogenic ICP-RIE (−120°C) or maskless RIE creates nanoscale pillars that reduce reflectance to < 1% across the solar spectrum. Parameters: SF₆ 30 sccm / O₂ 20 sccm, 800 W ICP, 5 W bias, 10 min. The pillar morphology (height, spacing, aspect ratio) is tuned by the SF₆:O₂ ratio and substrate temperature.
- Superhydrophobic surfaces: O₂ plasma roughening of fluoropolymers (PTFE, FEP) creates hierarchical micro/nano structures with contact angles > 150°. A plasma cleaner with O₂/CF₄ capability can produce research-grade superhydrophobic surfaces in minutes.
- Catalytic nanostructures: RIE-textured TiO₂ surfaces have 5–10× higher photocatalytic activity than planar films due to increased surface area and reduced carrier recombination path lengths.

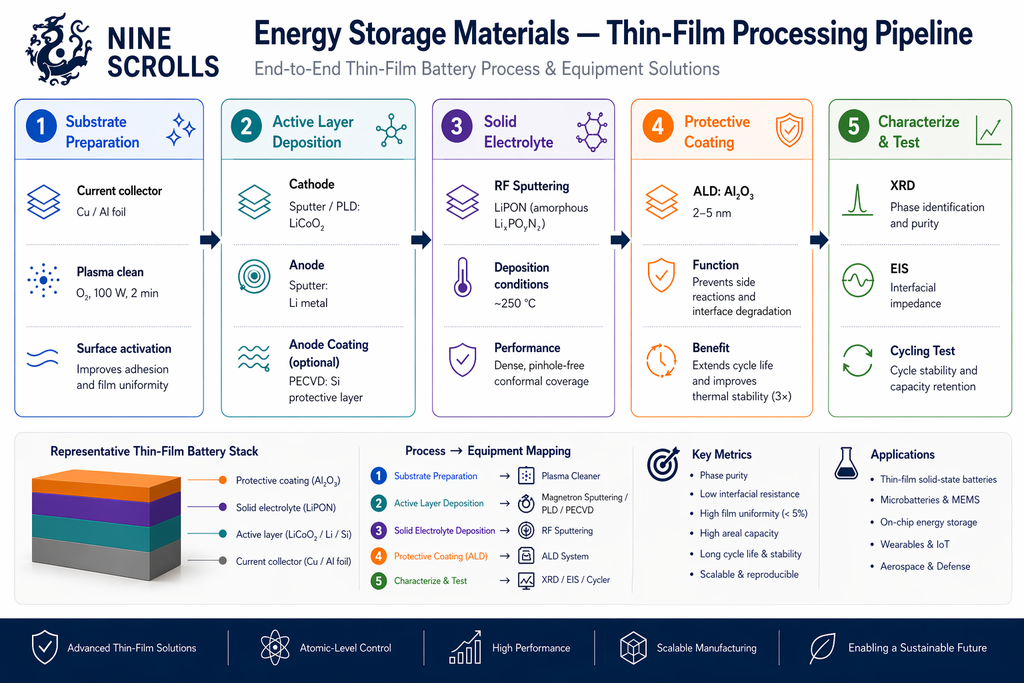

3) Energy Storage: Battery and Supercapacitor Materials
Thin-film processing is transforming energy storage by enabling precise control over electrode architectures, solid electrolyte interfaces, and protective coatings that extend cycle life and improve safety.
3.1 Lithium-Ion Battery Electrode Coatings
ALD coatings on battery electrodes address the critical challenge of electrode-electrolyte interface degradation:
| Coating | Thickness | Electrode Type | Benefit | Process |
|---|---|---|---|---|
| Al₂O₃ | 2–5 nm (5–50 ALD cycles) | Cathode (NMC, LCO) | Suppresses transition metal dissolution; +20–30% cycle life improvement | TMA/H₂O, 150°C, on powder or electrode |
| TiO₂ | 1–3 nm | Anode (Si, graphite) | Stabilizes SEI layer; reduces first-cycle irreversible capacity loss | TDMA-Ti/H₂O, 200°C |
| ZnO | 2–5 nm | Cathode (LFP, NMC) | Reduces HF attack from electrolyte decomposition | DEZ/H₂O, 120°C |
| LiAlO₂ (Li-containing) | 5–10 nm | Cathode or solid electrolyte interface | Lithium-ion conductive protective layer (σ ~ 10⁻⁸ S/cm) | LiOtBu/TMA/H₂O supercycle |
Processing challenge — coating porous electrodes: Battery electrodes are not planar wafers — they are porous, high-surface-area structures (typical porosity 30–40%, pore sizes 50–500 nm). ALD is uniquely suited because its self-limiting chemistry ensures conformal coating throughout the pore network. However, precursor pulse and purge times must be extended significantly (10–30 s pulse, 30–60 s purge) compared to planar recipes (0.1 s pulse, 5–10 s purge) to allow precursor diffusion through the tortuous pore structure. ALD systems with viscous-flow reactor designs and large precursor delivery capacity handle these extended-exposure recipes efficiently.
3.2 Solid-State Battery Thin Films
All-solid-state batteries replace the liquid electrolyte with a solid ionic conductor. Thin-film processing enables the fabrication of both research-scale microbatteries and conformal solid electrolyte layers:
- LiPON (lithium phosphorus oxynitride): The most established thin-film solid electrolyte. Deposited by RF sputtering of a Li₃PO₄ target in N₂ atmosphere (100% N₂, 5 mTorr, 50–100 W RF, rate ~1 nm/min). Ionic conductivity: ~2 × 10⁻⁶ S/cm. Extremely moisture-sensitive — deposit and handle under inert atmosphere.
- LLZO (garnet-type Li₇La₃Zr₂O₁₂): Higher conductivity (~10⁻⁴ S/cm) but requires high-temperature annealing (> 700°C). ALD of amorphous LLZO precursor films followed by crystallization anneal is an active research area.
- NASICON-type (Li₁.₃Al₀.₃Ti₁.₇(PO₄)₃): RF sputtering from composite targets with post-deposition annealing at 700–800°C.
3.3 Supercapacitor Electrode Processing
High-performance supercapacitor electrodes combine high surface area with pseudocapacitive materials:
- MnO₂ on carbon nanostructures: ALD MnOₓ (Mn(thd)₃ + O₃, 200°C, 100–500 cycles) deposits conformal pseudocapacitive layers on porous carbon substrates. Capacitance: 200–700 F/g depending on loading.
- RuO₂ on Ti foil: Reactive sputtering (Ru target + O₂/Ar) produces highly capacitive films (700–1,000 F/g) but at high material cost. Research typically uses 10–50 nm films to minimize Ru consumption.
- TiN current collectors: Reactive sputtering (Ti target + N₂/Ar, 200 W DC, 5 mTorr) produces metallic, corrosion-resistant current collectors for aqueous supercapacitors.

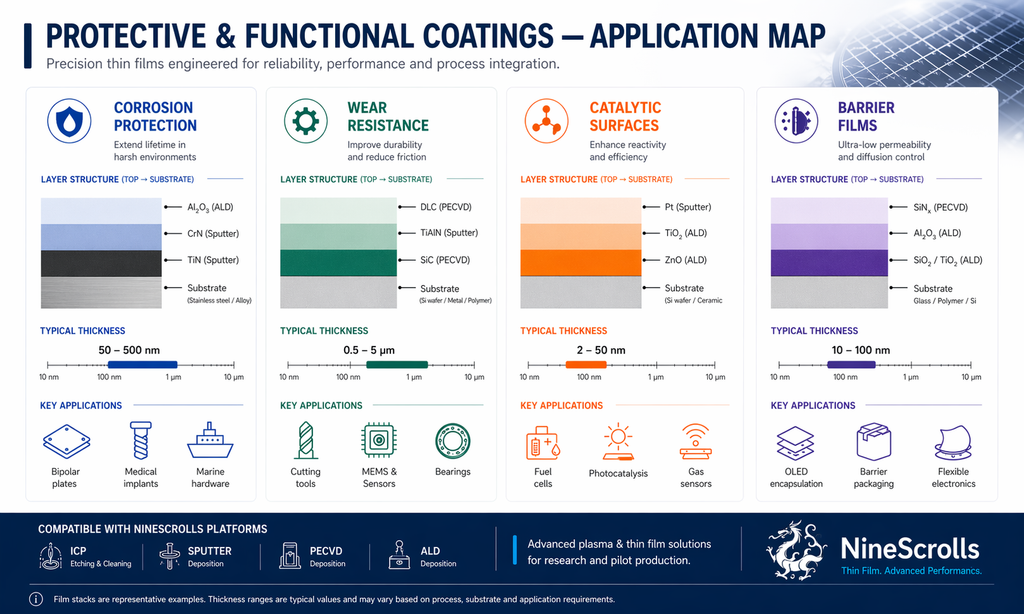

4) Protective and Functional Coatings
Thin-film coatings protect materials from corrosion, wear, and environmental degradation while adding functional properties such as catalytic activity, hydrophobicity, or biocompatibility.
4.1 Corrosion Protection
| Substrate | Coating | Method | Thickness | Environment | Performance |
|---|---|---|---|---|---|
| Steel | Al₂O₃ | ALD (TMA/H₂O, 150°C) | 10–50 nm | Marine, chemical | 10–100× reduction in corrosion current vs. bare steel |
| Mg alloy | TiO₂/Al₂O₃ nanolaminate | ALD (alternating cycles) | 50–100 nm | Biomedical (body fluid) | Controlled degradation rate for bioresorbable implants |
| Cu interconnects | TaN/Ta bilayer | Sputter (Ta target, N₂/Ar) | 5/5 nm | IC metallization | Diffusion barrier preventing Cu migration into dielectric |
| Polymer (PET, PEN) | SiOₓ/SiNₓ multilayer | PECVD (100–120°C) | 100–300 nm total | Atmospheric moisture | WVTR < 10⁻⁴ g/m²/day (flexible OLED encapsulation) |
4.2 Catalytic Surfaces
Thin-film processing creates high-performance catalytic surfaces for water splitting, CO₂ reduction, and chemical synthesis:
- Pt/Ir for water electrolysis: Sputtered Pt thin films (5–20 nm on conductive substrates) provide catalytic activity comparable to nanoparticle catalysts at lower Pt loading. Co-sputtering Pt-Ir or Pt-Ru creates alloy catalysts with enhanced stability.
- TiO₂ photocatalysis: PECVD or ALD TiO₂ films on textured substrates maximize photocatalytic surface area. Nitrogen doping (by adding N₂ to PECVD gas mix) extends optical absorption into the visible range.
- IrO₂ electrocatalyst: Reactive sputtering (Ir target + O₂/Ar, 100 W DC, 5 mTorr) produces highly active oxygen evolution reaction (OER) catalyst films. ALD IrO₂ (Ir(acac)₃ + O₃, 250°C) enables conformal coating on porous transport layers.
4.3 Wear-Resistant Coatings
- DLC (diamond-like carbon): PECVD from CH₄/H₂ or C₂H₂/Ar at low pressure (10–50 mTorr), RF power 100–300 W. Hardness: 10–30 GPa depending on sp³ content. Friction coefficient: 0.05–0.15. Maximum operating temperature: ~350°C before graphitization.
- TiN/TiAlN: Reactive sputtering multilayers for cutting tools and MEMS. TiAlN provides oxidation resistance to > 800°C, extending wear life 3–5× over TiN alone.
- SiC: PECVD from SiH₄/CH₄ at 300–400°C produces amorphous SiC with hardness 20–25 GPa and excellent chemical inertness.
5) Nanostructured Device Fabrication
Advanced materials research increasingly requires the fabrication of devices that test material properties under realistic operating conditions. This section covers process flows for common nanostructured devices.
5.1 Gas Sensor Fabrication
Metal-oxide gas sensors are one of the most common applications for advanced materials processing in research labs. A typical chemiresistive sensor fabrication flow:
- Substrate: SiO₂/Si with pre-patterned Pt interdigitated electrodes (IDEs). Electrodes defined by liftoff: PMMA/MMA bilayer resist → e-beam lithography → Ti/Pt (5/100 nm) sputter deposition → liftoff in warm acetone.
- Sensing layer: ALD of metal oxide (SnO₂, ZnO, or WO₃) at 150–250°C, typically 100–500 cycles (10–50 nm). ALD provides the uniform, conformal coverage needed for reproducible sensor response.
- Surface functionalization: Noble metal nanoparticle decoration (Pt or Pd) by ultra-thin ALD (1–5 cycles, producing islands rather than continuous film) enhances selectivity and sensitivity.
- Micro-heater integration (optional): Back-side ICP-RIE etch of Si to create a suspended membrane with integrated Pt heater, reducing thermal mass for fast temperature modulation. See our MEMS fabrication guide for membrane release processes.
5.2 Nanostructured Electrode Devices
For electrochemical research (batteries, fuel cells, electrolysis), nanostructured electrodes provide dramatically increased active surface area:
- Nanopillar arrays: ICP-RIE of Si (Bosch process, short cycles) creates pillars with controlled height (1–50 µm) and spacing. Subsequent ALD coating with catalytic or electrode materials creates high-surface-area 3D electrodes.
- Nanoporous templates: Anodized aluminum oxide (AAO) provides ordered nanopores (20–200 nm diameter). ALD fills these pores conformally, creating nanotube arrays after selective AAO removal.
- Core-shell nanowires: VLS-grown Si nanowires coated by ALD Al₂O₃ (insulator), then ALD Pt or RuO₂ (catalyst). Each layer's thickness is controlled at the Å-level.
5.3 Flexible Electronics on Polymer Substrates
Processing on polymer substrates (PET, PEN, polyimide, PDMS) requires adapting conventional recipes for low-temperature constraints:
| Process Step | Standard Recipe | Adapted for Polymer | Key Change |
|---|---|---|---|
| Surface activation | O₂ plasma, 100 W, 60 s | O₂ plasma, 30 W, 10–20 s | Reduce power/time to avoid polymer damage |
| Metal deposition | Sputter, 200 W DC | Sputter, 50–100 W DC, pulsed | Reduce substrate heating; pulsed-DC reduces damage |
| Dielectric deposition | PECVD SiO₂, 300°C | PECVD SiO₂, 80–120°C | Low temp → higher stress; compensate with multilayer design |
| Patterning (etch) | ICP-RIE, 500 W ICP | RIE, 50–100 W, short pulses | Minimize thermal load; He backside cooling critical |
| Encapsulation | ALD Al₂O₃, 200°C | ALD Al₂O₃, 80–100°C | Lower temp → slower growth, but sufficient for barrier |
Plasma cleaners are particularly valuable in flexible electronics processing: brief, low-power O₂ or Ar plasma treatment before each deposition step improves adhesion to polymer surfaces without thermal damage.
6) Surface Engineering and Plasma Treatment
Plasma surface modification is often the most time-efficient way to alter surface properties without changing bulk material characteristics.

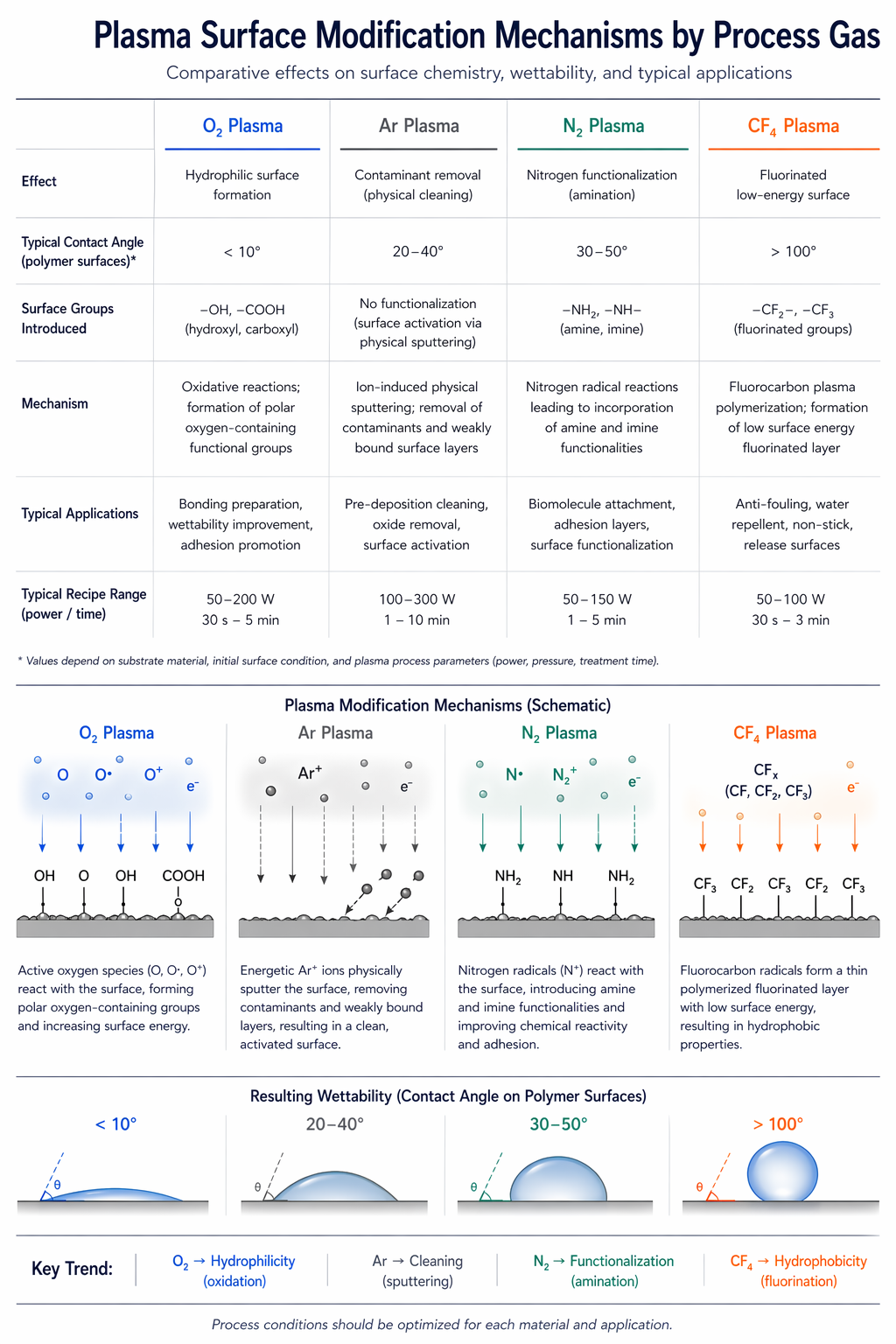

6.1 Plasma Treatment Effects by Gas
| Gas | Surface Effect | Typical Parameters | Applications |
|---|---|---|---|
| O₂ | Oxidation; introduces C=O, C-O, -OH groups; increases hydrophilicity | 50–200 W, 200 mTorr, 30–120 s | Adhesion promotion, wettability control, organic removal |
| Ar | Physical cleaning; removes weakly bound contaminants; roughens surface | 50–200 W, 50–200 mTorr, 30–60 s | Pre-deposition cleaning, surface activation without chemistry change |
| N₂ | Introduces amine groups (-NH₂); improves adhesion to metals | 100–300 W, 200 mTorr, 60–180 s | Polymer surface functionalization for biomolecule attachment |
| CF₄ | Fluorination; creates low-energy surface; increases hydrophobicity | 50–100 W, 100 mTorr, 30–60 s | Anti-fouling, water-repellent coatings |
| H₂ | Reduces surface oxides; passivates dangling bonds | 100–200 W, 200 mTorr, 60–300 s | Metal oxide reduction, semiconductor surface passivation |
| NH₃ | Combines N₂ and H₂ effects; strong amine functionalization | 100–200 W, 200 mTorr, 60–120 s | Biosensor surface preparation, polymer adhesion |
6.2 Contact Angle Engineering
Surface wettability control is critical for applications ranging from lab-on-chip to self-cleaning coatings. Plasma processing provides rapid, solvent-free wettability modification:
- Hydrophilic activation: O₂ plasma reduces water contact angle from > 90° to < 10° on most polymers and glasses. Effect is temporary (hydrophobic recovery over hours to days) — immediate subsequent processing or coating is essential.
- Hydrophobic modification: CF₄ or C₄F₈ plasma treatment increases contact angle to > 110° by depositing a thin fluorocarbon layer. More durable than O₂-activated hydrophilicity because the fluorocarbon layer is chemically stable.
- Patterned wettability: Combining lithography with sequential O₂ and CF₄ plasma treatments creates surfaces with adjacent hydrophilic and hydrophobic regions — used in open microfluidics and droplet-based assays.
7) Characterization and Process Control
Reproducible materials processing requires systematic characterization at each stage. The table below maps common film defects to their root causes and recommended diagnostic techniques:
| Observation | Likely Cause | Diagnostic Tool | Process Fix |
|---|---|---|---|
| ALD film thickness lower than expected | Insufficient precursor dose or too-short pulse | Ellipsometry (thickness); QCM (in-situ) | Increase pulse time; check precursor temperature and vapor pressure |
| PECVD film delamination | High compressive stress; poor adhesion | Stylus profilometry (stress); tape test (adhesion) | Reduce RF power; add stress-relief anneal; improve surface pre-treatment |
| Sputtered film resistivity too high | Ar incorporation; insufficient crystallinity | 4-point probe; XRD (crystallinity) | Reduce Ar pressure; add substrate bias; increase substrate temperature |
| Non-uniform etch depth across wafer | Gas distribution or plasma non-uniformity | Profilometry or interferometry mapping | Adjust gas flow distribution; check electrode spacing; rotate substrate |
| Rough etched surface | Micromasking from redeposition or residues | AFM (surface roughness); SEM (morphology) | Add O₂ to etch chemistry; clean chamber; improve resist quality |
8) Emerging Techniques and Future Directions
8.1 Area-Selective Deposition (ASD)
ASD deposits material only on desired regions without lithographic patterning — a potential revolution for self-aligned device fabrication. Key approaches include surface-dependent ALD nucleation (e.g., ALD Al₂O₃ grows on SiO₂ but not on H-terminated Si) and selective growth inhibition using self-assembled monolayers (SAMs). Research-grade ALD systems with precise temperature control and multi-precursor capability are essential for developing ASD processes.
8.2 Atomic Layer Etching (ALE)
The complement to ALD — removing exactly one atomic layer per cycle. ALE enables damage-free precision etching for 2D materials, atomic-scale device fabrication, and surface smoothing. See our dedicated ALE precision guide for detailed process information.
8.3 Machine Learning for Process Optimization
ML approaches are increasingly used to optimize multi-parameter deposition and etch processes. Design-of-experiments (DOE) combined with Gaussian process regression can reduce the number of experimental runs needed to optimize a 5-parameter ALD recipe from > 100 to < 20 — a significant saving when each ALD run takes 4–8 hours.
8.4 Sustainability in Processing
- Precursor efficiency: ALD's self-limiting chemistry is inherently material-efficient (> 90% precursor utilization vs. < 30% for CVD). ALD coating of battery electrodes uses < 0.1 g precursor per m² of electrode — orders of magnitude less than wet-chemical coating methods.
- Energy-efficient plasma: Low-power plasma cleaning and surface activation replace energy-intensive wet chemistry (piranha, RCA clean) for many applications. A typical plasma cleaning cycle uses < 0.1 kWh vs. > 1 kWh for heated wet chemistry plus DI water rinse.
- Gas abatement: Modern ICP-RIE systems with efficient gas utilization reduce SF₆ and CF₄ consumption — important because these are potent greenhouse gases (SF₆ GWP = 23,500). Process optimization to minimize flow while maintaining etch performance is both economically and environmentally motivated.
Conclusion
Advanced materials processing is no longer limited by the availability of techniques — ALD, PECVD, sputtering, and plasma etching collectively cover virtually any thin-film material system and nanostructure geometry. The bottleneck has shifted to process know-how: understanding which technique to apply, with what parameters, for each specific material challenge.
The recipes and parameters in this guide provide starting points for the most common applications. Each will require optimization for your specific substrate, geometry, and performance requirements — but starting from a tested baseline dramatically reduces development time compared to ab-initio process development. For application-specific guidance, our process engineers can provide consultation tailored to your material system and equipment configuration.
References and Further Reading
- George, S. M. "Atomic layer deposition: An overview." Chemical Reviews 110(1), 111–131 (2010).
- Johnson, R. W., Hultqvist, A. & Bent, S. F. "A brief review of atomic layer deposition: from fundamentals to applications." Materials Today 17(5), 236–246 (2014).
- Profijt, H. B., et al. "Plasma-assisted atomic layer deposition: basics, opportunities, and challenges." Journal of Vacuum Science & Technology A 29, 050801 (2011).
- Mattox, D. M. Handbook of Physical Vapor Deposition (PVD) Processing, 2nd ed. Elsevier (2010).
- Mack, C. Fundamental Principles of Optical Lithography. Wiley (2007).
- NineScrolls. "ALD Thin Film Deposition Guide"
- NineScrolls. "The Complete Guide to Reactive Ion Etching"
- NineScrolls. "Atomic Layer Etching (ALE) Precision Guide"
Frequently Asked Questions
What deposition technique should I start with for a new materials research project?
Start with the technique that best matches your primary requirement: ALD for precise thickness control and conformality on 3D structures; PECVD for fast deposition of dielectrics and functional coatings; sputtering for metals, alloys, and compounds where composition control matters. If you need films thinner than 10 nm with Å-level control, ALD is the clear choice. For films thicker than 100 nm where throughput matters, PECVD or sputtering will be 10–100× faster.
How do I adapt published ALD recipes for my specific substrate?
Start with the published temperature and precursor chemistry but expect to adjust pulse and purge times. Run saturation curves — vary pulse time at fixed temperature and measure film thickness per cycle. When increasing pulse time no longer increases GPC, you've found the minimum required pulse time. For porous or 3D substrates, multiply this time by 3–10× depending on aspect ratio. Then verify purge times similarly — insufficient purge is the most common cause of non-self-limiting (CVD-like) growth on high-surface-area substrates.
Can I use the same equipment for semiconductor device fabrication and energy materials research?
Yes — the core equipment platforms (ALD, PECVD, sputter, ICP-RIE, RIE) are the same. The differences are in process recipes, not equipment. An ALD system depositing Al₂O₃ for battery electrode coatings uses the same TMA/H₂O chemistry as one depositing gate dielectrics — only the substrate, temperature, and cycle count differ. Similarly, an ICP-RIE etching nanopillars for catalysis uses the same Bosch process as one creating MEMS structures. This equipment versatility is why university research labs typically share tools across multiple research groups.
