Fuel Cell Technology: Powering the Hydrogen Economy

By NineScrolls Engineering · 2024-01-20 · 21 min read · Energy

Target Readers: Fuel cell researchers, electrochemistry engineers, MEA fabrication specialists, and R&D managers developing PEMFC, SOFC, or PEM electrolyzer components. This guide provides specific process recipes, equipment parameters, and performance data for thin-film and plasma-based fuel cell manufacturing.

Introduction: Why Thin-Film Processing Matters for Fuel Cells

Fuel cells convert chemical energy directly to electricity through electrochemical reactions, producing only water as a byproduct. The performance, durability, and cost of every fuel cell type — proton exchange membrane (PEM), solid oxide (SOFC), or alkaline — depend critically on thin-film materials: catalyst layers measured in nanometers, electrolyte membranes measured in microns, and protective coatings that must survive thousands of hours in corrosive electrochemical environments.

Conventional fuel cell fabrication relies heavily on wet chemistry: ink-based catalyst application, solution casting of membranes, and electroplating of protective coatings. These methods are well-established but inherently limited in thickness control, material utilization, and microstructural uniformity. Vacuum-based thin-film techniques — sputtering, atomic layer deposition (ALD), plasma-enhanced CVD (PECVD), and plasma surface treatment — offer precise control over film thickness, composition, and microstructure that directly translates to measurable improvements in catalyst utilization, corrosion resistance, and cell lifetime.

This guide provides specific process parameters for each major fuel cell component, with comparison data showing where thin-film methods outperform conventional approaches and where they are best used as complements to existing fabrication workflows. For broader context on thin-film deposition and plasma processing across energy applications, see our advanced materials processing guide.

1) PEMFC Membrane Electrode Assembly: Components and Processing Challenges

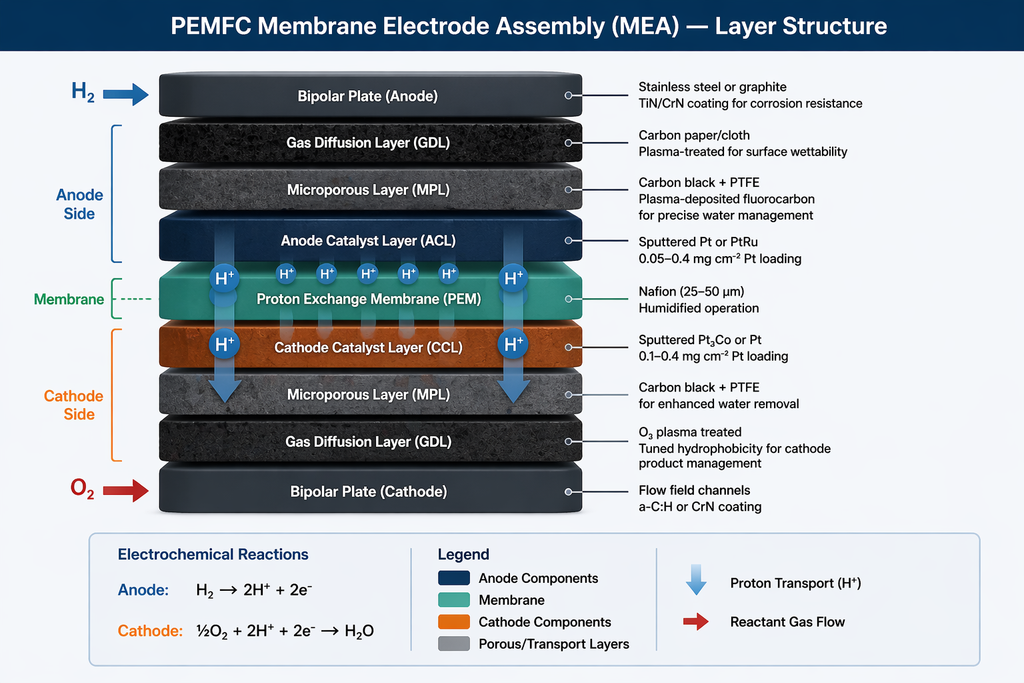

The membrane electrode assembly (MEA) is the electrochemical heart of a PEM fuel cell. It consists of five layers, each with distinct thin-film processing requirements:

• Proton exchange membrane (PEM): Nafion or hydrocarbon-based ionomer, typically 15-50 µm thick. Conducts protons from anode to cathode while blocking gas crossover. Processing challenge: surface activation for catalyst adhesion without damaging the ionomer structure.
• Anode catalyst layer: Pt or Pt-Ru on carbon support, 5-15 µm thick in conventional MEAs. Catalyzes hydrogen oxidation reaction (HOR). Thin-film alternative: sputtered Pt at 50-200 nm achieves equivalent HOR activity with 10-50x less Pt loading.
• Cathode catalyst layer: Pt or Pt-alloy on carbon support, 10-20 µm thick. Catalyzes oxygen reduction reaction (ORR) — the rate-limiting reaction in PEMFCs. This is where thin-film approaches offer the greatest performance gains.
• Gas diffusion layers (GDLs): Carbon paper or carbon cloth, 200-400 µm thick, with microporous layer (MPL). Manages gas transport, water removal, and electrical conduction. Surface wettability is critical and directly addressable by plasma treatment.
• Bipolar plates: Graphite, stainless steel (SS316L), or titanium with flow channels. Must resist corrosion at pH 2-3 under electrochemical potential while maintaining low contact resistance (< 10 mOhm-cm²). Thin-film coatings are the primary solution for metallic bipolar plates.

1.1 Why Conventional Ink-Based Methods Have Limitations

Standard MEA fabrication uses catalyst inks — Pt/C powder dispersed in Nafion ionomer solution with solvent — applied by spray coating, screen printing, or doctor blade casting. While scalable and well-understood, ink methods have fundamental limitations:

• Pt utilization is low: Only 20-40% of Pt particles in an ink-based catalyst layer are electrochemically accessible (in contact with both ionomer and reactant gas). The remainder is buried, agglomerated, or electrically isolated.
• Thickness control is poor: Ink layers typically vary +/-15-25% across a coated area, creating current density non-uniformity.
• Drying artifacts: Solvent evaporation creates mudcracking, pinholes, and density gradients that reduce performance and durability.
• High Pt loading required: Typical commercial cathode loadings of 0.2-0.4 mg_Pt/cm² are needed to achieve target power density, representing a significant cost ($8-16/kW at current Pt prices for catalyst alone).

Thin-film deposition addresses each of these limitations by placing catalyst atoms precisely where they are electrochemically active, achieving equivalent or superior performance at 5-20x lower Pt loading.

2) Catalyst Layer Fabrication by Sputter Deposition

Magnetron sputtering is the most mature thin-film technique for fuel cell catalyst layers. The key advantage: every deposited Pt atom is on the surface and accessible to reactant gases, achieving near-100% utilization compared to 20-40% for ink-based methods.

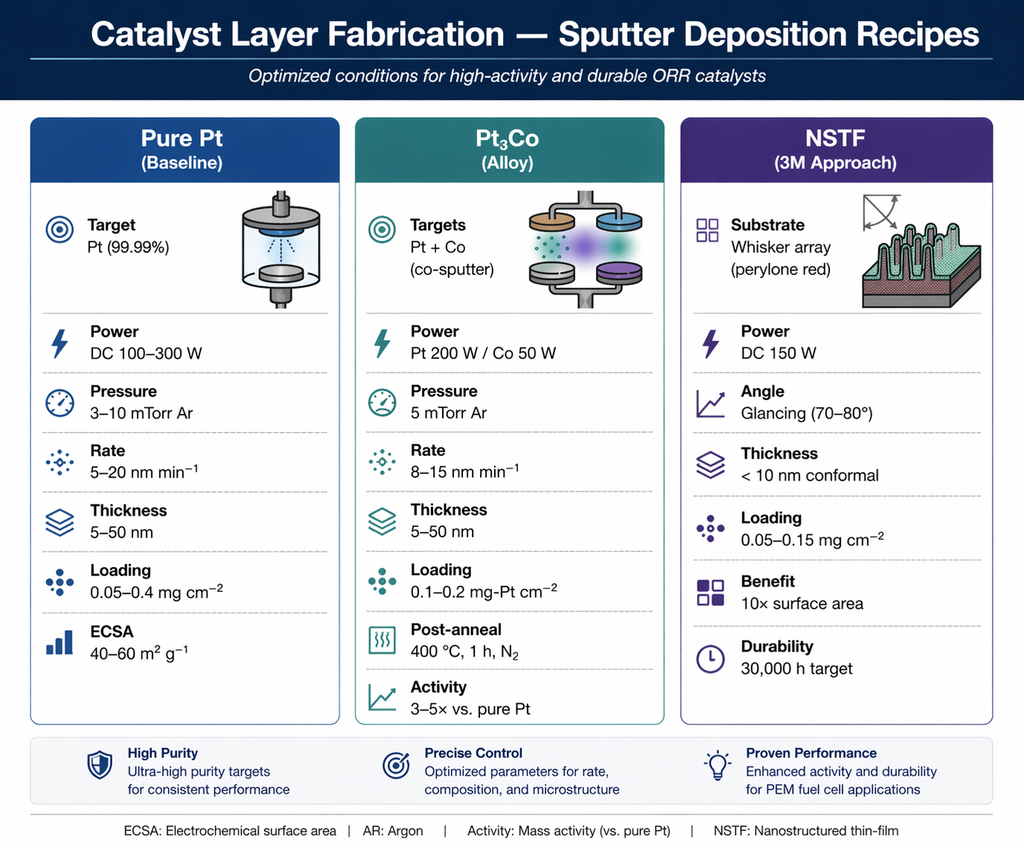

2.1 DC Magnetron Sputtering of Pt Catalyst Layers

Pure Pt cathode catalyst layers are the baseline thin-film approach. The process parameters below produce dense, nanocrystalline Pt films suitable for both PEMFC cathodes and research electrode studies.

Performance result: A 20 nm sputtered Pt film on a Nafion 212 membrane (0.004 mg_Pt/cm²) achieves 0.6-0.8 A/cm² at 0.6 V in H₂/air — comparable to conventional ink-based cathodes at 0.3 mg_Pt/cm² loading, representing a 75x reduction in Pt usage. The mass activity improvement is due to near-100% Pt surface accessibility versus the 20-40% typical of ink-based layers.

2.2 Pt-Alloy Catalyst Sputtering: Pt₃Co, Pt₃Ni, PtRu

Binary and ternary Pt alloys improve oxygen reduction reaction (ORR) kinetics by modifying the Pt d-band center, weakening OH_ads binding energy. Co-sputtering from multiple targets or sputtering from alloy targets produces controlled compositions.

De-alloying process: Sputter a Pt-rich or Co-rich alloy film, then selectively dissolve the base metal (Co, Ni, Cu) in 0.1 M HClO₄ by cycling potential between 0.05-1.0 V vs. RHE. This creates a nanoporous Pt-skeleton surface with extremely high electrochemical surface area (ECSA > 60 m²/g_Pt) and enhanced ORR activity. The sputtered film provides a controlled, reproducible starting structure for de-alloying — a significant advantage over ink-based alloy catalysts where particle size and composition distributions add variability.

2.3 Nanostructured Thin Film (NSTF) Catalyst Approach

The most advanced thin-film catalyst architecture combines organic whisker substrates with sputtered Pt or Pt-alloy coatings:

1. Grow organic whisker substrate: Perylene red (PR149) deposited by thermal evaporation at 0.5-1.0 nm/s onto a substrate, then annealed at 250-280°C to form crystalline whiskers (aspect ratio 20-50:1, diameter 30-50 nm, length 500-1000 nm, areal density ~30 whiskers/µm²).
2. Sputter Pt onto whiskers: DC magnetron sputtering at 50 W, 5 mTorr Ar, with substrate rotation. Pt conformally coats whisker surfaces at 0.05-0.15 mg_Pt/cm² total loading.
3. Transfer to membrane: Hot-press the Pt-coated whisker film onto Nafion membrane at 130-140°C, 150 psi, for 5-10 minutes.

Result: ECSA of 10-15 m²/g_Pt (lower than Pt/C due to larger crystallites), but specific activity 5-10x higher than conventional Pt/C, yielding net mass activity improvement of 2-4x. Durability is exceptional: < 10% ECSA loss after 30,000 voltage cycles (0.6-1.0 V at 80°C), compared to 40-60% loss for conventional Pt/C.

3) GDL Surface Modification by Plasma Treatment

Gas diffusion layer wettability directly controls water management in operating fuel cells. Too hydrophobic: product water cannot exit, causing cathode flooding and mass transport losses. Too hydrophilic: capillary condensation fills pores, blocking gas transport. Plasma treatment provides precise, tunable wettability modification without affecting bulk GDL properties.

3.1 Plasma Treatment Recipes for GDL Wettability Control

3.2 Effect on Fuel Cell Performance

O₂ plasma-treated cathode GDL (100 W, 60 s): Reduces water contact angle from 140° to ~30°. In a single-cell PEMFC test at 80°C, H₂/air, 100% RH, this produces a 15-25% increase in peak power density at high current (> 1.5 A/cm²) due to improved water removal from the catalyst layer-GDL interface. However, at low humidity (< 50% RH), the same treatment causes 10-15% performance loss due to excessive water removal drying out the membrane.

CF₄ plasma-treated cathode GDL (150 W, 120 s): Increases contact angle from 140° to ~155° by grafting fluorine-containing groups onto carbon fiber surfaces. In the same cell configuration, this improves performance at high humidity (100% RH) by preventing GDL flooding, with 20-30% improvement at current densities above 2.0 A/cm². The treatment penetrates approximately 20-50 µm into the GDL surface — enough to modify the microporous layer interface without altering bulk gas transport properties.

Critical process note: Plasma treatment of GDLs with PTFE-based microporous layers requires careful power control. Above 200 W O₂ plasma for > 120 s, the PTFE binder begins to degrade, releasing fluorine radicals that can etch carbon fibers and create dust particles. For PTFE-loaded GDLs, limit O₂ plasma power to 100-150 W and compensate with longer treatment times.

3.3 Plasma-Deposited Microporous Layers

PECVD can deposit thin fluorocarbon films directly onto carbon paper GDLs as an alternative to conventional PTFE dip-coating:

The PECVD approach eliminates the 350°C sintering step (which can damage carbon fibers and alter GDL pore structure) and provides sub-micron thickness control not achievable with dip-coating.

4) Bipolar Plate Coatings: Corrosion Protection and Contact Resistance

Metallic bipolar plates (SS316L, Ti, Al alloys) offer significant advantages over graphite — lower cost, thinner profiles, and suitability for stamping-based mass production. However, bare metals corrode rapidly in the PEMFC environment (pH 2-3, 60-90°C, potential up to 1.0 V vs. SHE at the cathode), releasing metal ions that poison the membrane and catalyst. The DOE target for bipolar plate corrosion current is < 1 µA/cm² at 0.6 V vs. SHE in pH 3 H₂SO₄ at 80°C, and interfacial contact resistance (ICR) must remain below 10 mOhm-cm² after 5,000 hours of operation.

4.1 Sputtered Protective Coatings: TiN, CrN, and Amorphous Carbon

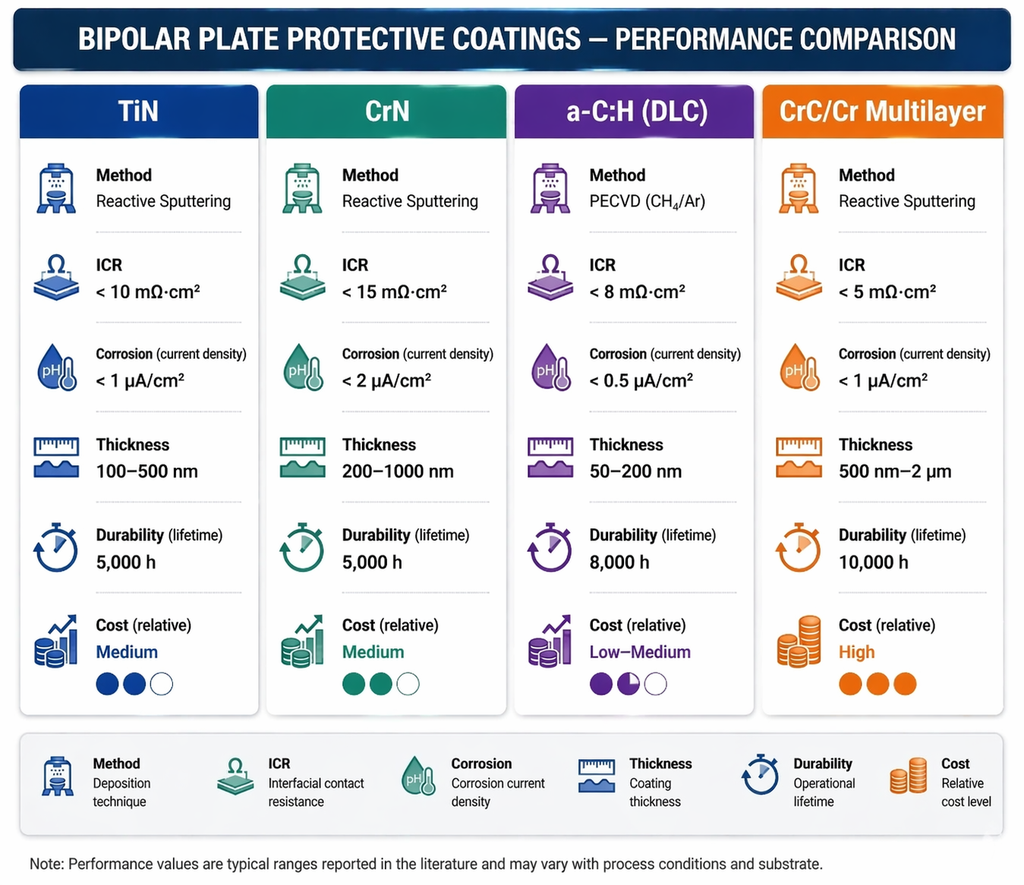

4.2 Corrosion and Contact Resistance Performance

Key findings: Single-layer TiN and CrN coatings meet the DOE corrosion target (< 1 µA/cm²) but ICR can drift above 10 mOhm-cm² during prolonged operation due to passive oxide growth on the nitride surface. Multilayer architectures (Cr/a-C or TiN/a-C) solve this by combining the corrosion barrier of the nitride with the low and stable contact resistance of amorphous carbon. The a-C top layer resists oxide formation and maintains ICR below 10 mOhm-cm² through 5,000+ hours.

4.3 Pre-Coating Surface Preparation

Coating adhesion on stainless steel bipolar plates requires thorough surface preparation. A standard sequence using plasma cleaning and RIE:

1. Solvent clean: Ultrasonic in acetone (10 min) then isopropanol (10 min), blow dry with N₂.
2. Ar plasma clean: 200 W RF, 30 mTorr Ar, 5-10 minutes. Removes residual organics and activates surface.
3. Ar⁺ sputter etch (in-situ): 300 V bias, 5 mTorr Ar, 5-10 minutes. Removes native oxide (5-10 nm Cr₂O₃ on SS316L) and creates fresh metallic surface for adhesion.
4. Deposit adhesion layer immediately: Ti or Cr interlayer at 200 W DC, 5 mTorr, 20-50 nm. No vacuum break between etch and deposition.

Omitting the in-situ sputter etch is the single most common cause of coating delamination on bipolar plates. The native oxide re-grows within seconds of air exposure, so the etch-to-deposition sequence must occur in the same vacuum cycle.

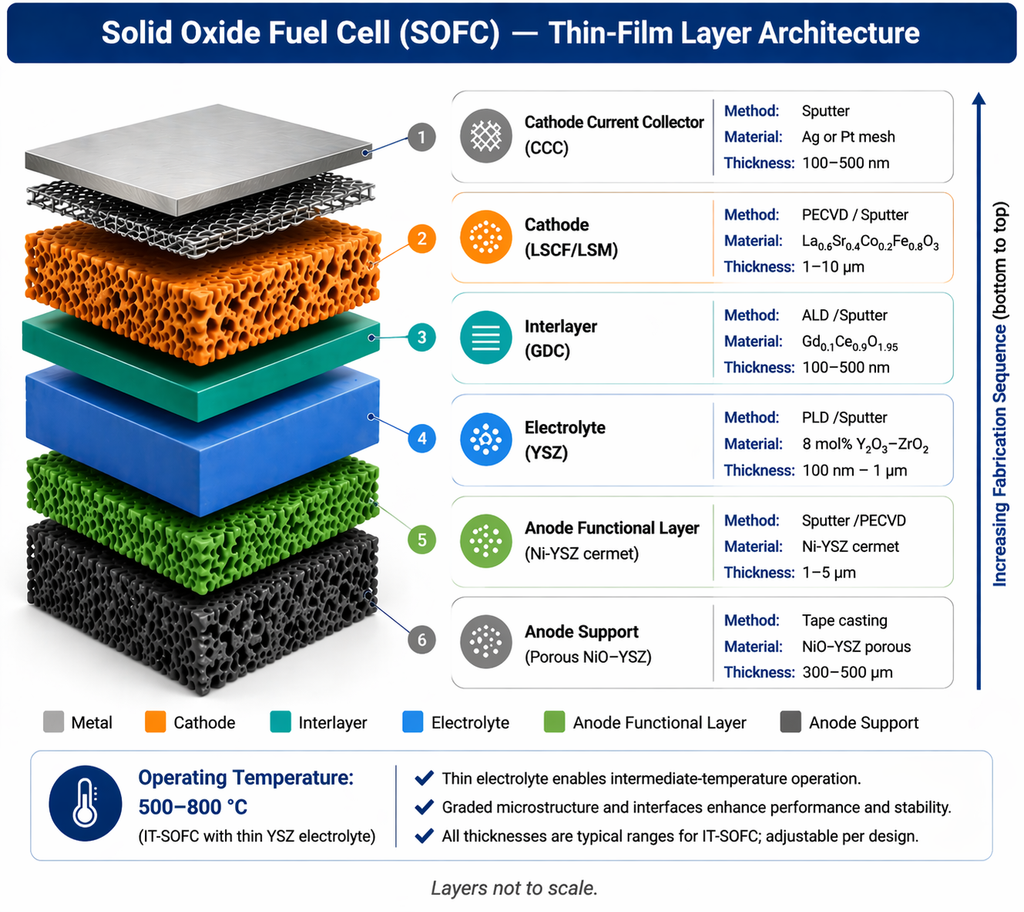

5) Solid Oxide Fuel Cell (SOFC) Thin Films

SOFCs operate at 600-900°C and use ceramic electrolytes and electrodes. Conventional SOFCs use thick (> 10 µm) electrolytes fabricated by tape casting and sintering at 1400-1600°C. Thin-film electrolytes (0.1-5 µm) deposited by ALD, PECVD, or sputtering enable intermediate-temperature operation (400-600°C) by dramatically reducing ohmic resistance — the primary loss mechanism in SOFCs at reduced temperatures.

5.1 ALD of YSZ (Yttria-Stabilized Zirconia) Electrolyte

ALD produces the densest, most pinhole-free thin electrolyte films, critical for preventing gas crossover in sub-micron electrolytes.

Performance: A 200 nm ALD YSZ electrolyte on a porous LSM-YSZ cathode/YSZ substrate achieves area-specific resistance (ASR) of 0.15 Ohm-cm² at 600°C, compared to > 1 Ohm-cm² for a conventional 10 µm tape-cast electrolyte at the same temperature. This enables intermediate-temperature SOFC operation where conventional thick electrolytes have prohibitive ohmic losses. For detailed ALD process fundamentals, see our ALD thin film deposition guide.

5.2 PECVD of SOFC Electrode and Interlayer Films

PECVD deposits electrode and interlayer materials faster than ALD, suitable for thicker films where pinhole-free density is less critical.

5.3 Sputtered SOFC Electrode Films

Sputtering is used for dense, thin SOFC electrode and current collector layers:

• LSM (La₀.₈Sr₀.₂MnO₃) cathode: RF magnetron sputtering from a ceramic LSM target, 150-300 W, 5-10 mTorr Ar/O₂ (4:1), substrate at 300-500°C. Deposition rate: 2-5 nm/min. Film thickness: 200-1000 nm. Post-anneal at 800°C in air crystallizes the perovskite phase. Produces dense, well-adhered cathode layers with controlled porosity achievable by oblique-angle deposition or post-deposition etching.
• Pt current collector: DC sputtering, 100 W, 5 mTorr Ar, room temperature. 100-200 nm thick. Patterned by lift-off or shadow mask to define electrode area for electrochemical testing.
• NiO-YSZ anode: Co-sputtering from NiO and YSZ targets. After reduction in H₂ at 600°C, NiO converts to Ni, creating a porous Ni-YSZ cermet with controlled Ni:YSZ ratio.

6) PEM Electrolyzer Components

PEM water electrolyzers split water into hydrogen and oxygen using a PEM (typically Nafion) as the electrolyte. The acidic, high-potential environment at the anode (1.4-2.0 V vs. SHE during operation, pH 1-2) is even more corrosive than the fuel cell cathode, limiting catalyst choices to IrO₂ and RuO₂ — both expensive and scarce. Thin-film deposition reduces precious metal usage while maintaining electrolyzer performance.

6.1 Reactive Sputtering of IrO₂ and RuO₂ Anode Catalysts

Performance comparison: A 200 nm sputtered IrO₂ film (0.04 mg_Ir/cm²) achieves 1.0-1.5 A/cm² at 1.8 V cell voltage, compared to conventional spray-coated IrO₂ catalyst layers at 1.0-2.0 mg_Ir/cm² loading achieving 1.5-2.0 A/cm² at the same voltage. The sputtered film delivers 50-75% of the conventional performance at 25-50x lower Ir loading, representing a dramatically better mass-specific activity. For higher performance, the sputtered IrO₂ can be deposited onto a porous Ti substrate (etched Ti felt or 3D-printed Ti scaffold) to increase the geometric surface area.

6.2 Ti Porous Transport Layer (PTL) Surface Treatment

The porous transport layer (PTL) at the anode must be hydrophilic for water access, electrically conductive, and corrosion-resistant. Sintered Ti powder PTLs benefit from plasma treatment before catalyst deposition:

• Native oxide removal: Ar⁺ sputter etch, 300-500 V bias, 5-10 mTorr, 10-15 minutes. Removes TiO₂ passivation layer to improve electrical contact and catalyst adhesion.
• Surface activation: O₂ plasma, 100-200 W, 200-500 mTorr, 60-120 s after sputter etch removal of thick native oxide. Creates a thin, uniform, hydrophilic TiO₂ surface (~2-5 nm) that promotes water wetting while maintaining conductivity through the thin oxide.
• Catalyst deposition follows immediately in the same vacuum system to prevent re-growth of thick native oxide.

7) Process Comparison: Thin-Film vs. Conventional Fabrication

8) Equipment Selection Guide

The table below maps each fuel cell fabrication process step to the appropriate NineScrolls equipment, with specific configurations recommended for each application.

9) Troubleshooting Guide

Conclusion

Thin-film and plasma processing techniques address the critical bottlenecks in fuel cell commercialization: reducing precious metal usage (Pt for PEMFC, Ir for electrolyzers), improving component durability (bipolar plate coatings), enabling new cell architectures (intermediate-temperature SOFC with thin electrolytes), and providing reproducible, scalable fabrication methods. The specific process parameters in this guide provide tested starting points for each fuel cell component — each will require optimization for your specific cell design, operating conditions, and performance targets.

The combination of sputter deposition for catalyst and protective films, ALD for dense SOFC electrolytes, PECVD for functional coatings, and plasma treatment for surface engineering provides a complete thin-film processing toolkit for fuel cell R&D and pilot-scale manufacturing. For application-specific guidance on process development for your fuel cell components, our process engineers can provide consultation tailored to your cell chemistry and operating requirements.

References and Further Reading

• O'Hayre, R. P., et al. Fuel Cell Fundamentals, 3rd ed. Wiley (2016). ISBN 978-1119113805.
• Debe, M. K. "Electrocatalyst approaches and challenges for automotive fuel cells." Nature 486, 43-51 (2012). doi:10.1038/nature11115
• Wang, Y., et al. "A review of polymer electrolyte membrane fuel cells: Technology, applications, and needs on fundamental research." Applied Energy 88(4), 981-1007 (2011). doi:10.1016/j.apenergy.2010.09.030
• Wee, J. H. "Applications of proton exchange membrane fuel cell systems." Renewable and Sustainable Energy Reviews 11(8), 1720-1738 (2007).
• Carmo, M., et al. "A comprehensive review on PEM water electrolysis." International Journal of Hydrogen Energy 38(12), 4901-4934 (2013). doi:10.1016/j.ijhydene.2013.01.151
• Wachsman, E. D. & Lee, K. T. "Lowering the temperature of solid oxide fuel cells." Science 334(6058), 935-939 (2011).
• NineScrolls. "Advanced Materials Processing: From Nanotechnology to Energy Applications"
• NineScrolls. "ALD Thin Film Deposition Guide"
