Coater/Developer Systems: Equipment Selection & Process Optimization Guide

By NineScrolls Engineering · 2026-03-28 · 14 min read · Materials Science

Target Readers: Photolithography process engineers, cleanroom managers, equipment engineers, R&D procurement teams, and technical decision-makers evaluating coater/developer track systems. Engineers upgrading from manual spin coaters will find the architecture comparison and ROI analysis valuable; experienced track users can skip to the recipe optimization, uniformity troubleshooting, and module configuration sections.

1) Introduction: Why Coater/Developer Track Systems?

Photolithography is the backbone of micro- and nanofabrication. Every patterned device — whether a semiconductor chip, MEMS sensor, microfluidic channel, or photonic waveguide — depends on the quality of the resist coating and development steps. While manual spin coaters served early R&D needs, modern process requirements demand the precision, repeatability, and throughput that only integrated coater/developer systems can deliver.

A coater/developer system (often called a "track" or "track system") combines three core process modules into a single, recipe-driven platform:

• Coater module: Programmable spin coating with precise speed, acceleration, and dispense control
• Developer module: Automated chemical development with controlled dispense, timing, and rinse sequences
• Hotplate module: Temperature-controlled baking for soft bake, post-exposure bake (PEB), and hard bake steps

This integration eliminates the manual transfers, timing variability, and environmental exposure that plague standalone tool workflows. The result: tighter process windows, fewer defects, higher yield, and faster cycle times.

2) Track System Architecture vs. Manual Spin Coaters

Understanding the architectural differences between integrated track systems and manual spin coaters is essential for evaluating the upgrade path. The comparison extends well beyond spin speed specifications.

Architectural Comparison

When to Upgrade from Manual to Track

Consider upgrading to an integrated coater/developer when any of the following apply:

• Uniformity requirements tighten: Sub-micron lithography demands <1% thickness uniformity, which manual tools struggle to achieve consistently.
• Multi-user labs: Operator-to-operator variability dominates your process variation budget. Recipe-stored track systems eliminate this.
• Throughput scaling: Moving from proof-of-concept to low-volume production requires predictable cycle times.
• Sensitive resists: Chemically amplified resists (CARs), polyimides, and deep-UV resists are highly sensitive to delay times between coat/bake/expose/develop. Integrated systems minimize these delays.
• Data requirements: Process traceability, recipe logging, and SPC data become critical for quality systems (ISO, ITAR, etc.).

3) Module Configurations and System Layout

One of the key advantages of modern coater/developer systems is modular configurability. Rather than purchasing a fixed-function tool, engineers can specify the exact combination of coater, developer, and hotplate modules to match their process flow.

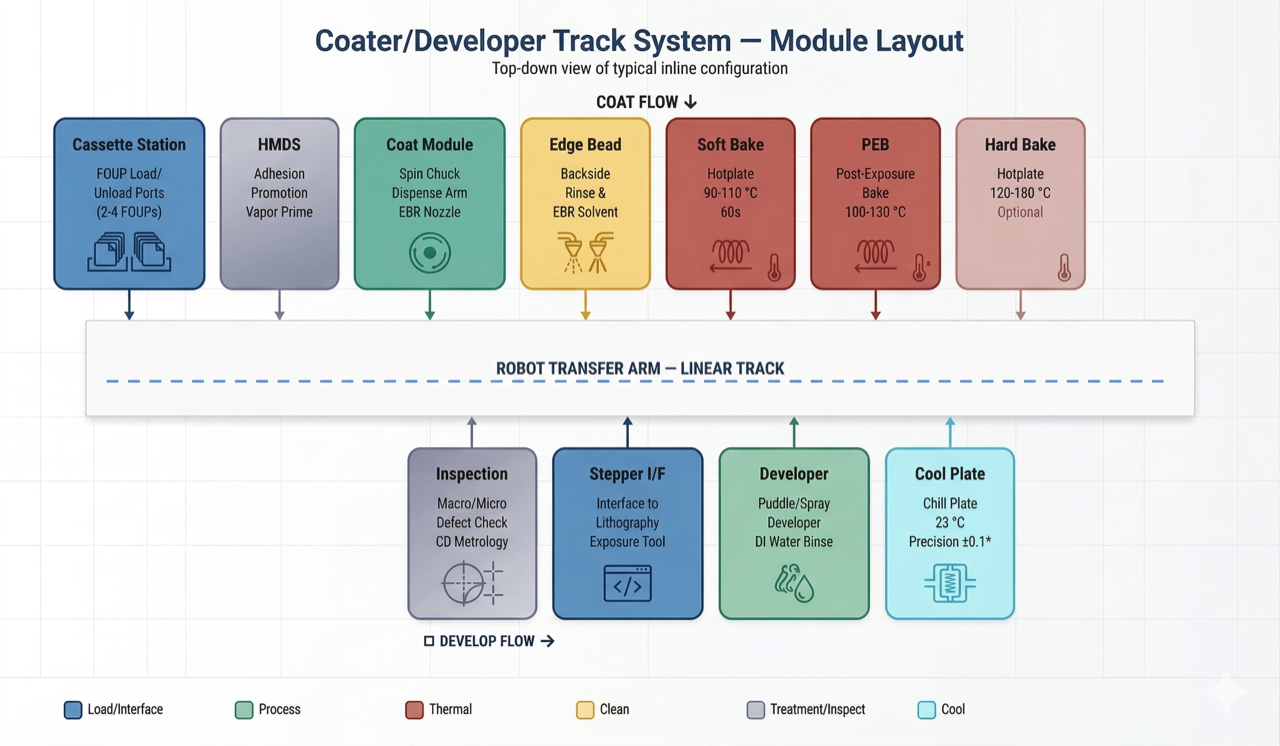

Figure 1: Typical coater/developer track system layout — modules are connected by a central robot transfer arm for automated wafer handling through the complete lithography process

Common Configuration Examples

Layout Considerations

When planning a system configuration, consider the following layout factors:

• Process flow sequence: Modules should be arranged to follow the natural process order (coat → soft bake → [expose externally] → PEB → develop → hard bake) to minimize wafer handling and delay times.
• Hotplate bottleneck: Bake steps (60–120 s typical) are often the throughput limiter. Adding a second or third hotplate can significantly increase overall throughput.
• Chemical compatibility: If running multiple resist chemistries (e.g., positive and negative resists), dedicated coater modules prevent cross-contamination.
• Footprint constraints: At ~1.0 m × 0.8 m for a full system, coater/developer tracks fit into standard cleanroom bays. Verify ceiling height for exhaust ducting.

4) Spin Coating Physics: A Recap for Equipment Context

Understanding spin coating physics is essential for optimizing coater module performance. For the complete theoretical treatment, see our Spin Coating & Development Guide. Here we summarize the key relationships as they apply to equipment specification and recipe development.

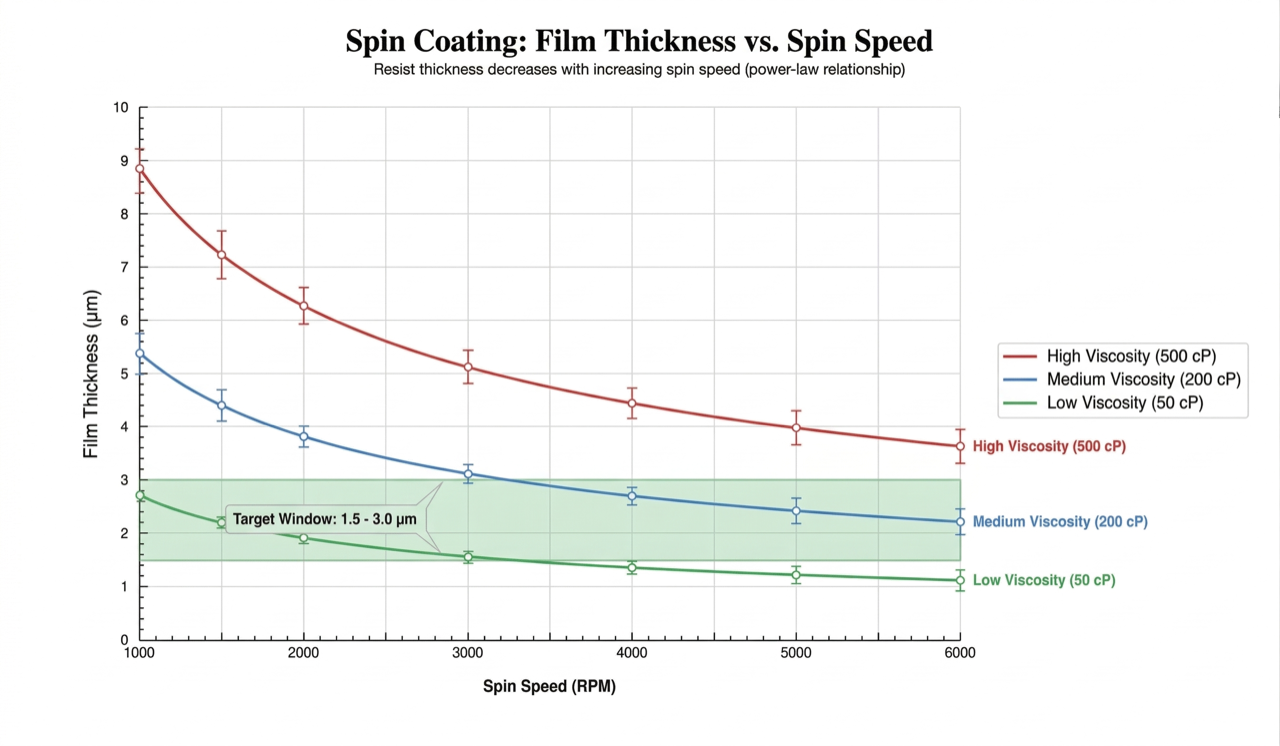

Figure 2: Spin coating thickness vs speed relationship — higher viscosity resists produce thicker films at equivalent speeds, following a power-law curve; the green band indicates the typical target thickness window

The Fundamental Thickness Equation

Film thickness t from spin coating follows the Meyerhofer relationship:

The practical implication: doubling the spin speed reduces thickness by approximately 30% (since t ∝ ω^−0.5). This means:

• Coarse thickness control comes from resist dilution (concentration C)
• Fine thickness control comes from spin speed (ω)
• The ±1 rpm accuracy of a track coater translates to <0.1% thickness variation from speed alone

Why Equipment Specs Matter for Film Quality

5) The Coater Module: Design and Operation

The coater module is the heart of the track system, responsible for depositing uniform photoresist films. Modern coater modules incorporate several subsystems that work together to achieve <0.5% thickness uniformity.

Key Coater Subsystems

• Spin motor and chuck: A direct-drive brushless motor provides the torque and speed stability needed for ±1 rpm accuracy up to 8000 rpm. The vacuum chuck holds wafers from small pieces through 12” (300 mm) substrates, with interchangeable chuck inserts for different wafer sizes. Square substrates are accommodated with specialized chuck designs.
• Dispense system: Up to 2 photoresist (PR) lines allow switching between resist types without line purging. Dispense methods include static dispense (resist applied to stationary wafer), dynamic dispense (resist applied during low-speed rotation at 300–500 rpm), and center-pour with programmable volume control. Syringe pumps or pressurized vessels deliver consistent dispense volumes.
• Bowl and drain: The catch bowl collects excess resist flung off during spinning. Proper bowl geometry minimizes turbulent airflow that can disrupt the film. Drain lines route waste to solvent collection systems.
• Edge bead removal (EBR): Optional EBR systems dispense solvent (typically acetone or PGMEA) at the wafer edge during a slow-speed rotation step, removing the thick resist bead that forms at the periphery. EBR improves contact between the mask and wafer edge and prevents resist flaking during handling.
• Lid and enclosure: A closeable lid during spinning creates a controlled solvent vapor environment, reducing evaporation-driven thickness gradients, especially for volatile solvents.

Coater Recipe Structure

A typical spin coating recipe consists of multiple programmable steps:

Each step’s parameters (speed, acceleration, time, dispense triggers) are stored in the recipe and recalled for every run, eliminating operator variability.

6) The Developer Module: Design and Process Control

The developer module handles the critical pattern-transfer step: dissolving exposed (positive resist) or unexposed (negative resist) areas to reveal the underlying substrate. Developer process control directly impacts critical dimension (CD) accuracy, resist sidewall angle, and defect density.

Developer Subsystems

• Spin motor and chuck: Similar to the coater module but typically rated to a lower maximum speed (up to 5000 rpm) since development spin-dry speeds are lower than coating speeds. The ±1 rpm accuracy remains critical for rinse uniformity.
• Chemical dispense: Up to 2 developer chemical lines plus a dedicated DI water rinse line. Common developers include TMAH-based (e.g., AZ 300 MIF, CD-26) for positive resists and specialized developers for negative and SU-8 resists. Dispense arm positioning is programmable for center dispense or scanning dispense patterns.
• Development methods:
  • Puddle development: Developer is dispensed onto a slowly rotating wafer (0–50 rpm) to form a stationary puddle, typically 2–3 mm deep. The wafer is held static for the development time (30–90 s typical), then rinsed. Puddle development provides excellent CD uniformity for dense patterns.
  • Spray development: Developer is continuously sprayed onto a rotating wafer (200–500 rpm). Fresh developer constantly replenishes the reaction zone, preventing local depletion. Preferred for thick resists, high-aspect-ratio features, and large wafers.
  • Multi-puddle: Multiple puddle/drain cycles improve clearing of high-density patterns without the resist loss caused by continuous spray.
• DI water rinse: Post-develop rinse with deionized water stops the development reaction. Rinse flow rate, duration, and wafer rotation speed affect final pattern quality. Insufficient rinsing leaves developer residues; excessive rinsing can cause pattern collapse in high-aspect-ratio features.

Developer Recipe Structure

7) Hotplate Integration: Bake Module Design

Bake steps are arguably the most underappreciated — yet most critical — elements of the lithography process. Temperature errors of just ±1°C during post-exposure bake (PEB) of chemically amplified resists can shift critical dimensions by several nanometers. Integrated hotplate modules address this with precision temperature control and minimized transfer delays.

Hotplate Specifications

• Temperature range: Room temperature to 200°C standard, with higher-temperature options available for polyimide curing (up to 350–400°C) and specialty processes.
• Temperature uniformity: ±0.5°C across the hotplate surface. Multi-zone heater designs compensate for edge cooling effects.
• Ramp rate: Fast thermal response enables rapid transitions between soft bake (90–110°C typical) and PEB (110–130°C typical) temperatures.
• Proximity baking: Wafers are positioned on proximity pins (50–200 µm above the hotplate surface) rather than in direct contact, preventing backside contamination and enabling uniform heating even with wafer bow.
• Cooldown plate: Some configurations include a separate cooldown station to bring wafers to ambient temperature quickly after baking, preventing resist reflow during handling.

Bake Step Functions in the Lithography Flow

Integration Advantages

The key benefit of integrated hotplate modules is controlled transfer timing. In manual workflows, the delay between spin coating and soft bake (or between exposure and PEB) varies from seconds to minutes depending on operator speed and queue position. This variability directly impacts:

• Solvent retention: Longer coat-to-bake delays allow continued solvent evaporation in ambient air, shifting the effective soft-bake profile.
• PEB delay sensitivity: Chemically amplified resists (DUV, EUV) are notoriously sensitive to the exposure-to-PEB delay. Acid diffusion and quencher deactivation continue at room temperature, causing CD drift of 1–5 nm per minute of delay in some resist systems.
• Ambient contamination: Airborne bases (amines from HVAC systems) can neutralize photogenerated acid in CARs during transfer delays, causing T-top profiles or incomplete development at the resist surface.

8) Environmental Control and Its Impact on Process

Environmental control is often treated as an optional upgrade, but for demanding photolithography processes, it can be the difference between meeting and missing specifications. The two primary environmental parameters are temperature and humidity.

Temperature Control: 23±0.5°C

Resist viscosity is temperature-dependent: a 1°C change in ambient temperature can shift viscosity by 1–3%, directly affecting film thickness. In labs without environmental control, morning-to-afternoon temperature swings of 2–4°C can cause thickness drifts of 2–6%. An enclosed coater/developer system with 23±0.5°C control eliminates this variable.

Humidity Control: 45±5% RH

Humidity affects multiple aspects of the lithography process:

• Resist wetting: Low humidity (<30% RH) increases resist-substrate contact angle, causing poor spreading and comets. High humidity (>60% RH) can cause moisture absorption into hygroscopic resists.
• Solvent evaporation rate: Humidity modulates the partial pressure of water in the vapor above the spinning film, indirectly affecting solvent evaporation kinetics and final film thickness.
• HMDS adhesion promotion: HMDS (hexamethyldisilazane) vapor priming requires controlled humidity. Too much moisture on the wafer surface creates a thick water layer that reacts with HMDS to form particulates rather than a monolayer. Too little moisture provides insufficient hydroxyl groups for HMDS to react with.
• Development rate: Aqueous TMAH developer concentration can change with humidity-driven water absorption, subtly shifting development rates.

When Is Environmental Control Necessary?

Environmental control is strongly recommended when:

• Thickness uniformity targets are <1% (3σ)
• CD control requirements are <10 nm
• Using chemically amplified resists (CARs)
• Running multi-layer lithography where layer-to-layer registration depends on consistent film thickness
• The cleanroom HVAC cannot maintain ±1°C and ±5% RH at the tool location

9) Process Recipe Programming and Optimization

The power of an integrated coater/developer system lies in its ability to store, recall, and execute multi-step process recipes with perfect consistency. Recipe optimization is where equipment capability translates to process performance.

Recipe Development Workflow

1. Start with vendor spin curves: Photoresist datasheets provide spin speed vs. thickness curves. Use these as starting points, noting that they are typically generated on specific equipment with specific environmental conditions.
2. Establish baseline recipe: Set initial parameters (speed, time, bake temperature/time) per the resist datasheet. Run 3–5 wafers and measure thickness at 5–9 points across each wafer.
3. Optimize acceleration ramp: Acceleration affects radial uniformity more than thickness. Start with a moderate ramp (2000–3000 rpm/s) and adjust:
   • Too slow (≬500 rpm/s): Resist pools at center, causing thick center / thin edge
   • Too fast (≬5000 rpm/s): Initial spreading shock can create radial striations on viscous resists
   • Optimal: Typically 1000–4000 rpm/s, depending on resist viscosity
4. Fine-tune dispense parameters: Adjust dispense volume, dispense speed (static vs. dynamic), and timing. Over-dispensing wastes expensive resist; under-dispensing causes incomplete coverage, especially on large wafers.
5. Calibrate bake temperatures: Verify actual wafer surface temperature using thermocouple wafers or temperature indicator strips. The setpoint on the hotplate controller may differ from the actual wafer temperature, especially when using proximity pins.
6. Validate development: Optimize development time, method (puddle vs. spray), and rinse parameters. Use optical inspection and profilometry to confirm complete clearing of exposed (or unexposed) areas.
7. Run process capability study: Once optimized, run 20–25 wafers to establish Cp/Cpk for thickness, CD, and defect density. This becomes your process baseline.

Common Recipe Optimization Parameters

10) Uniformity Optimization: Achieving <0.5% (3σ)

Achieving and maintaining <0.5% thickness uniformity (3σ) across the wafer requires systematic attention to every variable in the coating process. Here is a hierarchy of factors, ranked by typical impact:

Uniformity Factor Hierarchy

1. Spin speed stability (±1 rpm): The most fundamental requirement. Speed oscillations map directly to thickness oscillations. Verify motor stability with a tachometer or the system’s built-in speed monitoring.
2. Acceleration profile: Abrupt acceleration can create radial thickness gradients. Use programmable S-curve ramps for viscous resists (>50 cP).
3. Resist temperature: Bring resist to thermal equilibrium with the coating environment (23±0.5°C) before dispensing. Cold resist from refrigerated storage is more viscous and produces thicker, less uniform films.
4. Dispense centering: Off-center dispense creates asymmetric thickness profiles. Use self-centering dispense arms or verify nozzle alignment with each resist change.
5. Exhaust flow balance: Asymmetric exhaust flow causes one side of the wafer to dry faster than the other. Verify exhaust symmetry and minimize turbulence.
6. Ambient humidity: Humidity gradients across the wafer surface (e.g., from door openings or operator breathing) introduce local thickness variations. Environmental enclosures eliminate this.
7. Chuck flatness and vacuum: Non-uniform chuck vacuum or a warped chuck transfers waviness to the resist film. Inspect chucks periodically and replace worn O-rings.
8. Resist filtration: Gel particles and agglomerates in aged resist create local thick spots. Use inline filtration (0.2 µm) and monitor resist shelf life.

Measurement and Monitoring

To verify uniformity, measure film thickness at a minimum of 5 points (center, 4 cardinal edge points) or ideally 9–49 points using an automated mapping system. Common measurement tools include:

• Spectroscopic reflectometry: Non-contact, fast, accurate for transparent films (resist, oxide, nitride). 1–2 nm precision.
• Ellipsometry: Higher precision (<0.5 nm) but slower point-by-point measurement. Best for process development.
• Profilometry: Contact or optical; measures step height at resist edges. Useful for thick resists where optical techniques saturate.

11) Defect Troubleshooting Guide

Even with optimized recipes, defects can occur due to equipment issues, resist degradation, or environmental upsets. Below is a systematic troubleshooting guide for the most common coater/developer defects.

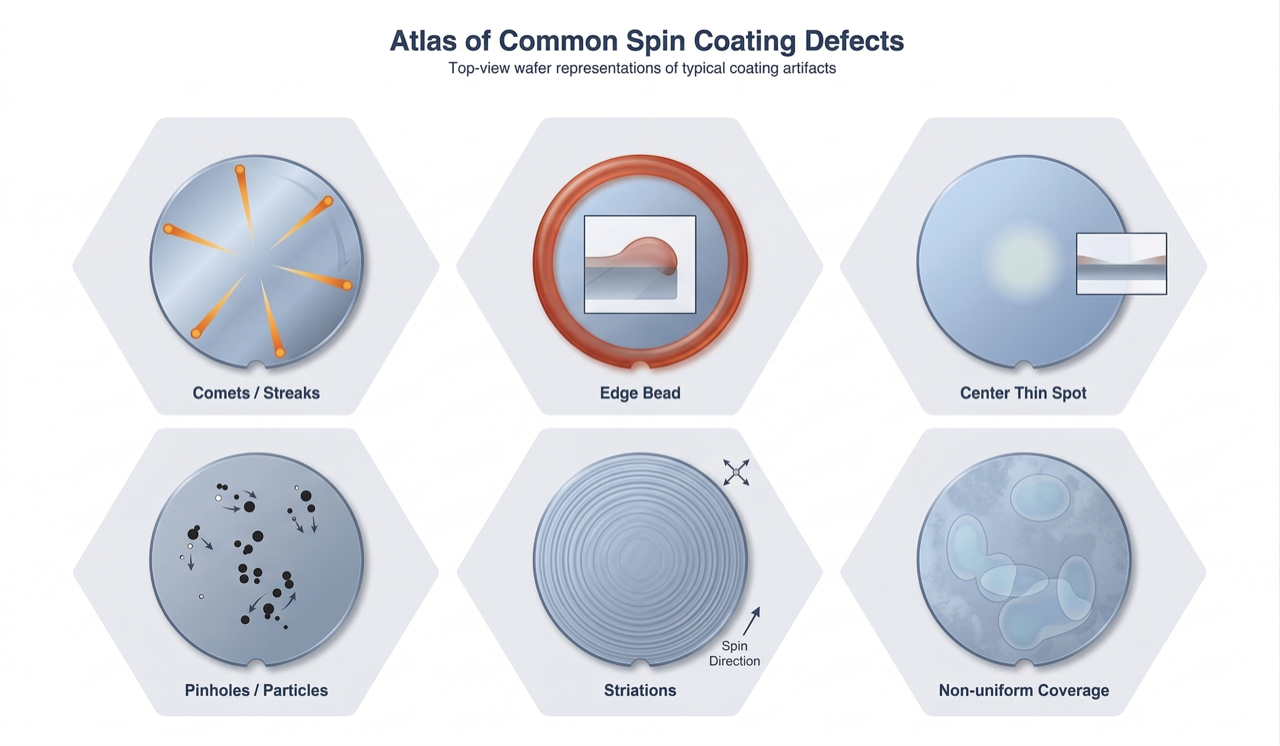

Figure 3: Six common spin coating defects — comets/streaks from particles, edge bead from surface tension, center thin spots from dispense issues, pinholes from contamination, striations from solvent evaporation, and non-uniform coverage from poor wetting

Coating Defects

Development Defects

12) Equipment Selection Criteria

Selecting the right coater/developer system requires matching equipment capabilities to current and anticipated process requirements. The following framework organizes the key selection criteria.

Primary Selection Criteria

Secondary Selection Criteria

• Software and recipe management: Look for systems with intuitive touchscreen interfaces, unlimited recipe storage, recipe locking for production environments, and data logging for traceability.
• Chemical compatibility: Verify wetted materials (dispense lines, O-rings, bowl coatings) are compatible with your resist solvents (PGMEA, NMP, cyclopentanone, etc.) and developers (TMAH, KOH).
• Maintenance access: Evaluate ease of bowl removal, drain cleaning, chuck exchange, and dispense line replacement. Systems designed for user maintenance reduce downtime and service costs.
• Upgrade path: Can additional modules be added later? If you start with a coat-only system, can you add a developer module without replacing the entire tool?
• Safety features: Solvent vapor detection, emergency stop, interlock on lid/cover, and proper exhaust connections are essential for cleanroom safety compliance.

13) Frequently Asked Questions (FAQ)

14) Summary and Next Steps

Coater/developer track systems transform photolithography from an operator-dependent art into a repeatable, recipe-driven manufacturing process. By integrating spin coating, chemical development, and precision baking into a single platform with ±1 rpm speed control, ±0.5°C bake uniformity, and optional environmental enclosures, these systems enable the <0.5% thickness uniformity and tight CD control that modern micro- and nanofabrication demands.

Key takeaways for equipment selection:

• Match wafer size range and module configuration to your current and 3–5 year process roadmap
• Prioritize spin speed accuracy (±1 rpm) and acceleration flexibility over maximum speed
• Evaluate hotplate temperature range and uniformity for your resist portfolio, especially if using CARs
• Consider environmental control as an investment in process stability, not just an optional feature
• Choose a modular system that can grow with your needs — from coat-only to full lithography track

For a deeper dive into spin coating theory, photoresist selection, and development chemistry, see our companion guide: Spin Coating & Development: A Complete Guide to Photoresist Processing.
