University of Arizona Opens $35.5M Semiconductor Cleanroom With 12-Inch Wafer Capability

By NineScrolls Team · 2026-03-24 · 4 min read · Industry

Cleanroom Doubles in Size With $35.5 Million Investment

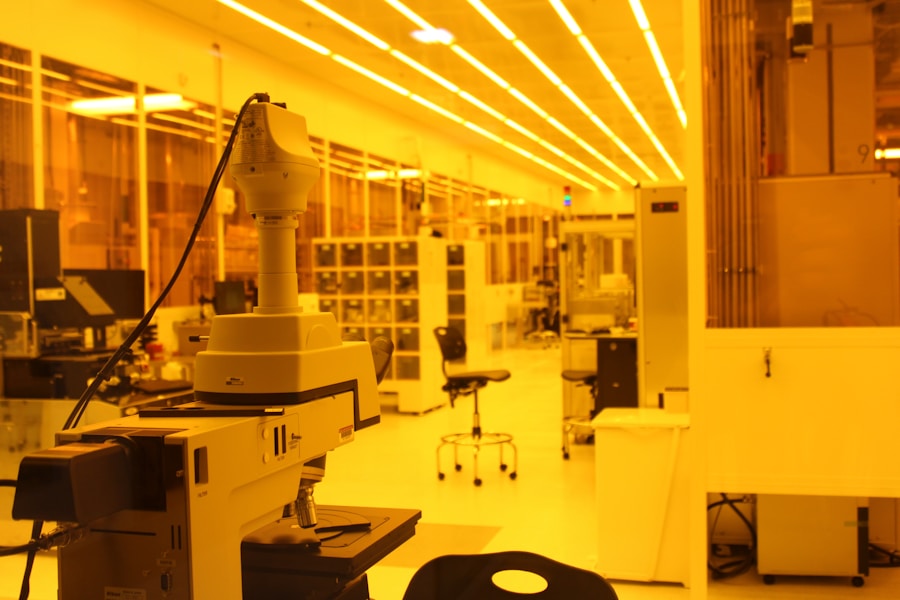

The University of Arizona has opened its newly expanded Nanofabrication Core Facility inside the Electrical and Computer Engineering Building in Tucson. Funded by a $35.5 million award from the Arizona Commerce Authority, the cleanroom grew from 2,800 to 6,800 square feet — air inside is rated 10,000 times cleaner than outside ambient conditions. An additional $4.5 million of the total was earmarked for statewide semiconductor workforce development.

The facility operates as an open-access environment serving university researchers, federal agencies, and private-sector partners. It supports work across microelectronics, optoelectronic and photonic device fabrication, and quantum technology systems. The February 2026 ribbon-cutting included demonstrations of a digital-twin cleanroom for undergraduate training and an augmented-reality classroom equipped with AR headsets — tools designed to accelerate hands-on learning before students ever touch a live process chamber.

Sputtering, Plasma Etch, and 12-Inch CMP: Inside the New Fab

The expanded facility houses a full suite of thin film deposition and plasma processing tools. Thin film capabilities include electron-beam evaporation, thermal evaporation, PVD sputtering systems, and parylene conformal coating. On the etch side, the cleanroom runs reactive ion etching (RIE) and inductively coupled plasma (ICP) tools capable of processing silicon nitride, silicon dioxide, polysilicon, germanium, and polymer films.

A dedicated planarization bay houses chemical-mechanical polishing (CMP) equipment supporting 300 mm (12-inch) wafers — making it one of the first university cleanrooms in the country with full 12-inch CMP capability. The facility rounds out its process flow with photolithography, metrology, and packaging stations, giving researchers and students a complete front-end-to-back-end fabrication line under one roof.

Arizona's Semiconductor Corridor Gains Another Node

The University of Arizona expansion is the latest addition to a rapidly densifying semiconductor ecosystem in the state. TSMC is building three leading-edge fabs in North Phoenix, each featuring cleanrooms roughly double the size of a standard logic fab. Intel continues to expand its Ocotillo campus in Chandler. ASM International broke ground on a $320 million ALD innovation hub in Scottsdale in 2025. Since TSMC's initial announcement, the Greater Phoenix Economic Council has tracked 39 semiconductor-related companies relocating to the region, contributing over $37 billion in capital investment.

Fourteen of TSMC's key equipment and materials suppliers have established or announced U.S. facilities to support the Arizona operations, creating a clustering effect that pulls vacuum component makers, gas delivery specialists, and process monitoring firms into the same geographic corridor. The university's upgraded fab sits at the academic anchor point of this supply chain, providing a venue where next-generation process recipes can be developed before they reach high-volume manufacturing.

25,000 Jobs and the Equipment Training Gap

Arizona's semiconductor buildout is projected to generate roughly 25,000 direct jobs. Filling those roles requires workers who can operate and maintain the deposition, etch, and metrology tools that line a modern fab. The University of Arizona facility addresses this directly: students run real PVD sputtering depositions, real ICP plasma etches, and real CMP polishing steps — not simulations.

The facility is part of the broader Southwest Nano-Lab Alliance alongside the University of Utah, the University of New Mexico, and Rio Salado College. Governor Hobbs also announced the Future48 Workforce Accelerator at GateWay Community College in Phoenix, which features a full-size mock cleanroom with 11 customizable modular stations. TSMC runs its own Technician Apprenticeship Program in partnership with Maricopa Community Colleges. Together, these programs form a layered pipeline — from community college technicians to PhD-level process engineers — all trained on the same classes of equipment that run in production fabs.

What This Means for Plasma Processing and Thin Film Equipment

Every university cleanroom expansion is an order for equipment. The Arizona facility's tool set — ICP etch systems, RIE chambers, PVD sputtering sources, e-beam evaporators — represents direct demand for plasma processing and thin film deposition hardware. When a university builds out 12-inch CMP capability and full etch-deposition process flows, it signals to the equipment supply chain that the region is serious about supporting advanced node development from R&D through production.

For plasma source manufacturers, target suppliers, vacuum component makers, and gas delivery system integrators, the Arizona corridor now offers a rare combination: three TSMC fabs driving high-volume demand, an ASM ALD center pushing process innovation, and a university fab training the next generation of engineers on production-grade tools. Equipment makers who embed their platforms in university training programs gain a long-term advantage — engineers tend to specify the tools they learned on. The $35.5 million Tucson cleanroom is not just an academic facility; it is a proving ground for the equipment that will fill Arizona's fabs for the next decade.
