TSMC's 4 U.S. Fabs Now Fully Booked as Arizona 3nm Equipment Install Targets Q3 2026
By NineScrolls Team · 2026-04-04 · 4 min read · Industry
All Four Arizona Fabs Now Reserved
All four of TSMC's planned U.S. fabs in Arizona are now fully booked by customers, according to a March 24, 2026 report from TrendForce. Capacity at the first three fabs had been gradually reserved over previous quarters, but the latest intelligence shows bookings have extended to angstrom-class nodes at a fourth fab — signaling that demand for American-made advanced silicon is locked in through the end of the decade.
TSMC's overseas fabs could represent 20% of the company's total capacity by 2028. For sub-2nm nodes specifically, the split is projected at 70% Taiwan and 30% U.S. by 2030.
3nm Equipment Installation Months Ahead of Schedule

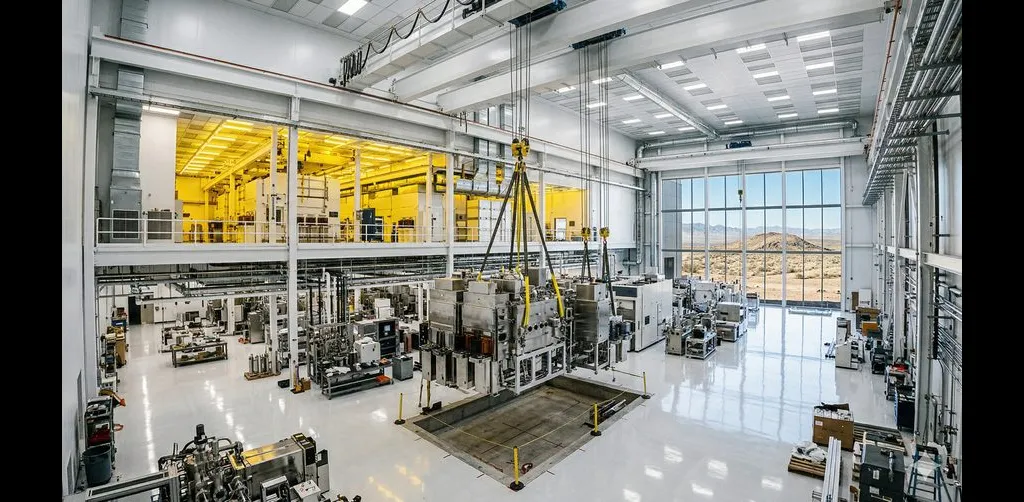

TSMC's Fab 21 phase 2 (known as P2) will begin equipment installation for 3nm production in the third quarter of 2026 — July through September — months ahead of the original timeline. Core construction on the building, including mechanical, electrical, and plumbing (MEP) systems, has already been completed. Cleanroom MEP and secondary distribution systems are now the critical path items.
Mass production of 3nm chips at the Arizona facility is targeted for the second half of 2027, pulled forward from the original 2028 schedule. This will be the most advanced chipmaking node TSMC has ever brought to U.S. soil. After equipment install, it typically takes up to a year to qualify production lines and ramp output to volume levels.
Apple, Nvidia, AMD, and Qualcomm Drive Demand
The customers reserving capacity at TSMC's Arizona fabs read like a who's-who of U.S. chip design: Apple, Nvidia, AMD, and Qualcomm. All four companies are factoring geopolitical risk into their supply chain strategies, making U.S.-based advanced manufacturing increasingly attractive.
AI demand is the primary accelerant. TSMC CEO C.C. Wei cited strong AI-related customer demand as the reason for accelerating the U.S. production timeline during an October 2025 earnings call. With global 300mm fab equipment spending projected to hit $133 billion in 2026 — an 18% jump — and exceed $150 billion for the first time in 2027, according to SEMI's latest outlook, the capital flowing into equipment procurement is at historic levels.
Sub-2nm Angstrom-Class Nodes Next in Line
The fourth Arizona fab is earmarked for angstrom-class nodes — sub-2nm processes that represent the bleeding edge of semiconductor manufacturing. In Taiwan, TSMC is already moving on this front: equipment installation at its Hsinchu Fab 20 P3 and Kaohsiung Fab 22 P3 for sub-2nm production is beginning in Q3 2026 as well.
Sub-2nm fabrication requires gate-all-around (GAA) transistor architectures and backside power delivery networks. Both technologies demand entirely new process integration schemes, placing extreme requirements on deposition uniformity, etch selectivity, and film quality at the atomic scale.
What This Means for Plasma Processing and Thin Film Deposition
Each new fab TSMC fills with 3nm and sub-2nm tools represents billions of dollars in plasma etch and thin film deposition equipment. At the 3nm node, gate-all-around transistors require high-aspect-ratio etching of nanosheet stacks using advanced plasma chemistries. PECVD and ALD systems deposit the critical gate dielectrics, spacer films, and liner layers that define transistor performance.
The shift to backside power delivery at sub-2nm adds an entirely new deposition and etch workflow to the manufacturing sequence — wafers must be thinned, flipped, and patterned with new metal interconnects using PVD and CVD processes. This effectively doubles the number of deposition and etch steps compared to conventional front-side-only integration.
For the semiconductor equipment supply chain — plasma sources, sputtering targets, vacuum pumps, gas delivery systems, and process monitoring instrumentation — four fully booked U.S. fabs running the world's most advanced nodes translates to sustained, multi-year demand. Equipment vendors including Applied Materials, Lam Research, and Tokyo Electron are the primary beneficiaries, but the ripple effect extends deep into the component and subsystem supply chain that supports these tool makers.
